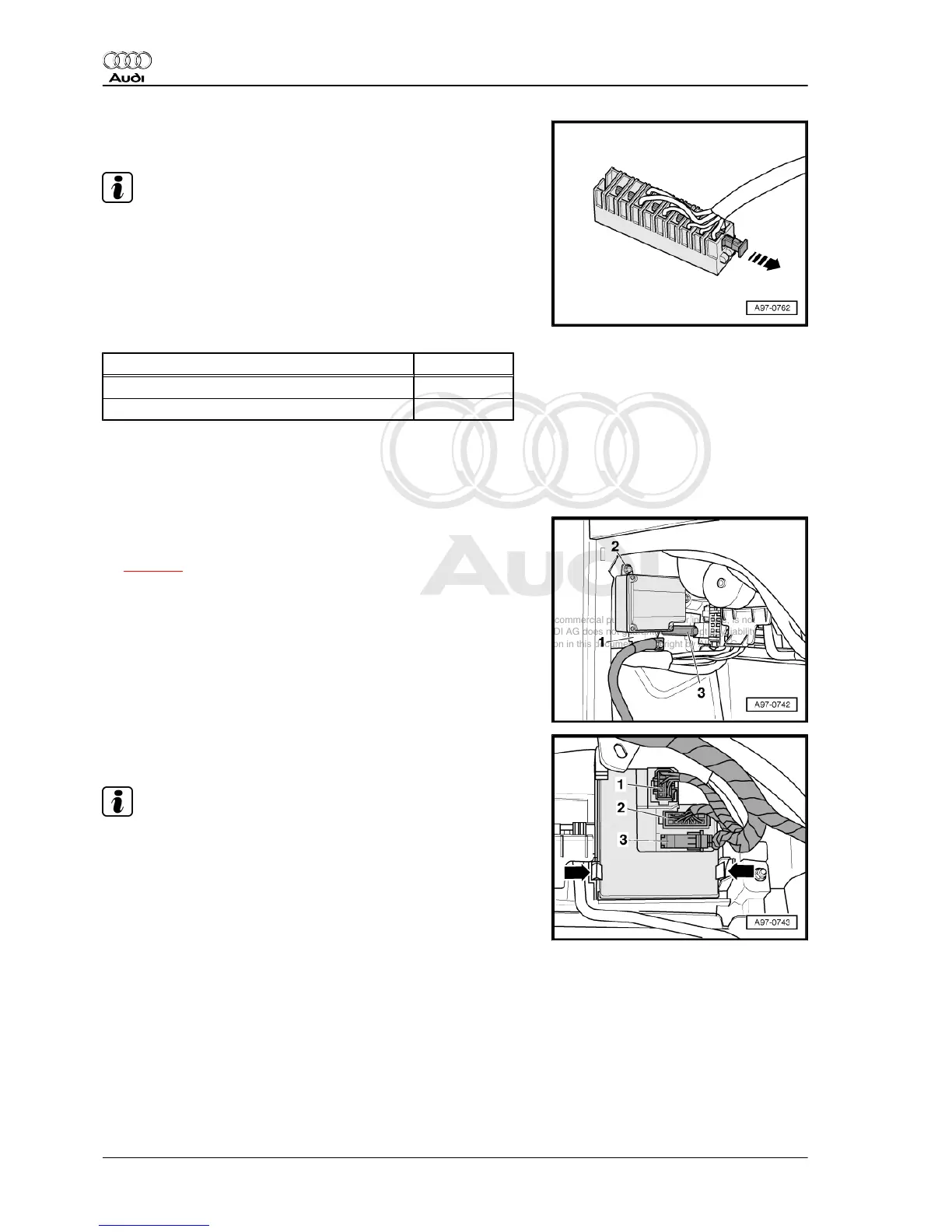

– Detach retaining strip for connectors -arrow- and take con‐
nectors out of plug-in socket.
Note
Exact contact assignment of fuse holder in luggage compartment
can be found in applicable current flow diagram ⇒ Current flow
diagrams, Electrical fault finding and Fitting locations.
Installing
Install in reverse order.
Tightening torques
Component Nm
Fuse holder to body 3
Positive wire to fuse holder 7.5
5.2 Removing and installing relay and fuse
holder in luggage compartment (right-
side)
Removing
– With ignition switched off, disconnect earth cable at battery
⇒ page 2 .
– Unscrew earth stud -3- and nut -2-.
– Detach energy management control unit - J644- .
– Unplug electrical connectors -1-.
– Release convenience system central control unit - J393-
-arrows- and detach it from relay and fuse holder.
Note
Electrical connectors remain connected.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
350 Rep. gr.97 - Wiring
