14 Outer tail light cluster - vehicles up to
08.2007
Observe notes on contact corrosion ⇒ page 125 .

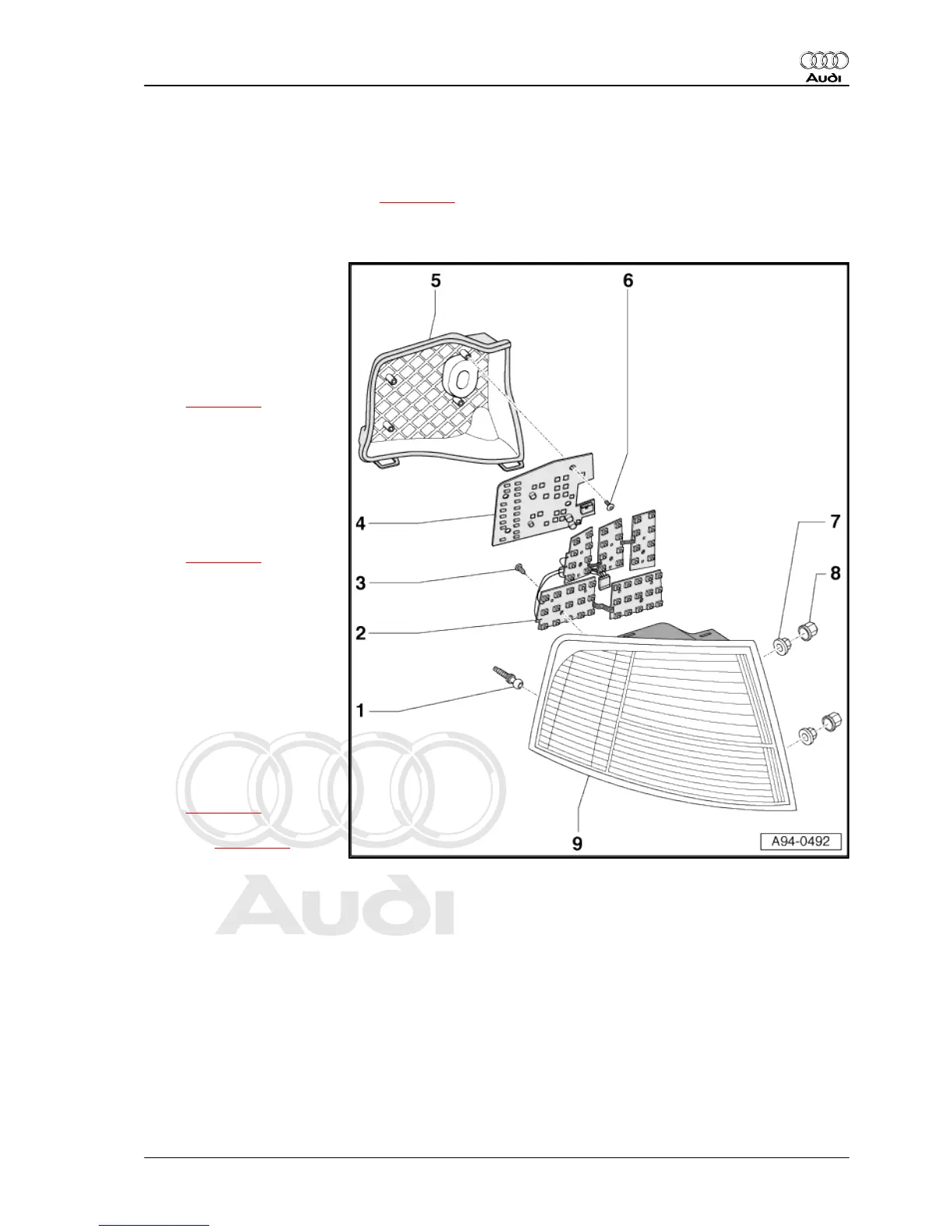

14.1 Outer tail light cluster - exploded view
1 - Stud
❑ Screwed into side panel
❑ For aligning tail light
cluster with body con‐
tour
2 - LED printed circuit boards
❑ Removing and installing
⇒ page 220
3 - 1 Nm
4 - Control unit
❑ Left tail light control unit
- J690-
❑ Right tail light control
unit - J691-
❑ Removing and installing
⇒ page 221
5 - Housing cover
❑ For outer tail light cluster
6 - 1 Nm
7 - Adjuster nut
❑ With sealing washer
❑ For aligning tail light
cluster with body con‐
tour
8 - 3 Nm
9 - Housing
❑ Removing and installing
⇒ page 220
❑ Aligning with body con‐
tour ⇒ page 221
Audi A8 2003 ➤
Electrical system - Edition 08.2014
14. Outer tail light cluster - vehicles up to 08.2007 219
