4 Data bus diagnostic interface
4.1 Data bus diagnostic interface - J533-
General description
The data bus diagnostic interface - J533- interlinks the various
data buses in the vehicle.
For example, it transfers data from the engine control unit (drive
system CAN bus) to the instrument cluster (instrument cluster
CAN bus).
Fault finding is performed via the “Guided Fault Finding” ⇒ Vehicle
diagnostic tester.

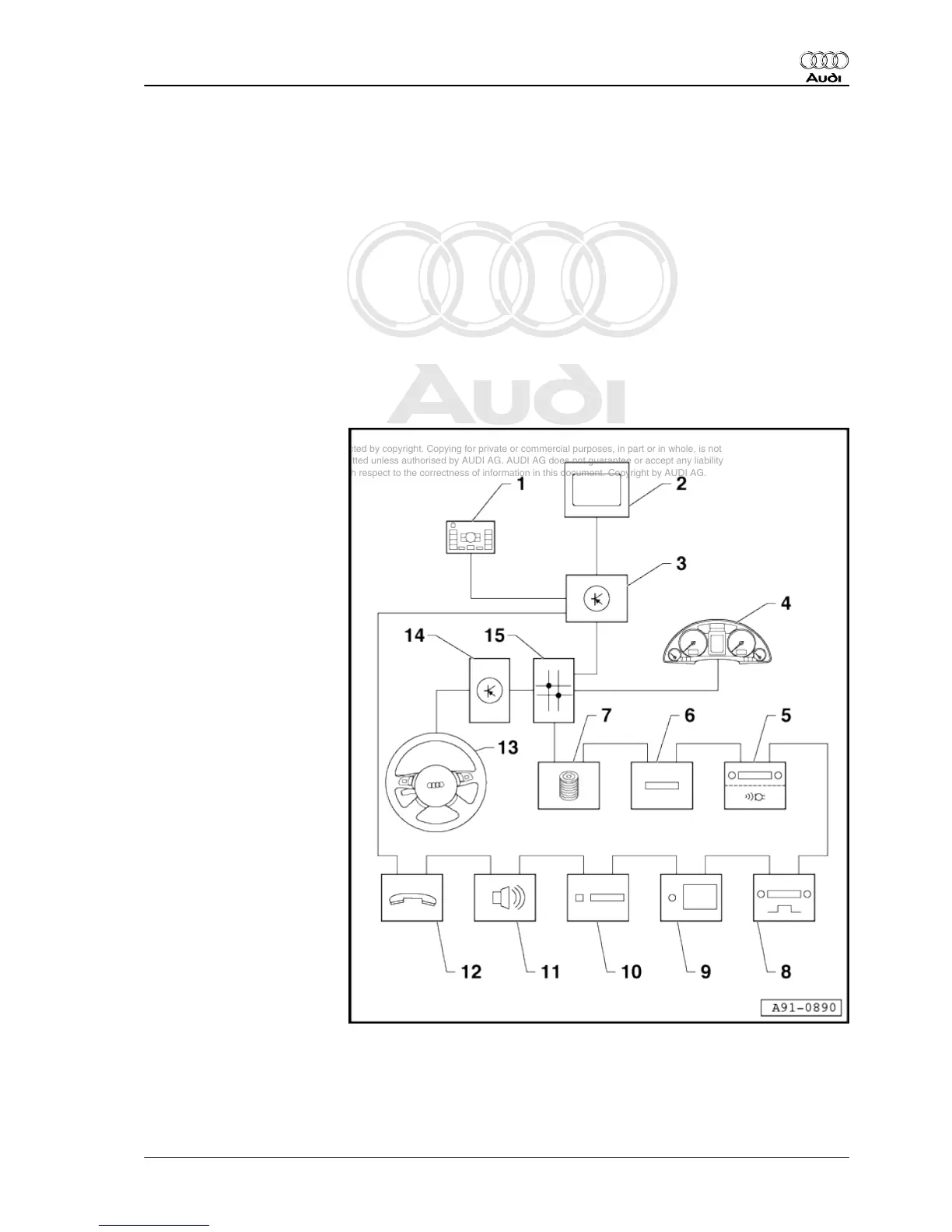

4.2 Data bus diagnostic interface - J533- - overview
1 - Multimedia system operat‐
ing unit - E380-
❑ In front centre console
2 - Display unit for front infor‐
mation display and operating
unit control unit - J685-
❑ In dash panel (centre)
3 - Control unit for front display
and information control panel -
J523-
❑ Behind glove box
4 - Control unit in dash panel
insert - J285-
❑ In instrument cluster
❑ In luggage compart‐
ment (left-side), behind
side trim
5 - Radio - R-
6 - Chip card reader control
unit - J676-
❑ In glove box
7 - Media player in position 1 -
R118-
❑ In glove box
8 - Digital radio - R147-
❑ In luggage compart‐
ment (left-side), behind
side trim
9 - TV tuner - R78-
❑ In luggage compart‐
ment (left-side), behind
side trim
10 - Navigation system with CD drive control unit - J401-
❑ In luggage compartment (left-side), behind side trim
11 - Digital sound package control unit - J525-
❑ In luggage compartment (left-side), behind side trim
Audi A8 2003 ➤
Electrical system - Edition 08.2014
4. Data bus diagnostic interface 107
