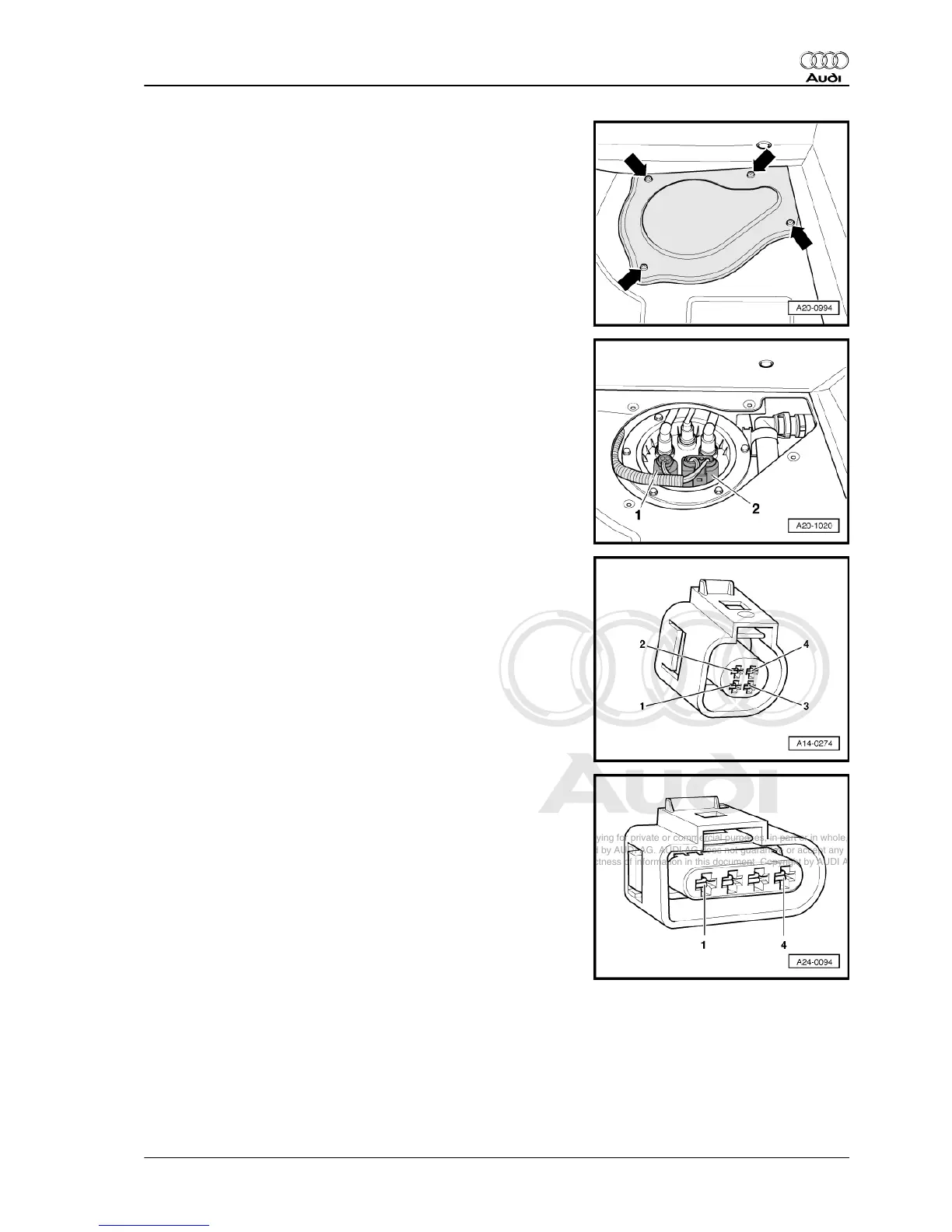

Fuel gauge sender, right-side:
Fuel gauge sender 2 - G169- and fuel gauge sender 4 - G393-
are accessible at front right of luggage compartment.
Preparations
– Remove lining for luggage compartment floor.
– Unscrew cover for sealing flange (right-side) -arrows-.
– Carefully release and unplug electrical connectors -1- and
-2- at sealing flange (right-side).
Pin assignment for 4-pin connector at fuel gauge sender 2 - G169-
1 - Not used
2 - Wiring between fuel gauge sender and instrument cluster
3 - Not used
4 - Earth for fuel gauge sender (sender earth)
Pin assignment for 4-pin connector at fuel gauge sender 4 - G393-
1 - Switched positive for electric fuel pump
2 - Wiring between fuel gauge sender and instrument cluster
3 - Earth for fuel gauge sender (sender earth)
4 - Earth for electric fuel pump
1.4 Pin assignment at coolant temperature
sender - G62-
Special tools and workshop equipment required
Audi A8 2003 ➤
Electrical system - Edition 08.2014
1. Instrument cluster 87
