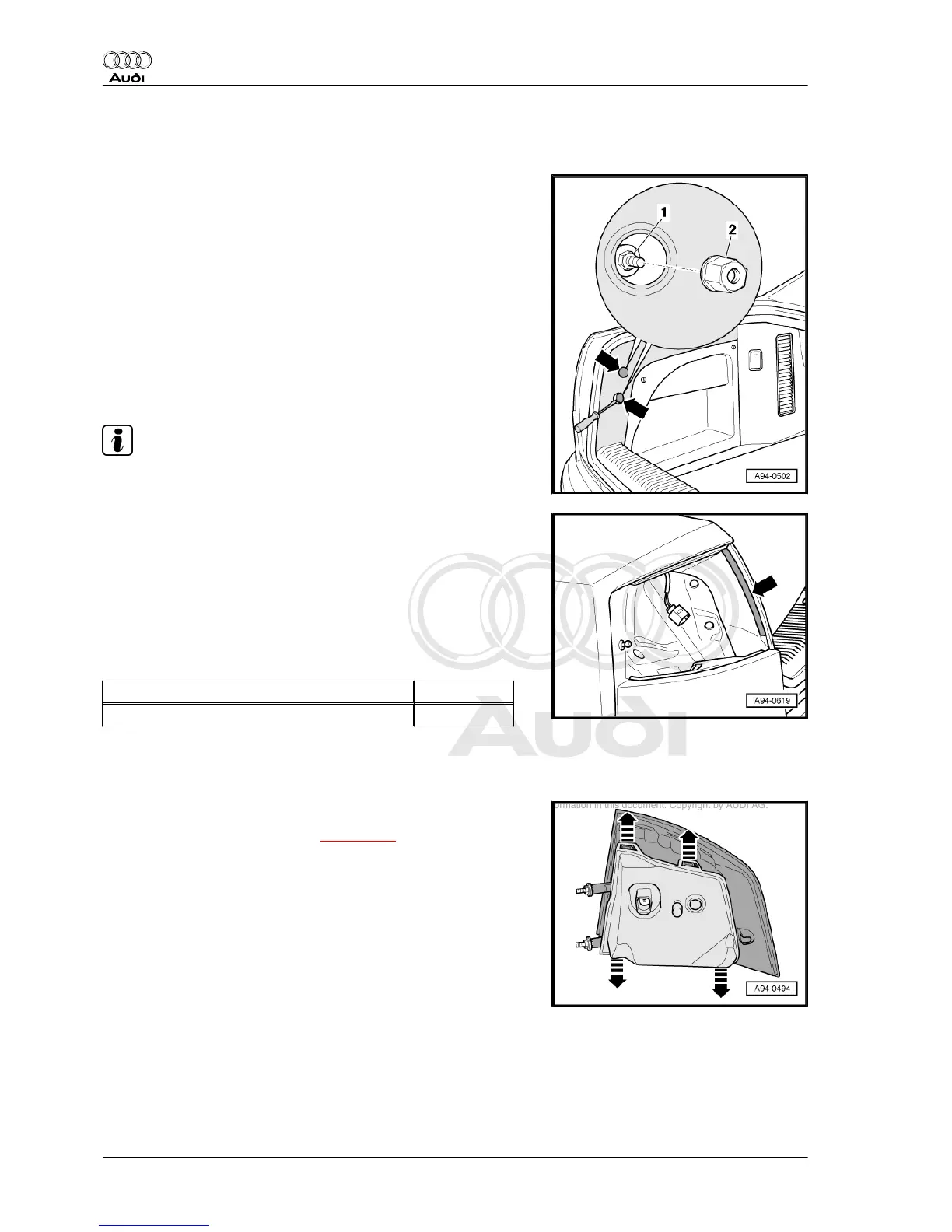

14.2 Removing and installing outer tail light
cluster
Removing
– Switch off ignition and take out ignition key.
– Turn light switch to position “0”.
– Unclip plugs -arrows- from luggage compartment lining.
– Unscrew nuts -2-.
– Slide tail light cluster outwards and disengage from retaining
pin at body.
– Unplug electrical connector at tail light cluster.
Installing
Installation is carried out in the reverse order; note the following:
Note
Renew adjuster nuts if sealing washers are damaged.
– Remove double-sided adhesive tape -arrow- at body cover
panel and tail light cluster.
– Attach new adhesive strip and remove protective film.
– Position tail light cluster on retaining pin from outside and
press towards centre of vehicle until it engages.
– Press body cover panel onto tail light cluster so that double-
sided adhesive tape becomes attached.
Tightening torque
Component Nm
Tail light to body 3
14.3 Removing and installing LED printed cir‐
cuit boards for tail light cluster
Removing
– Remove outer tail light cluster ⇒ page 220 .
– Press catches apart -arrows- and detach housing cover.
– Unplug electrical connector.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
220 Rep. gr.94 - Lights, bulbs, switches - exterior
