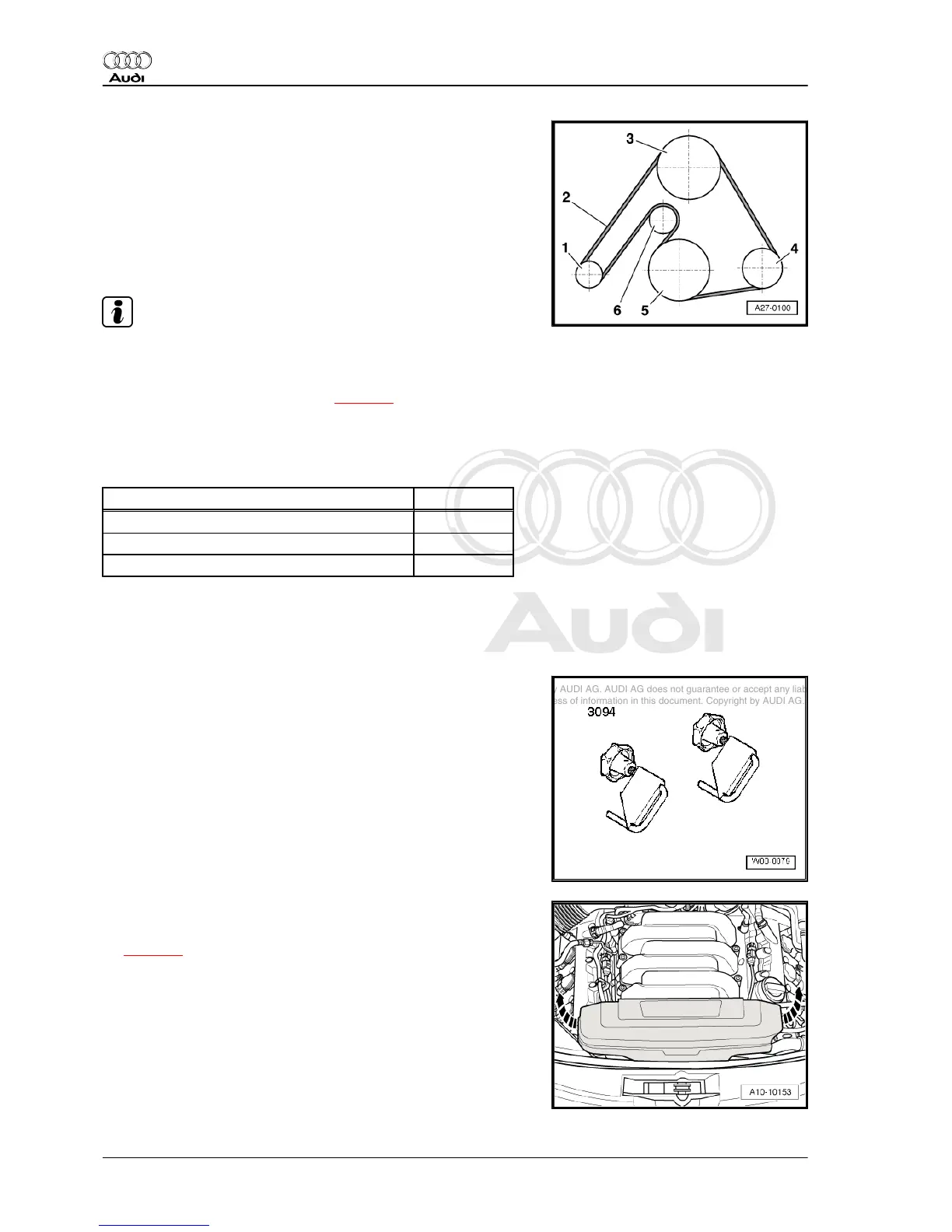

– Make sure poly V-belt -2- is properly seated and correctly
routed.
1 - Alternator
3 - Power steering pump
4 - Air conditioner compressor
5 - Crankshaft
6 - Tensioning roller
Note
When installing poly V-belt, make sure it is properly seated on
pulleys.
– Connect battery. Steps required ⇒ page 3 .
– Fill with coolant ⇒ Rep. gr. 19 .
– Start engine and check that belt runs properly.
Tightening torques
Component Nm
Alternator to engine 23
30/B+ terminal to alternator 16
ATF cooler to body 10
3.2 Vehicles with 2.8 ltr. and 3.2 ltr. FSI en‐
gine
Special tools and workshop equipment required
♦ Hose clamps up to 25 mm - 3094-
Removing
– With ignition switched off, disconnect earth cable at battery
⇒ page 2 .
– Pull off front engine cover panel -arrows-.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
14 Rep. gr.27 - Starter, current supply, CCS
