16 Outer tail light cluster - vehicles from
09.2007 onwards
Observe notes on contact corrosion ⇒ page 125 .

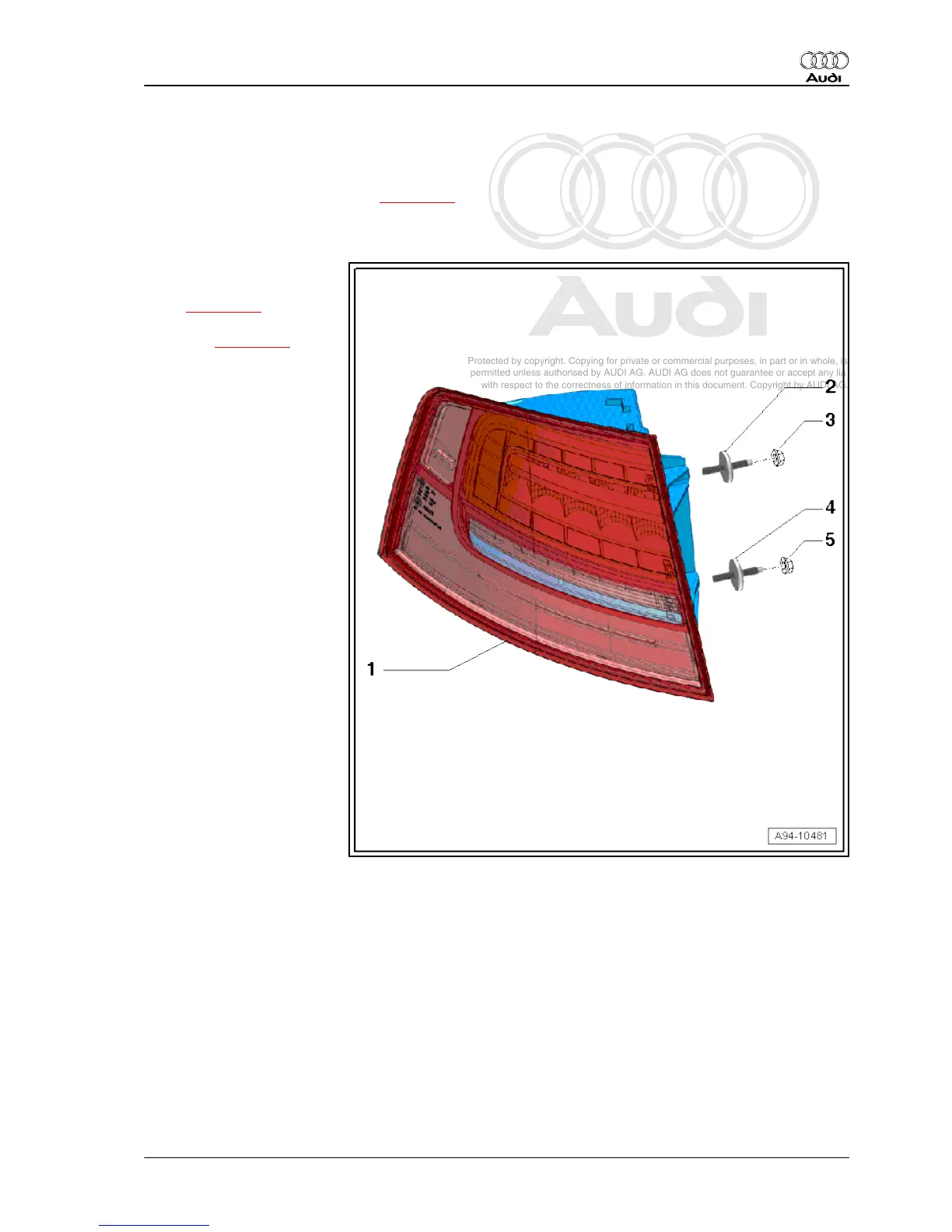

16.1 Outer tail light cluster - exploded view
1 - Tail light
❑ Removing and installing
⇒ page 228
❑ Aligning with body con‐
tour ⇒ page 228
2 - Stud
❑ Screwed into side panel
❑ For aligning tail light
cluster with body con‐
tour
3 - Centre hex stud with hexa‐
gon head
❑ With sealing washer
❑ For aligning tail light
cluster with body con‐
tour
4 - Nut
❑ 3 Nm
5 - Nut
❑ 3 Nm
6 - Centre hex stud with hexa‐
gon head
❑ With sealing washer
❑ For aligning tail light
cluster with body con‐
tour
Audi A8 2003 ➤
Electrical system - Edition 08.2014
16. Outer tail light cluster - vehicles from 09.2007 onwards 227
