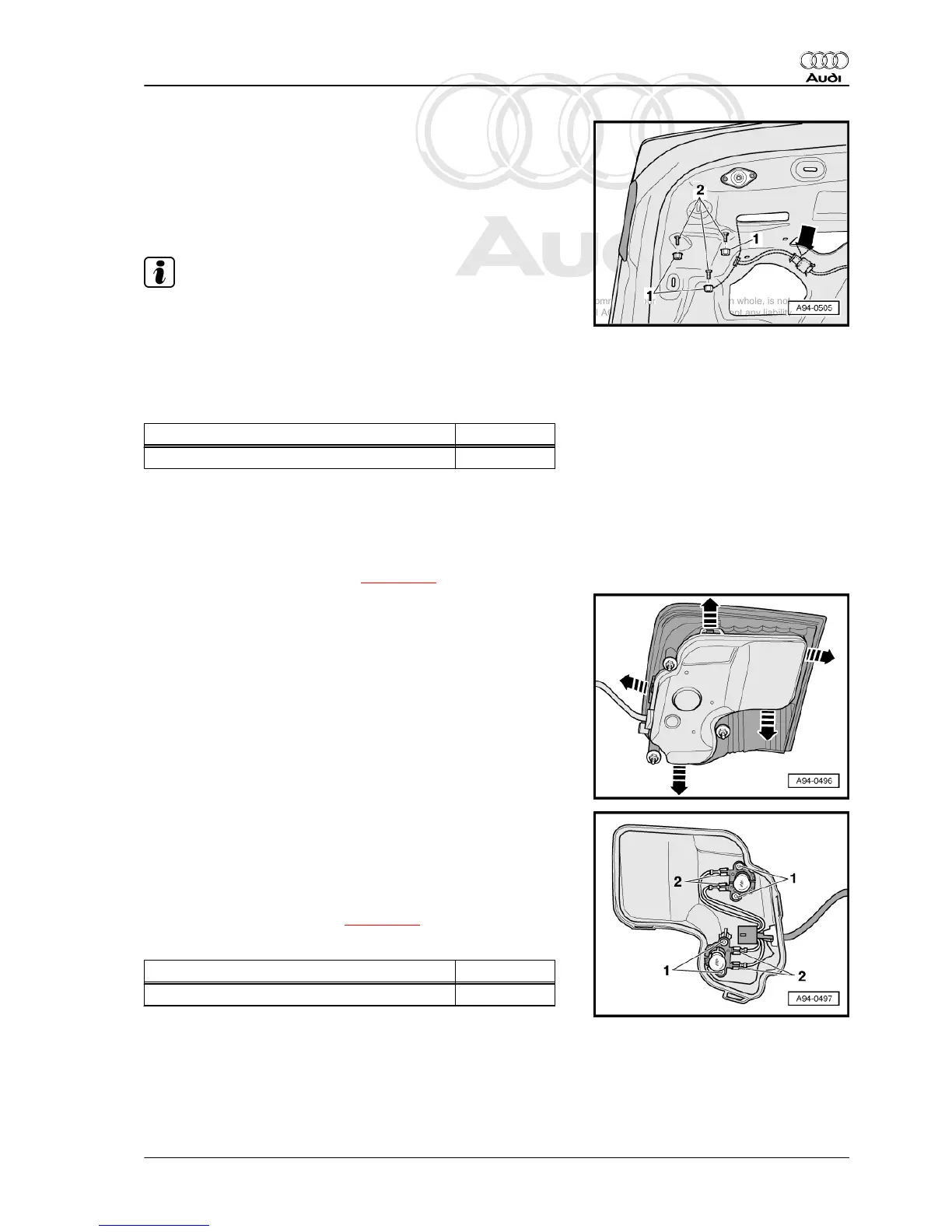

– Unplug electrical connector -arrow-.
– Unscrew nuts -1- and detach tail light cluster.
– If necessary, pull wire with grommet out of rear lid.
Installing
Installation is carried out in the reverse order; note the following:
Note
♦ Renew adjuster nuts if sealing washers are damaged.
♦ Check for proper sealing of grommet between rear lid and
wire.
– Install rear lid trim ⇒ Rep. gr. 70 .
Tightening torque
Component Nm
Tail light cluster to rear lid 3
17.3 Removing and installing bulb for revers‐
ing light and rear fog light
Removing
– Remove inner tail light cluster ⇒ page 230 .
– Press catches apart -arrows- and detach housing cover.
– Unplug electrical connectors -2-.
– Unscrew bolts -1- and detach bulb holder with bulb.
Installing
Installation is carried out in the reverse order; note the following:
– Install inner tail light cluster ⇒ page 230 .
Tightening torque
Component Nm
Bulb holder with bulb to housing cover 1
Audi A8 2003 ➤
Electrical system - Edition 08.2014
17. Inner tail light cluster - vehicles up to 08.2007 231
