18 Inner tail light cluster - USA vehicles
up to 08.2007
Observe notes on contact corrosion ⇒ page 125 .

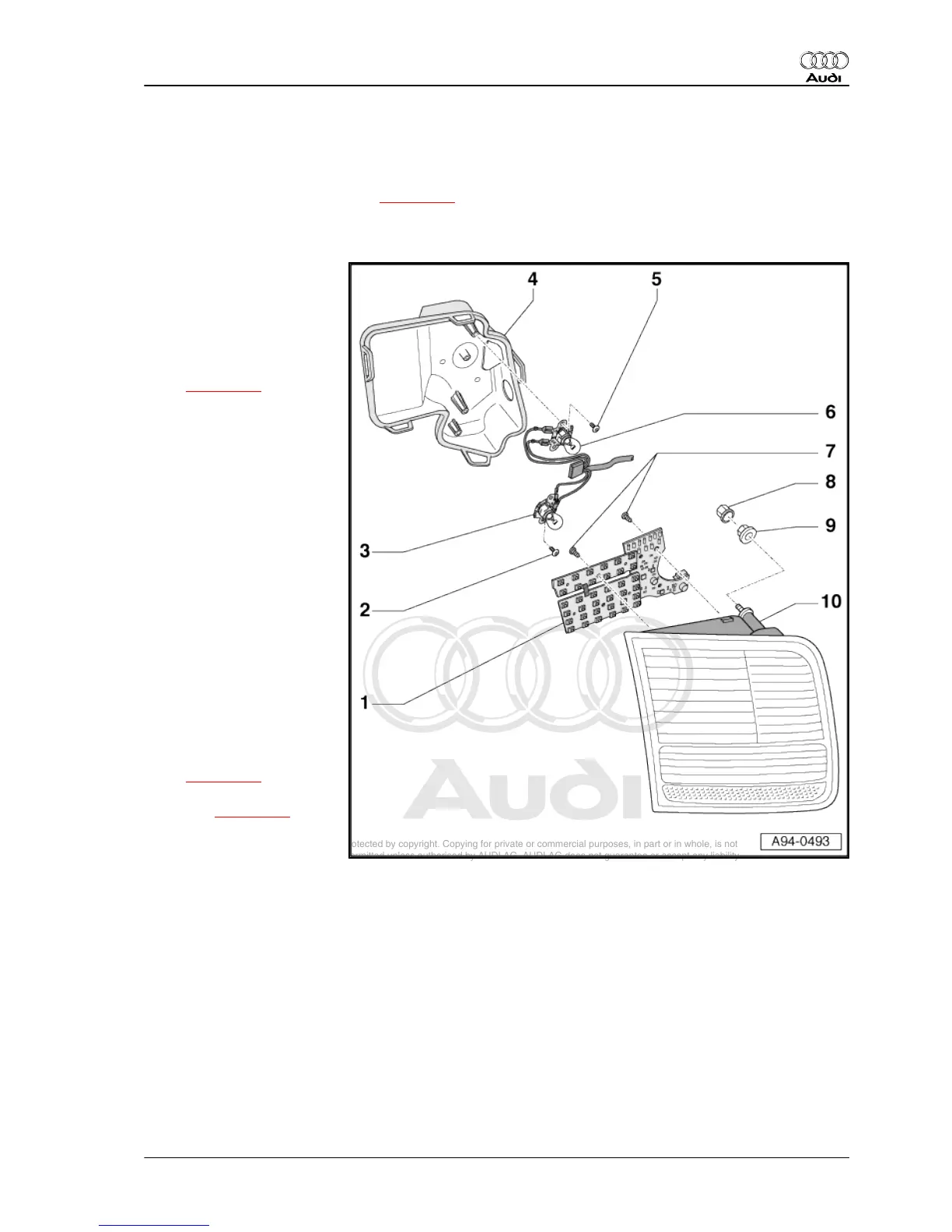

18.1 Inner tail light cluster - exploded view
1 - LED printed circuit boards
❑ With tail light control unit
for lights on left - J692-
or tail light control unit
for lights on right - J693-
in rear lid
❑ Removing and installing
⇒ page 235
2 - 1 Nm
3 - Reversing light bulb
❑ 12 V, 16 W
4 - Housing cover
❑ For inner tail light cluster
5 - 1 Nm
6 - Bulb for rear fog light
❑ 12 V, 16 W
7 - 1 Nm
8 - 3 Nm
9 - Adjuster nut
❑ With sealing washer
❑ For aligning tail light
cluster with body con‐
tour
10 - Tail light
❑ Removing and installing
⇒ page 233
❑ Aligning with body con‐
tour ⇒ page 235
18.2 Removing and installing inner tail light
cluster
Removing
– Switch off ignition and take out ignition key.
– Turn light switch to position “0”.
– Remove rear lid trim ⇒ Rep. gr. 70 .
