12 Entry light in exterior mirror - vehicles
from 09.2007 onwards

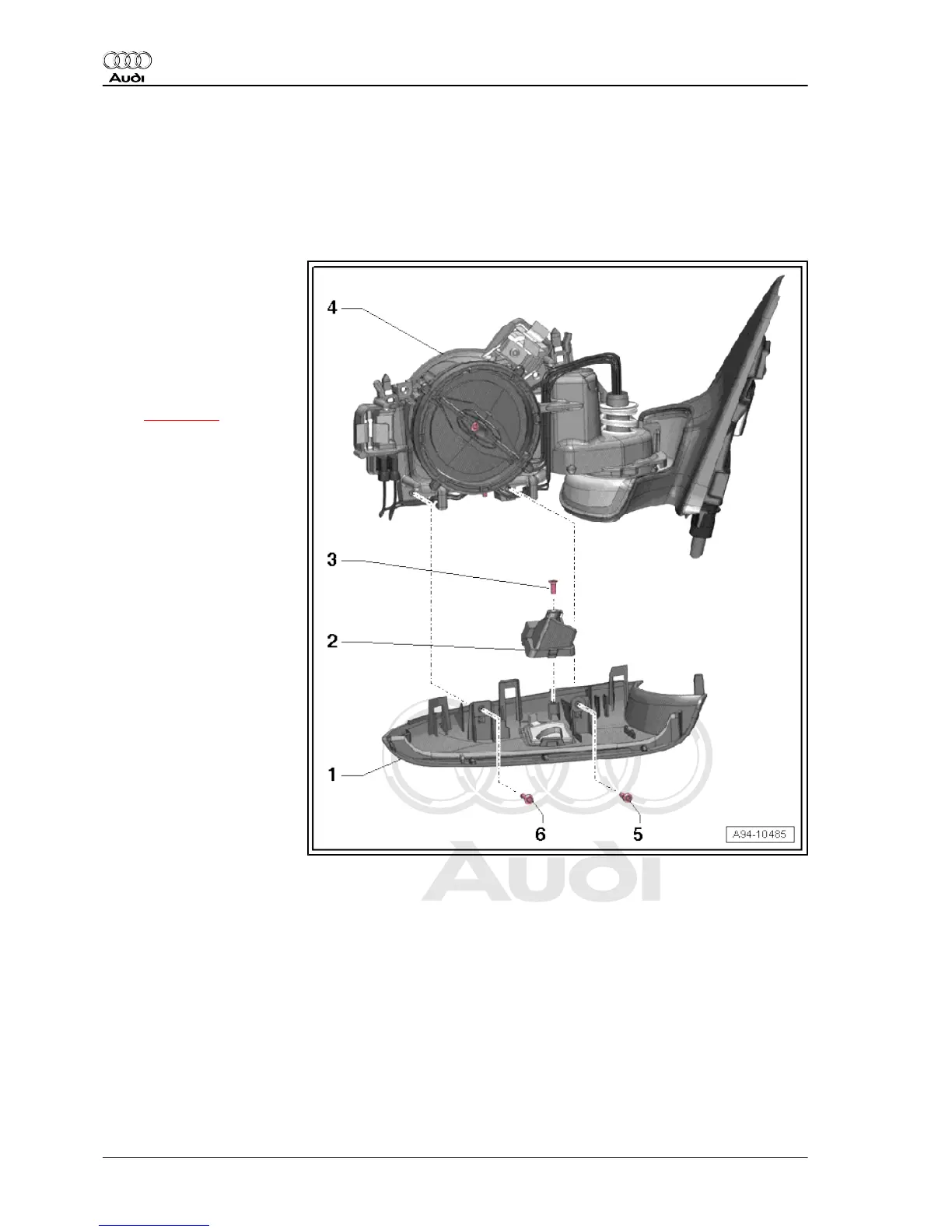

12.1 Entry light in exterior mirror - exploded view
1 - Cover (bottom)
2 - Entry light in exterior mirror
❑ Driver side entry light in
exterior mirror - W52-
❑ Front passenger side
entry light in exterior
mirror - W53-
❑ Removing and installing
⇒ page 214
3 - Bolt
❑ 1 Nm
4 - Mounting for mirror adjust‐
ment unit
5 - Bolt
❑ 1 Nm
6 - Bolt
❑ 1 Nm
12.2 Removing and installing entry light in ex‐
terior mirror -W52- / -W53-
Special tools and workshop equipment required
Audi A8 2003 ➤
Electrical system - Edition 08.2014
