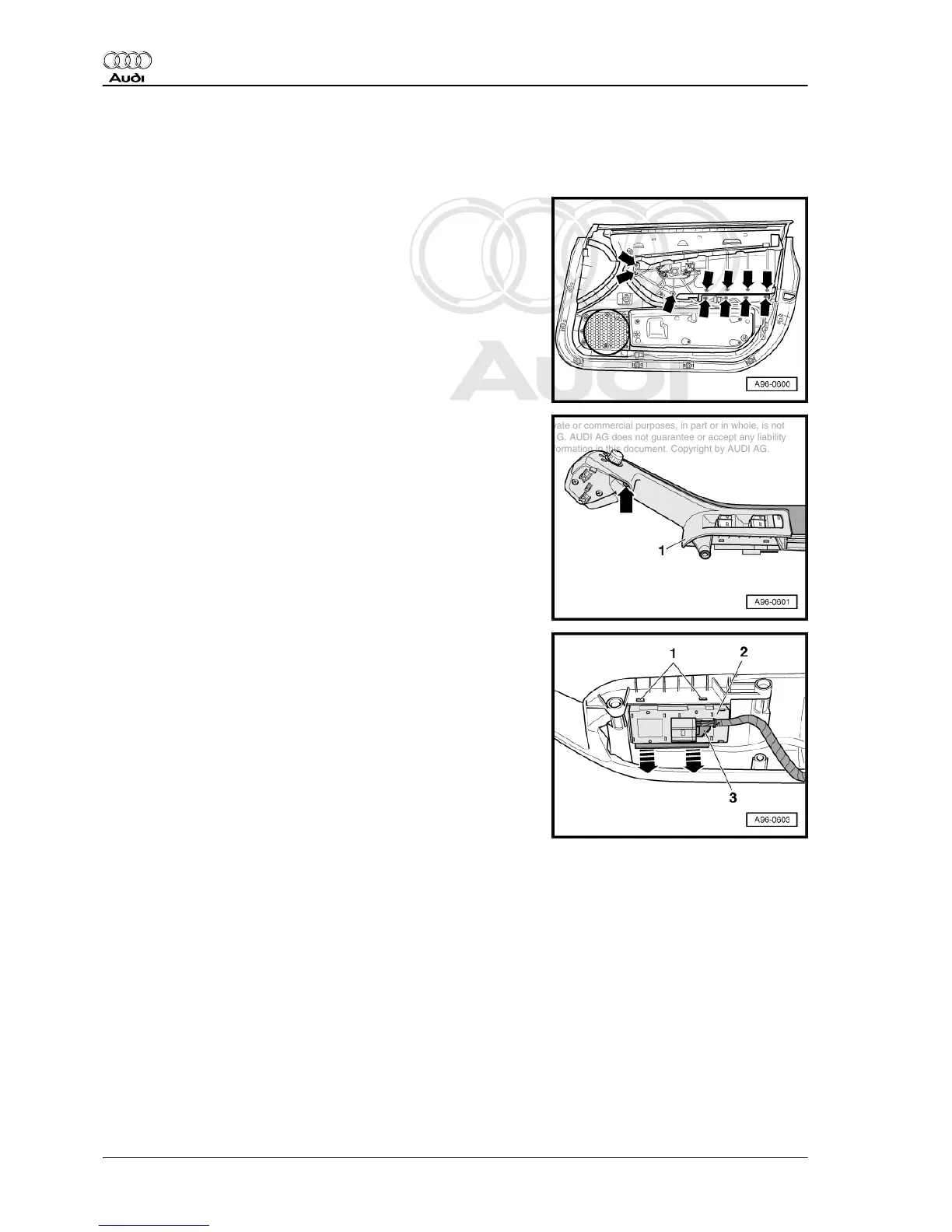

3.3 Removing and installing operating unit
for window regulator in driver door -
E512-
Removing
– Switch off ignition and take out ignition key.
– Remove door trim (front) ⇒ Rep. gr. 70 .
– Detach insulating mat from door trim.
– Unscrew bolts -arrows- and detach armrest.
– Unscrew bolt -arrow- and detach switch mounting -1- from
armrest.
– Release retaining hooks on armrest side by pressing retaining
element -arrows-.
– Use small screwdriver to carefully release retaining hooks
-1- on side of trim.
– Pull window regulator switch -2- downwards out of door trim.
– Unplug electrical connector -3- at window regulator switch.
Installing
Installation is carried out in the reverse order; note the following:
– Press switch into switch mounting until retaining hooks en‐
gage.
– Install door trim (front) ⇒ Rep. gr. 70 .
