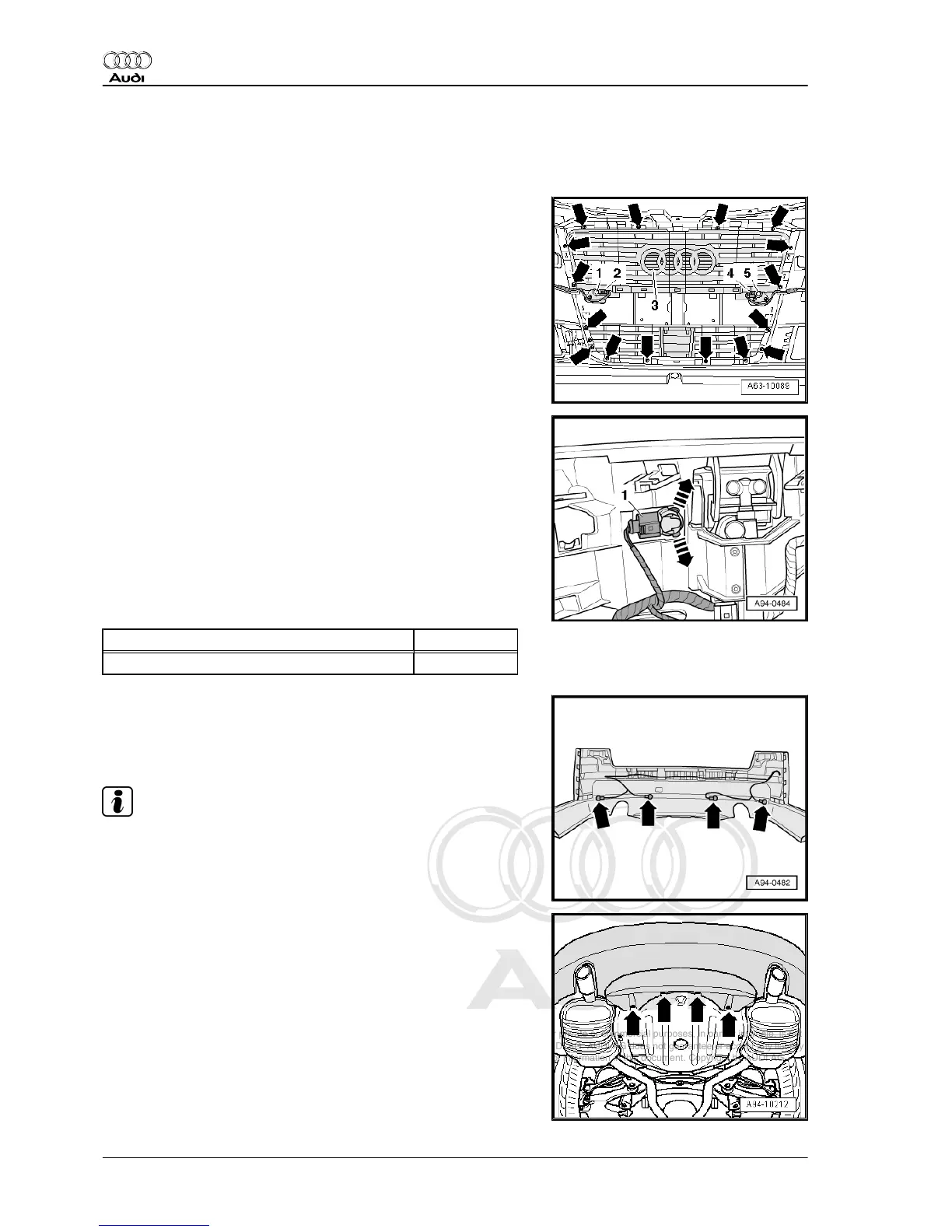

24.7 Removing and installing front parking
aid senders - vehicles with single-frame
radiator grille
Removing
– Remove bumper cover ⇒ Rep. gr. 63 .
Inner senders:
– Unplug electrical connectors -2- and -4-.
– Unscrew bolts -arrows-.
– Detach single-frame radiator grille -3- from bumper.
– Press parking aid senders -1- and -5- out of single-frame ra‐
diator grille.
Outer senders:
– Unplug electrical connector -1- at sender.
– Push both retainer tabs aside -arrows- and push out sender
inwards.
Installing
Installation is carried out in the reverse order; note the following:
Inner senders:
– Install bumper cover ⇒ Rep. gr. 63 .
Tightening torque
Component Nm
Single-frame radiator grille to bumper 2.3
24.8 Removing and installing rear parking aid
senders
♦ Fitting location: in bumper cover -arrows-.
Note
♦ Shown with bumper cover removed for illustration purposes.
♦ Senders can be taken out without removing rear bumper cov‐
er.
Removing
– Switch off ignition and take out ignition key.
– Unscrew bolts -arrows-.
– Reach behind the bumper cover.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
260 Rep. gr.94 - Lights, bulbs, switches - exterior
