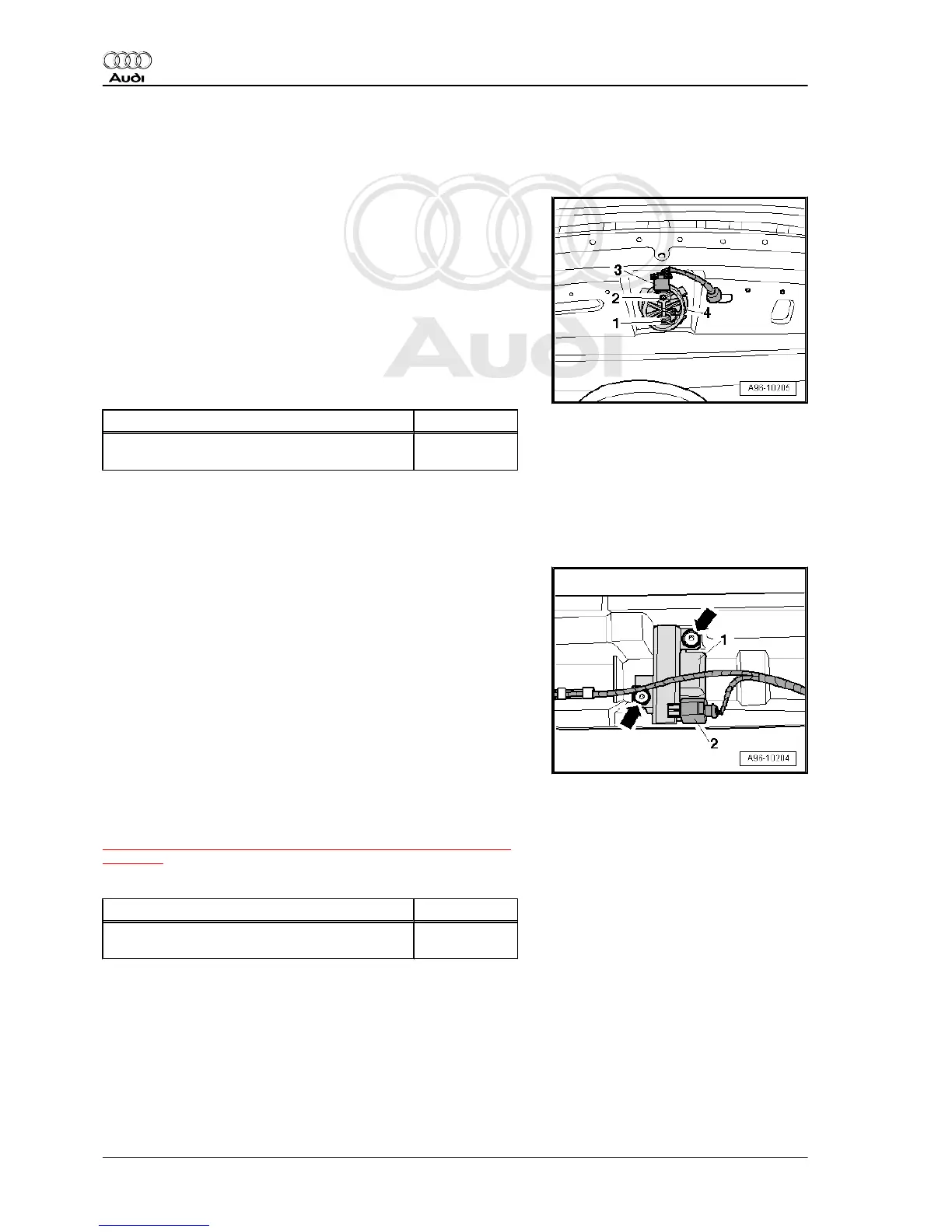

10.10 Removing and installing luggage com‐
partment aerial for entry and start au‐
thorisation - R137-
Removing
– Remove lower rear shelf trim ⇒ Rep. gr. 70 .
– Unplug electrical connector -3-.
– Remove bolts -1- and -2- and detach luggage compartment
aerial for entry and start authorisation -R137- -item 4-.
Installing
Installation is carried out in the reverse order; note the following:
– Install lower rear shelf trim ⇒ Rep. gr. 70 .
Tightening torque
Component Nm
Luggage compartment aerial for entry and start
authorisation - R137- to body
1.4
10.11 Removing and installing rear bumper
aerial for entry and start authorisation -
R136-
Removing
– Remove rear bumper cover ⇒ Rep. gr. 63 .
– Unplug electrical connector -2-.
– Unscrew bolts -arrows-.
– Take rear bumper aerial for entry and start authorisation -
R136- -item 1- out of bumper cover.
Installing
Installation is carried out in the reverse order; note the following:
– Install rear bumper cover ⇒ Rep. gr. 63 .
Vehicles with lane change assist:
Lane change assist control unit -J769- / -J770- must be recali‐
brated whenever bumper cover has been removed
⇒ “12.5 Calibrating lane change assist - test equipment layout”,
page 321 .
Tightening torque
Component Nm
Rear bumper aerial for entry and start authori‐
sation - R136- to rear bumper cover
2.5
