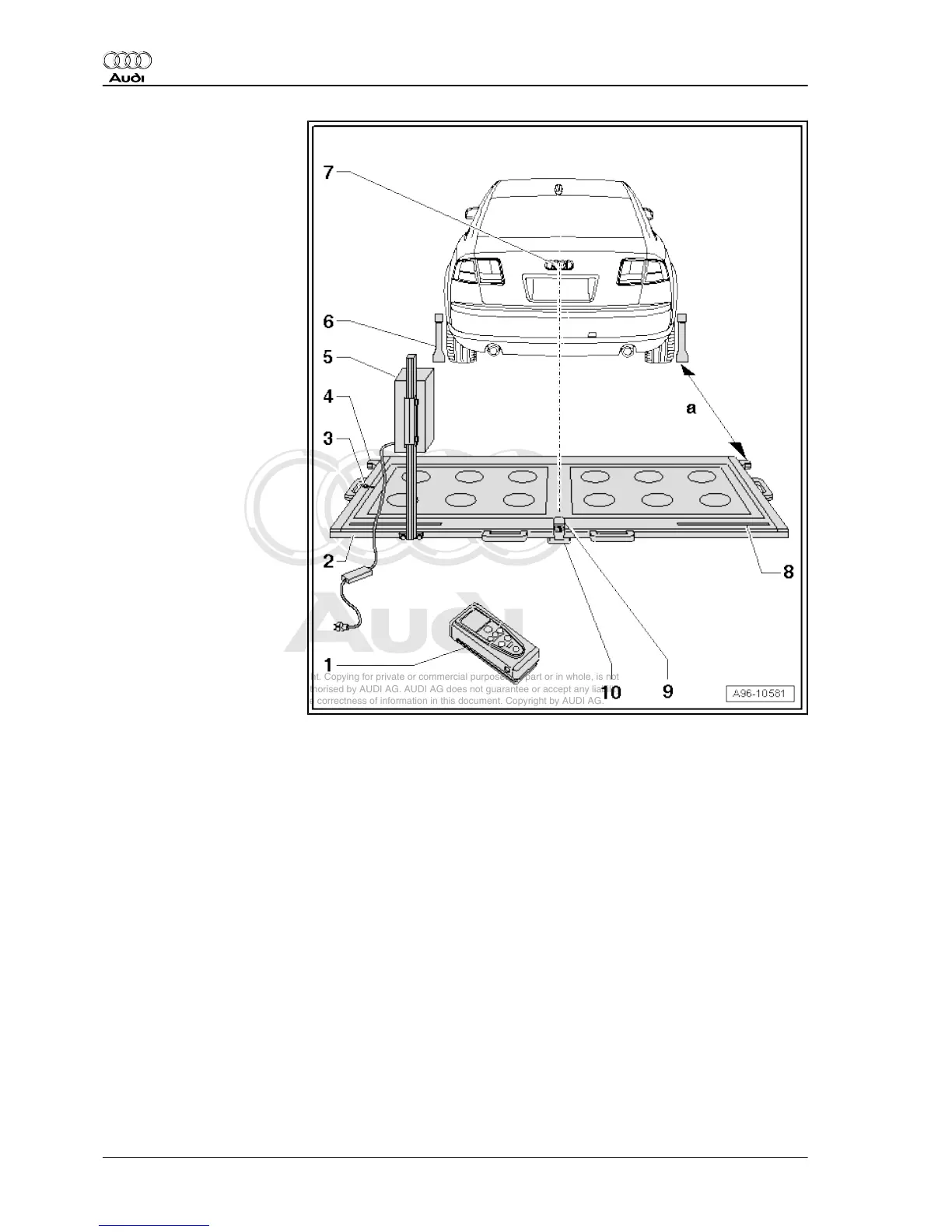

1 - Spacing laser -VAS 6350/2-
❑ For distance measure‐
ment
❑ For use refer to ⇒ oper‐
ating instructions
2 - Calibration unit - VAS 6350-
3 - Spirit level
❑ On calibration unit - VAS
6350-
❑ For checking horizontal
position of calibration
unit - VAS 6350-
4 - Locating bracket
❑ For mounting spacing
laser -VAS 6350/2- for
distance measurement
❑ Distance to wheel cen‐
tre mountings -VAS
6350/1- on rear wheels:
dimension
-a- = 1,700 ± 2 mm
5 - Calibration unit for lane
change assist -VAS 6350/4-
❑ Is moved from one side
of measuring field to
other during calibration
❑ Voltage supply must be
connected to bottom left
of calibration unit for
lane change assist (in
direction of travel)
6 - Wheel centre mounting -
VAS 6350/1-
❑ With wheel bolt adapter
(19 mm) and measuring paddle
7 - Logo
❑ Laser pointer is aligned with centre of logo
8 - Measuring scale
❑ For positioning the calibration unit for lane change assist -VAS 6350/4-
9 - Linear laser - VAS 6350/3-
❑ With “laser protection goggles”
❑ On calibration unit - VAS 6350-
❑ Switching on and off ⇒ Operating instructions
10 - Plastic foot
❑ 3x
❑ Adjustable, for aligning horizontal position of calibration unit - VAS 6350-
12.6 Calibrating lane change assist control
unit -J769- / -J770-
Special tools and workshop equipment required
Audi A8 2003 ➤
Electrical system - Edition 08.2014
322 Rep. gr.96 - Lights, bulbs, switches - interior
