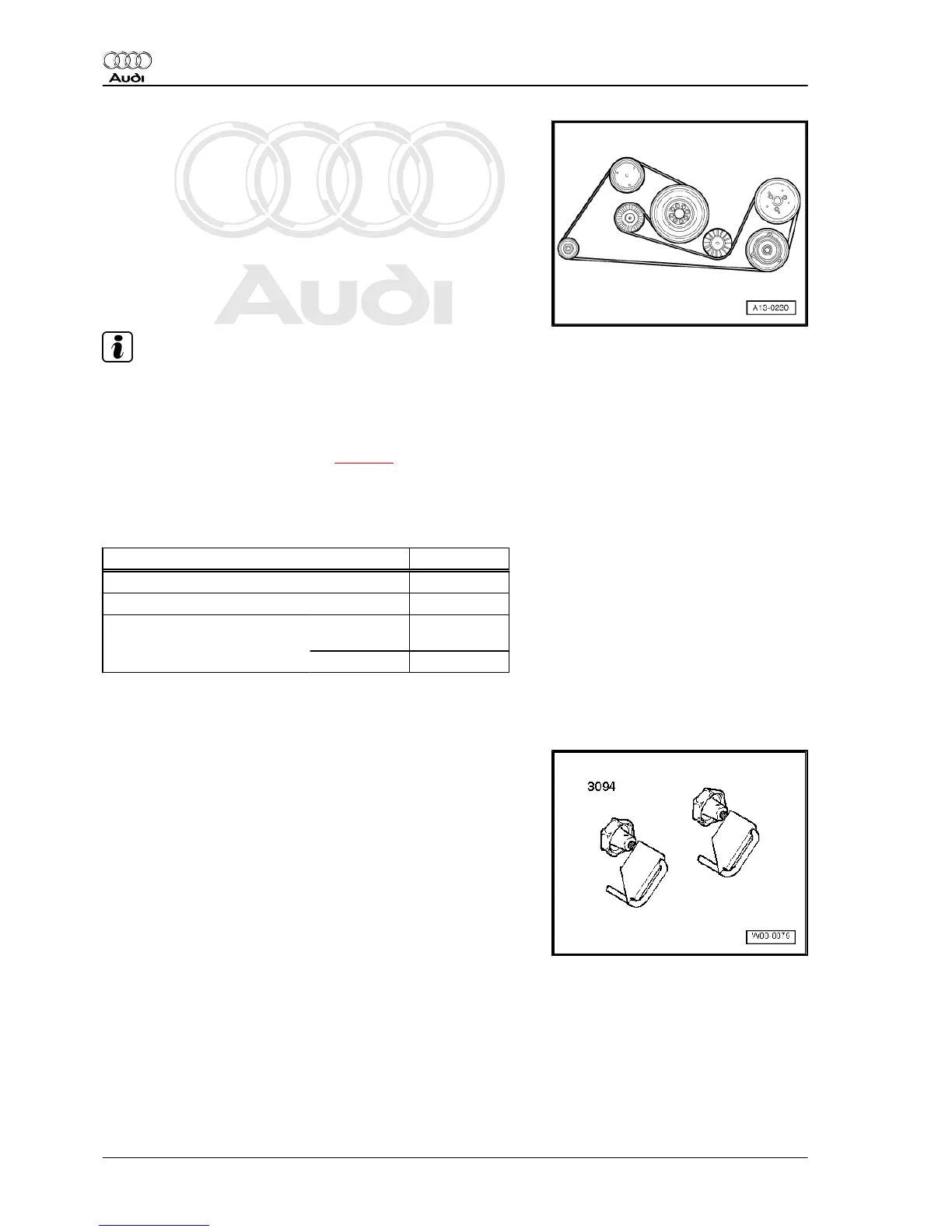

Fit poly V-belt onto pulleys in the following sequence:
1 - Upper idler roller
2 - Crankshaft
3 - Tensioner for poly V-belt
4 - Lower idler roller
5 - Power steering pump
6 - Air conditioner compressor
7 - Alternator
Note
When installing poly V-belt, make sure it is properly seated on
pulleys.
Install front right wheel housing liner ⇒ Rep. gr. 66 .
Connect battery. Steps required ⇒ page 3 .
Fill with coolant ⇒ Rep. gr. 19 .
Start engine and check that belt runs properly.
Tightening torques
Component Nm
Alternator to bracket for alternator 23
Terminal 30/B+ to alternator 16
Coolant pipes to: Oil filter brack‐
et
10
Alternator 10
3.4 Vehicles with 4.2 ltr. FSI engine
Special tools and workshop equipment required
Hose clamps up to 25 mm - 3094-
Audi A8 2003 ➤
Electrical system - Edition 08.2014
20 Rep. gr.27 - Starter, current supply, CCS
