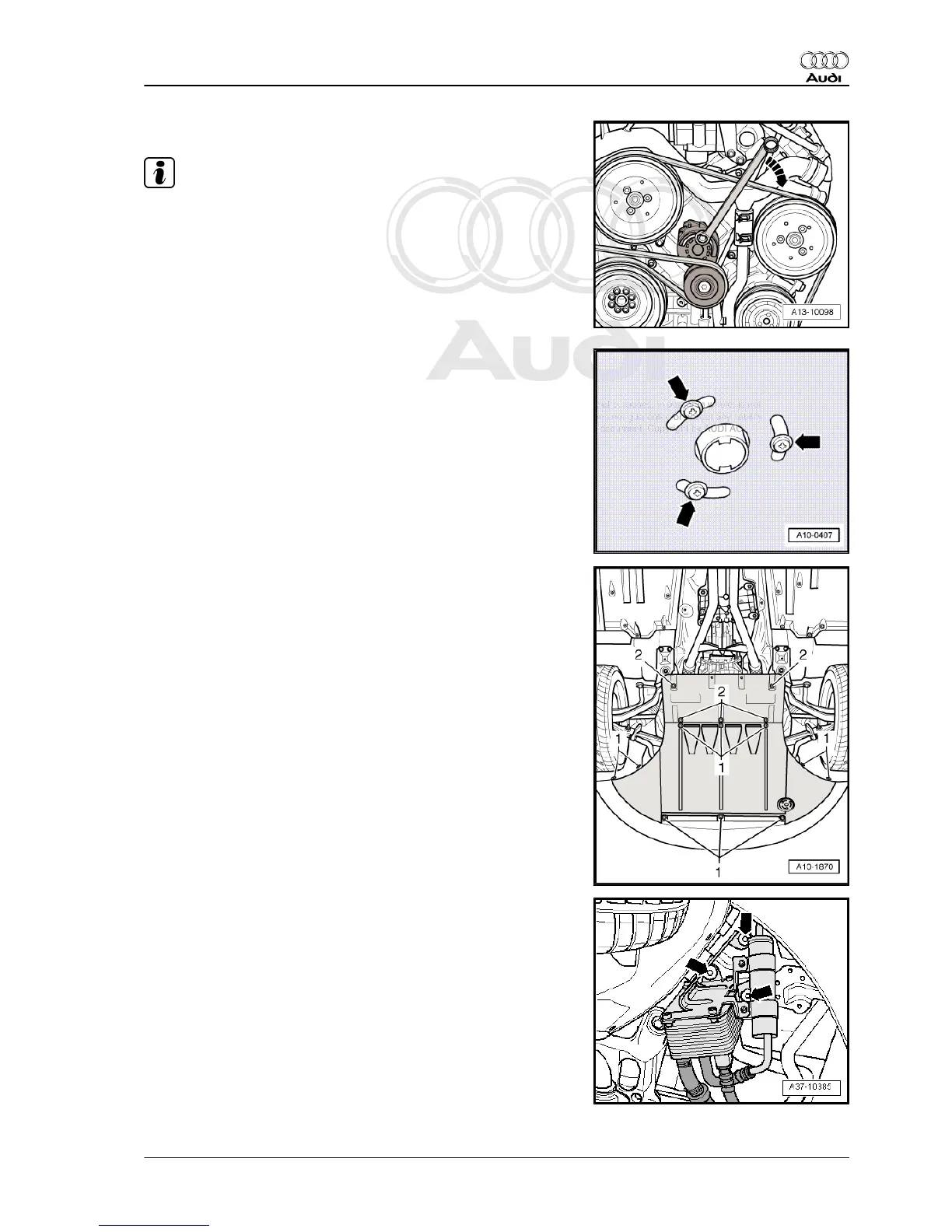

– Pull off bonnet seal at lock carrier and wing panel edges.
Note
Before removing, mark running direction of poly V-belt with chalk
or felt-tipped pen. If the poly V-belt runs in the opposite direction
when it is refitted, this can cause breakage.
– To slacken poly V-belt turn tensioner in direction of -arrow-.
– Remove poly V-belt from alternator pulley.
– Release pressure from tensioner.
– On vehicles with auxiliary heater, unscrew bolts -arrows- for
exhaust pipe of auxiliary/supplementary heater at noise insu‐
lation.
– Open quick-release fasteners -1- and detach front noise insu‐
lation. Leave rear noise insulation in position.
– Unscrew bolts -arrows-.
– Swivel aside ATF cooler with lines still connected.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
3. Removing and installing alternator 15
