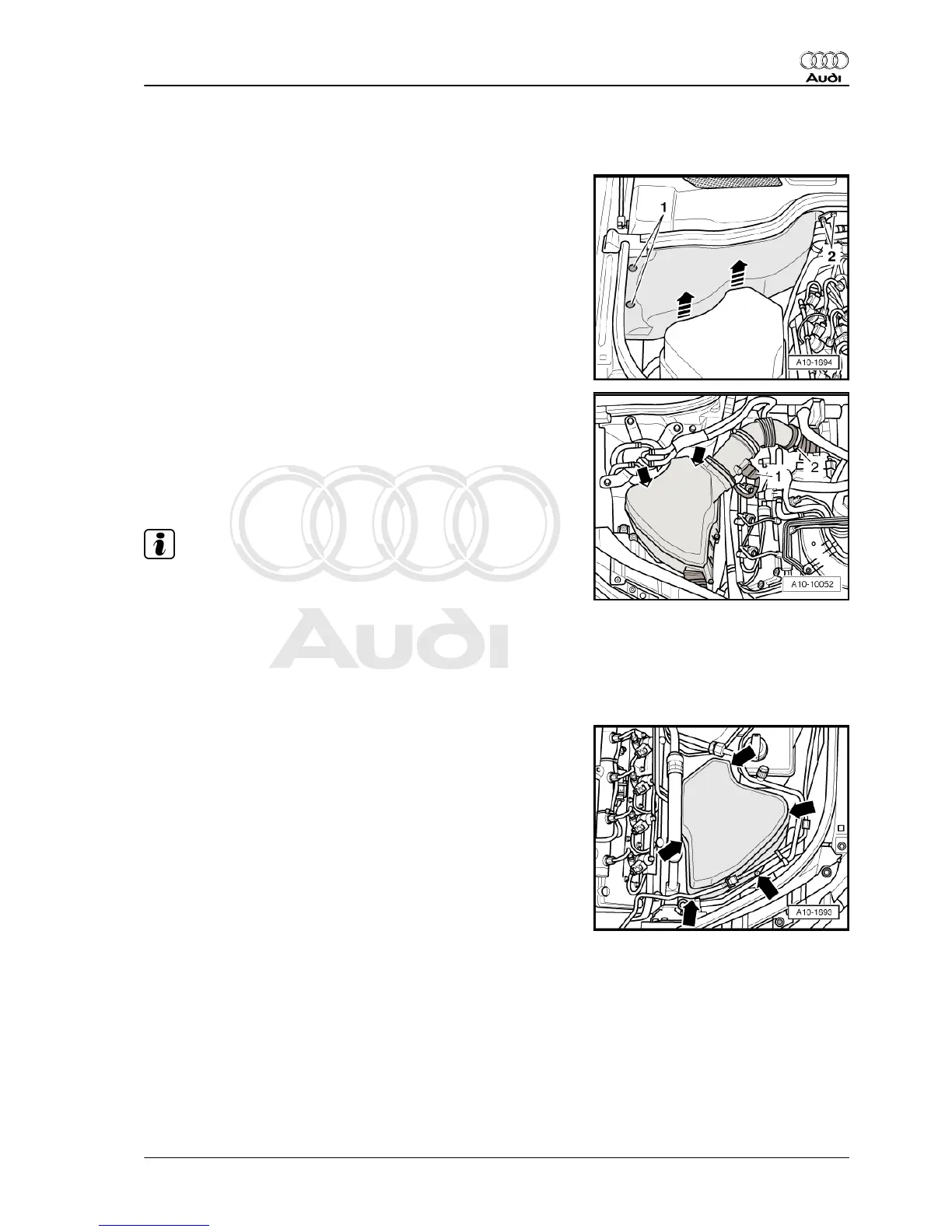

2.4.3 Removing air cleaner housing - vehicles
with 6-cyl. TDI engine
Procedure
– Remove cover for suspension strut turret (right-side) by de‐
taching spreader clip -1- and unscrewing bolt connection -2-.
– Pull cover out of retainers -arrows-.
– Detach air hose -2- at turbocharger.
– Unplug electrical connector at air mass meter - G70- .
– Unscrew bolts -arrows-.
– Take out air cleaner housing.
Installation is carried out in the reverse order; note the following:
Note
♦
Hose flanges and hoses for charge air system must be free
from oil and grease before fitting.
♦
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue .
2.4.4 Removing left air cleaner (top section) -
vehicles with 8-cyl. TDI engine
Procedure
– Unscrew bolts -arrows-.
– Detach left air cleaner (top section).
Install in reverse order.
