Removing
WARNING
When working on knee airbag, observe safety precautions for
working on airbags ⇒ Rep. gr. 69 .
– Remove driver's storage compartment ⇒ Rep. gr. 68 .
Note
Return ring with slip ring must be removed/installed in centre po‐
sition (wheels in straight ahead position).
– Move steering wheel down and to rear as far as possible,
making use of full range of steering column adjuster.
Caution
Contrary to the description under “Connecting and disconnect‐
ing the battery”, the battery MUST BE disconnected to remove
the airbag with the ignition switched on.
– Remove airbag unit ⇒ Rep. gr. 69 .
– Remove steering wheel ⇒ Rep. gr. 48 .

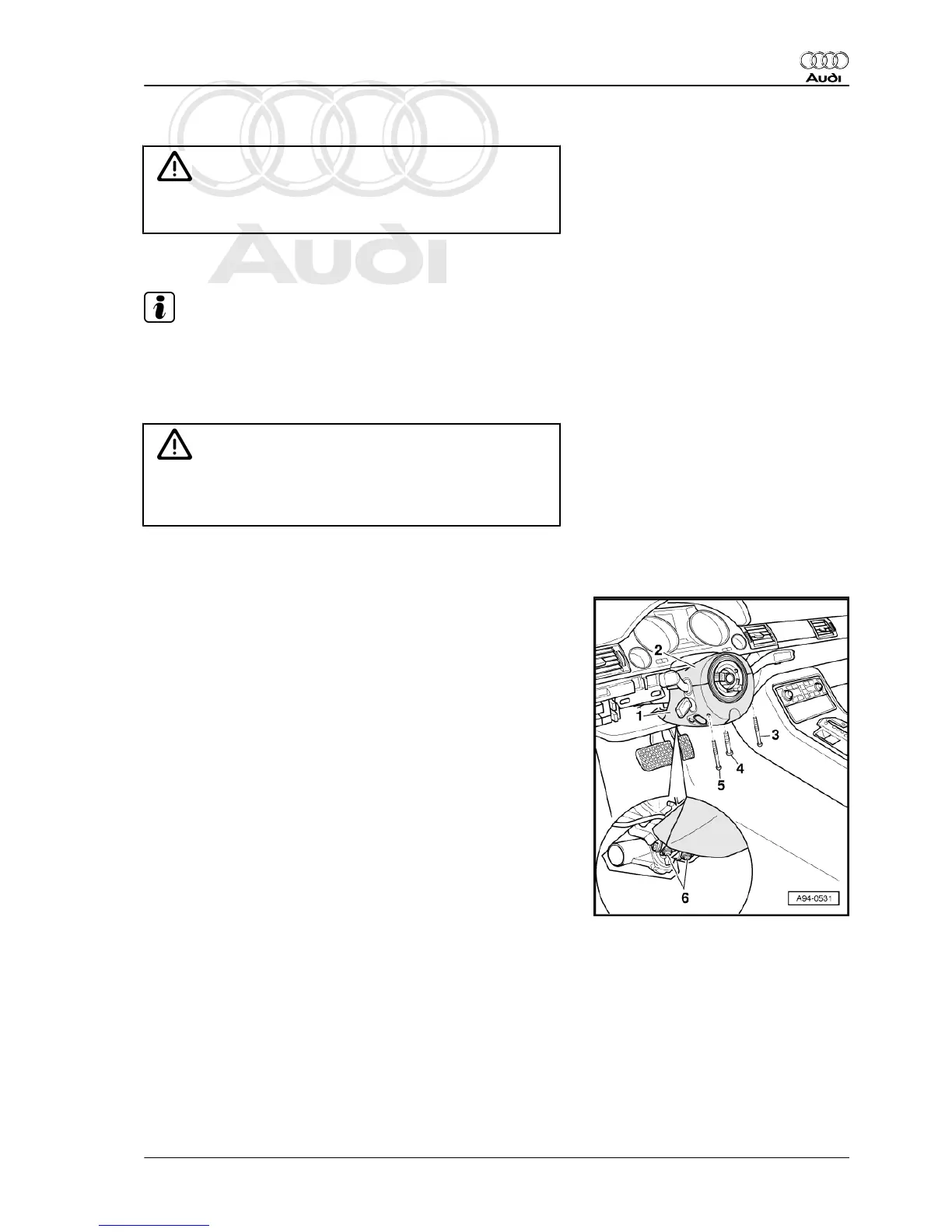

– Unscrew bolts -3- and -5- using special screwdriver T8 -
T40056 A- .
– Unscrew TORX bolts -6- and hexagon socket head bolt -4-.
– Separate upper trim -2- for steering column switch from lower
trim -1- and remove both sections.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
22. Steering column switch module 245
