Note

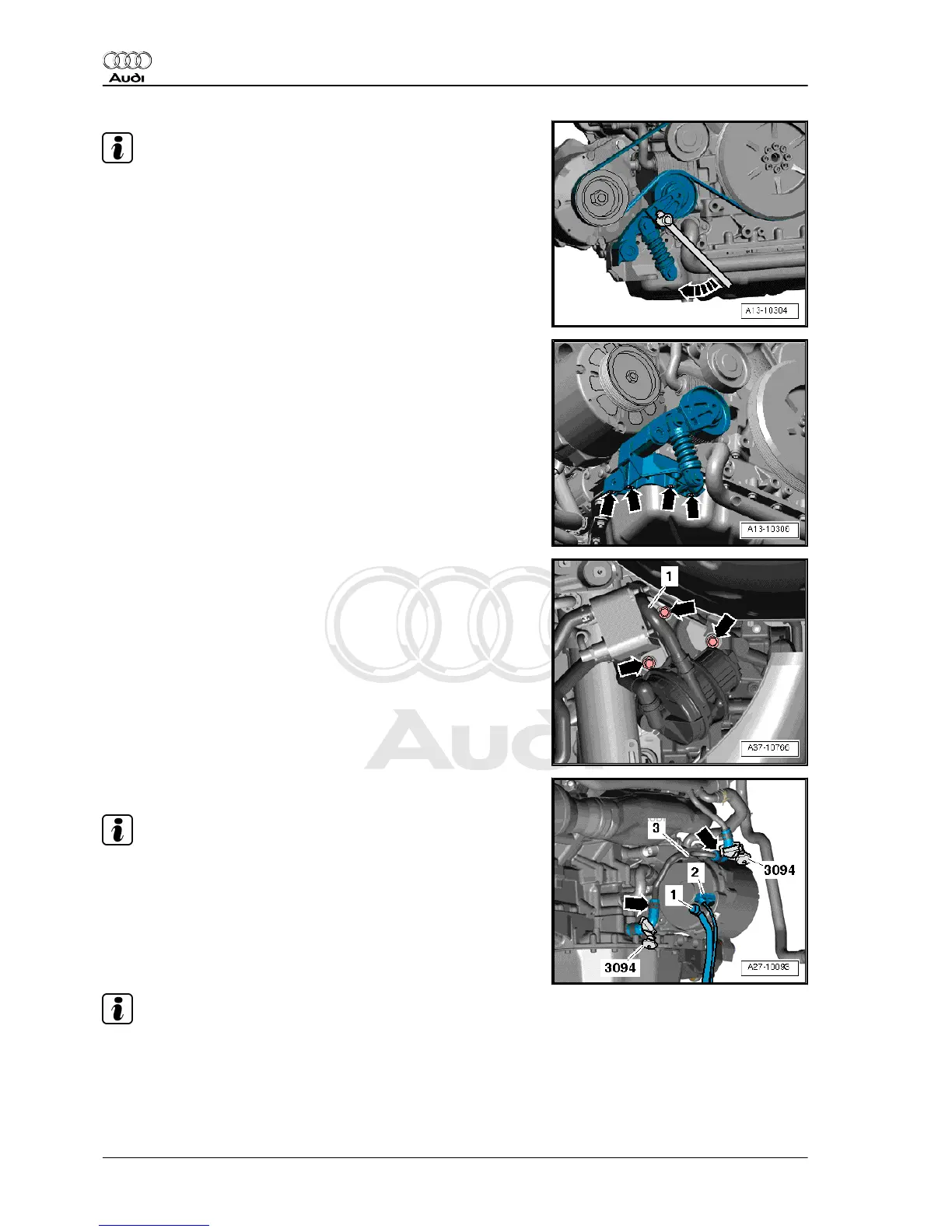

Before removing, mark running direction of poly V-belt with chalk
or felt-tipped pen. If the poly V-belt runs in the opposite direction
when it is refitted, this can cause breakage.
– To slacken poly V-belt, pivot tensioner in direction indicated
-arrow-.
– Remove poly V-belt from tensioner and release tensioner.
– Unscrew bolts -arrows-.
– Remove the poly V-belt tensioner from sump (top section).
– Move air hose -1- for secondary air clear at ATF cooler.
– Unscrew bolts -arrows- and detach ATF cooler.
– Tie ATF cooler with attached coolant hoses and ATF lines to
engine cross member.
– Clamp off coolant hoses -arrows- with hose clamps - 3094- .
Note
Place a cloth beneath the separating point to catch draining cool‐
ant.
– Detach coolant hoses -arrows- from coolant pipes.
– Unplug electrical connector -2- on alternator.
– Unscrew terminal 30/B+ -item 1-.
Note
Disregard -item 3-.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
22 Rep. gr.27 - Starter, current supply, CCS
