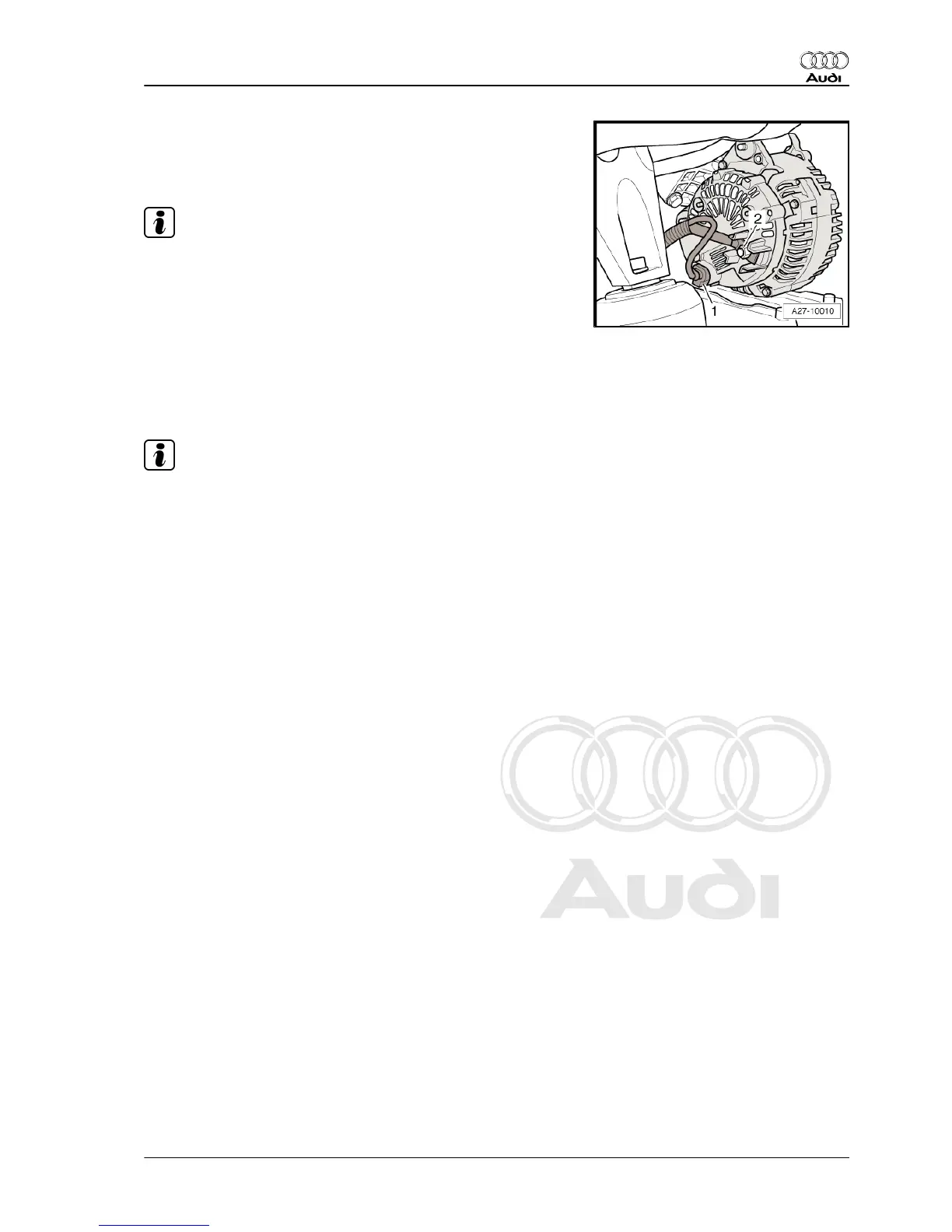

– Detach wires -1- and -2- at alternator.
Installing
Installation is carried out in the reverse order; note the following:
Note
♦
Renew self-locking nuts.
♦
Hose flanges and hoses for charge air system must be free
from oil and grease before fitting.
♦
Secure all hose connections with the correct type of hose clips
(same as original equipment) ⇒ Electronic parts catalogue .
♦
Refit all cable ties at the same locations when reinstalling.
– To facilitate positioning of alternator, drive back bushes for
securing bolts slightly.
Note
Stiff alternator mount bushes must be freed; otherwise the clamp‐
ing force of the bush will not be adequate even when the bolts are
tightened to the correct torque.
– Install charge air cooler (right-side) ⇒ Rep. gr. 21 .
Audi A8 2003 ➤
Electrical system - Edition 08.2014
3. Removing and installing alternator 33
