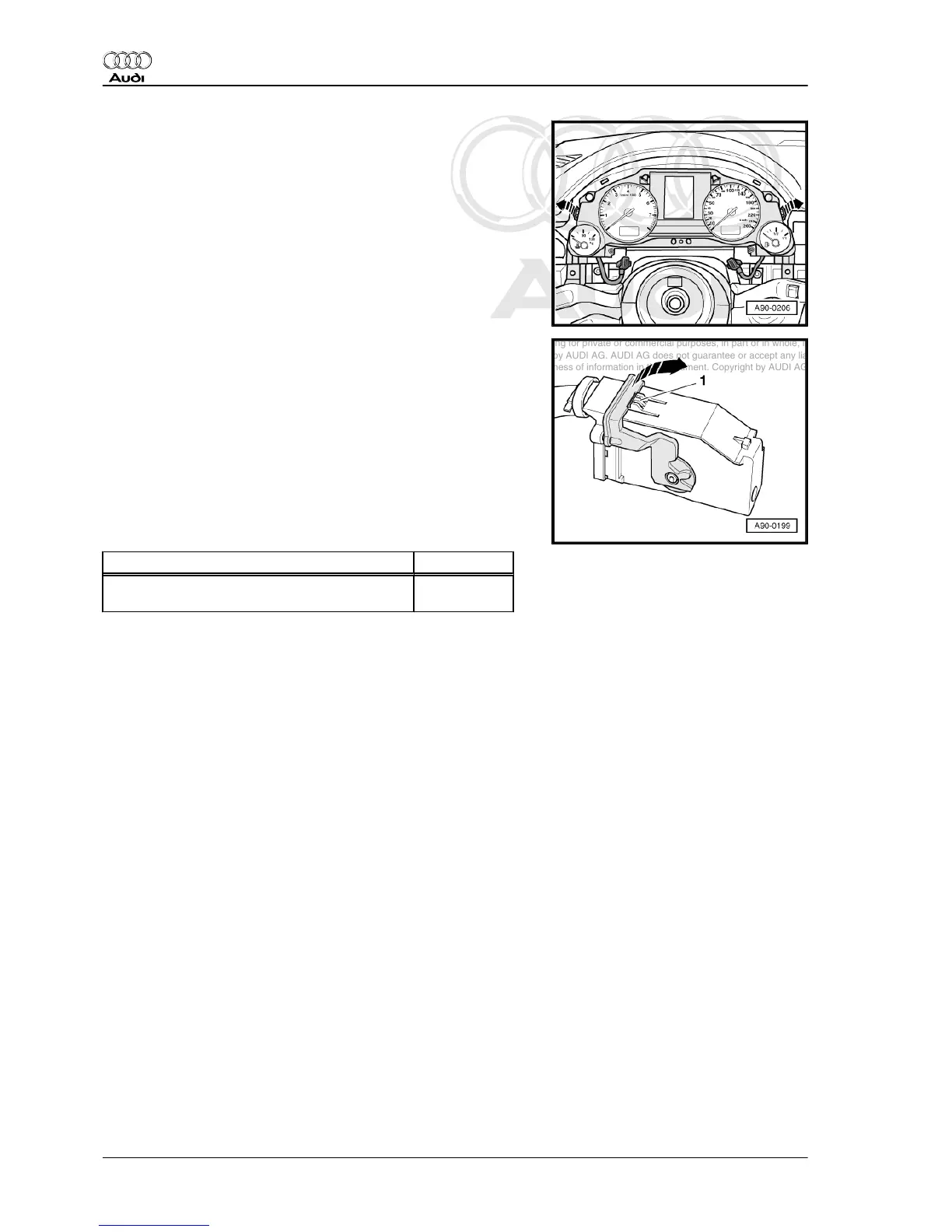

– Release retaining clips -arrows- (left and right) and pull instru‐
ment cluster slightly away from dash panel.
– Swivel instrument cluster to rear and pull out towards driver's
side between steering wheel and dash panel.
– Press catch -1-, turn retainer in direction of arrow and unplug
connector.
– Detach instrument cluster.
Installing
Installation is carried out in the reverse order; note the following:
– Install dash panel vents ⇒ Rep. gr. 70 .
– Install trim panel with switch unit (right-side) ⇒ Rep. gr. 70 .
– Install trim panel (left-side) ⇒ Rep. gr. 70 .
Tightening torque
Component Nm
Instrument cluster/trim for instrument cluster to
dash panel
3
Audi A8 2003 ➤
Electrical system - Edition 08.2014
84 Rep. gr.90 - Gauges, instruments
