892-0000010B OM
91

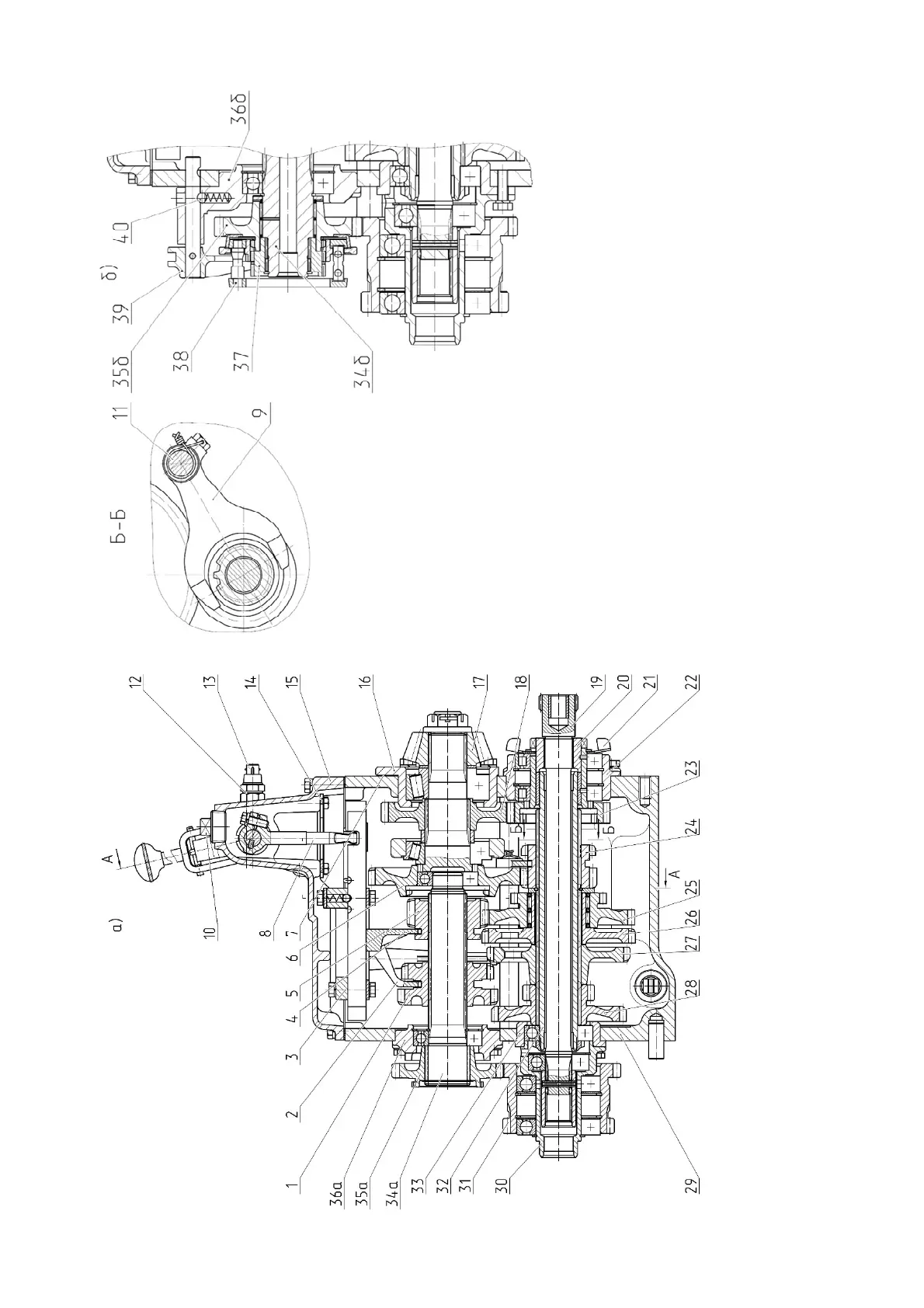

1 - drive gear of 4th and 5th speeds; 2 – yoke of 4th and 5th speeds; 3 - yoke body; 4 – yoke of 3rd and 6th speeds; 5 - drive gear of 3rd and 6th speeds; 6 - secondary shaft
with driven gear of 1st pass of range gear unit; 7 – adjusting shims; 8 – gearbox control lever; 9 – yoke of gear unit; 10 - filler plug; 11 - shaft; 12 - adjusting shims; 13 - engine
start-up lock sensor; 14 - limiting plate; 15 – gearbox control cover; 16 - cage; 17 - drive gear of main gear and pinion of rear axle; 18 - driven gear of 2
nd
pass of range gear
unit; 19 - inner shaft; 20 - seat with bronze bushing; 21 - impeller; 22 - cage; 23 - drive gear of 1st pass of range gear unit; 24 - drive gear of 1st pass of range gear unit; 25 -
intermediate gear; 26 - driven gear of 3rd and 6th speeds; 27 - driven gear of 4th and 7th speeds; 28 - driven gear of 5th and 8th speeds and reverse speeds; 29 – gearbox
housing; 30 - seat; 31 - intermediate gear; 32 - intermediate shaft; 33 - cage; 34a and 34b - primary shaft; 35a - driven gear of reducing gear unit; 35b - driven gear of reverse
gear unit; 36a and 36b - cage; 37 - bushing; 38 - synchronizer; 39 - shaft with yoke; 40 - retainer ball.
Figure 3.3.1 Gearbox
