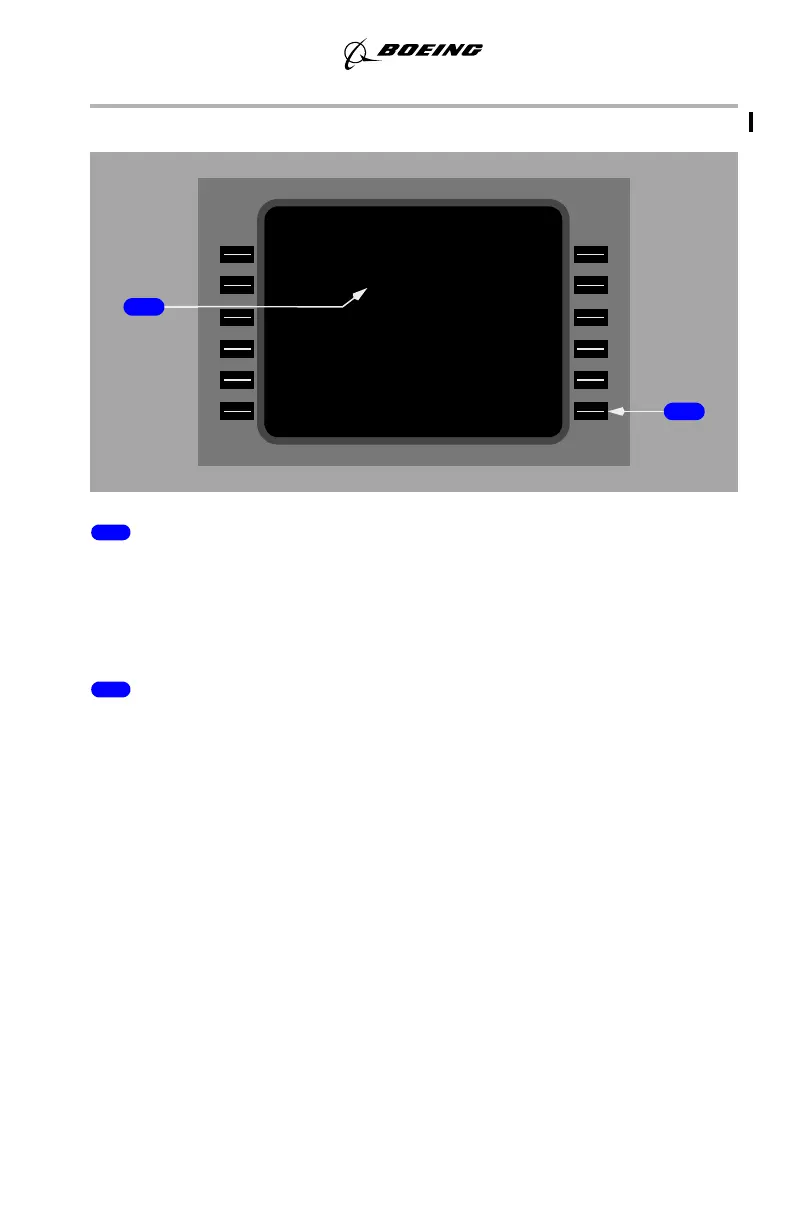

1 Map Center Label (<CTR>)
Identifies the waypoint around which the map display is centered.
Whenever the EFIS Mode selector is positioned to PLAN, the label is
automatically displayed for the first geographically fixed waypoint on the
displayed page.
2 STEP
Displayed on a CDU when PLAN is selected on the associated EFIS control panel.
Replaces the RTE DATA or ACTIVATE prompt.
Push – moves the map center label to the next geographically fixed waypoint in
the route.
