737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Navigation Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.41.10 D6-27370-866-EGP

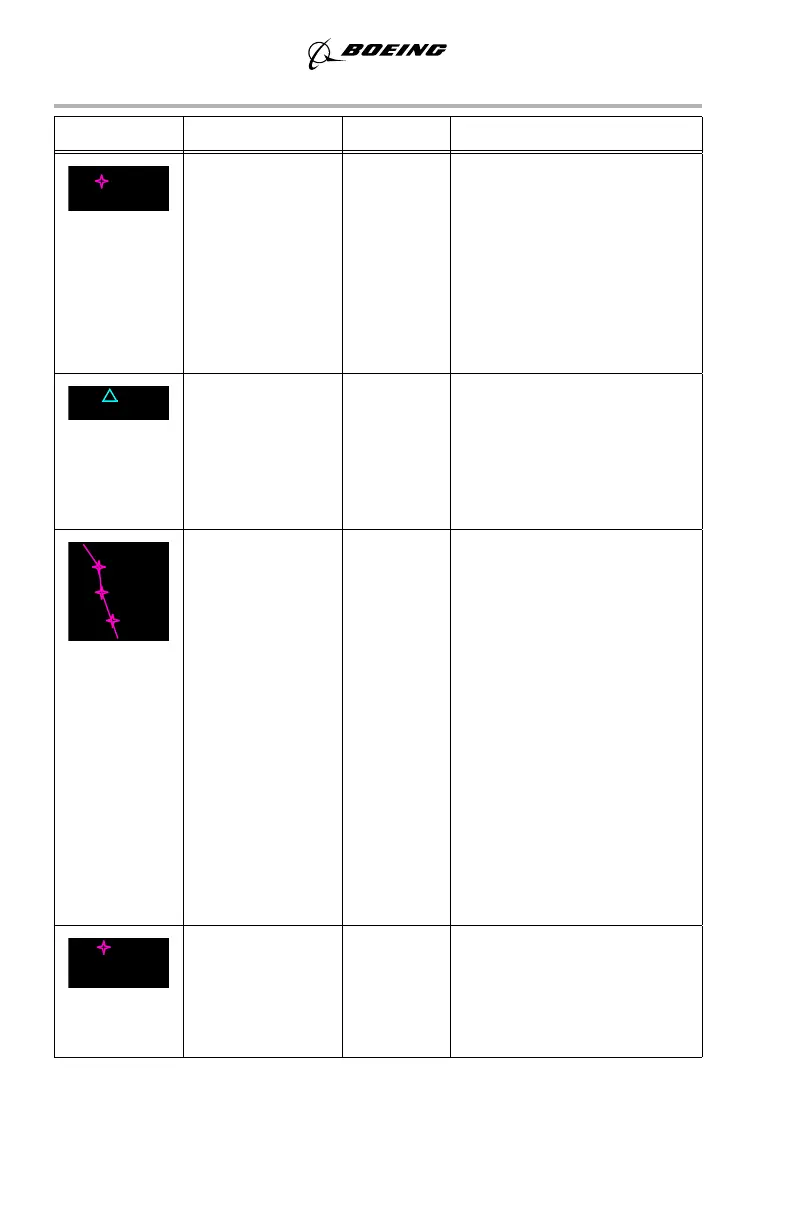

SYMBOL NAME MODE REMARKS
Waypoint:
active (M),
modified (W),
inactive (C)
MAP,
MAP CTR,
PLN
Active– represents the
waypoint the airplane is
currently navigating to.
Modified – represents the
waypoints on the active route
that are being modified.
Inactive – represents the
waypoints on the active route.
Off route
waypoint (C)
MAP,
MAP CTR,
PLN
When the EFIS control panel
WPT map switch is selected
on, waypoints not on the
selected route are displayed,
for ranges of 5, 10, 20, or 40
NM.
Flight plan route:
active (M),
modified (W),
inactive (C),
offset (M)
MAP,
MAP CTR,
PLN
The active route is displayed
with a continuous line (M)
between waypoints.
Active route modifications
are displayed with short
dashes (W) between
waypoints.
Inactive routes are displayed
with long dashes between
waypoints.
An offset route, selected
through the FMC, is
displayed with a dot–dash
line (M) parallel to the active
route.
Route data:
active (M),
inactive (W)
MAP,
MAP CTR,
PLN
When the EFIS control panel
DATA switch is selected on,
entered or procedural altitude
and ETAs for route
waypoints are displayed.
AMBOY
MLF
PARBY
KILMR
AMBOY
12000
KILMR
0835Z
