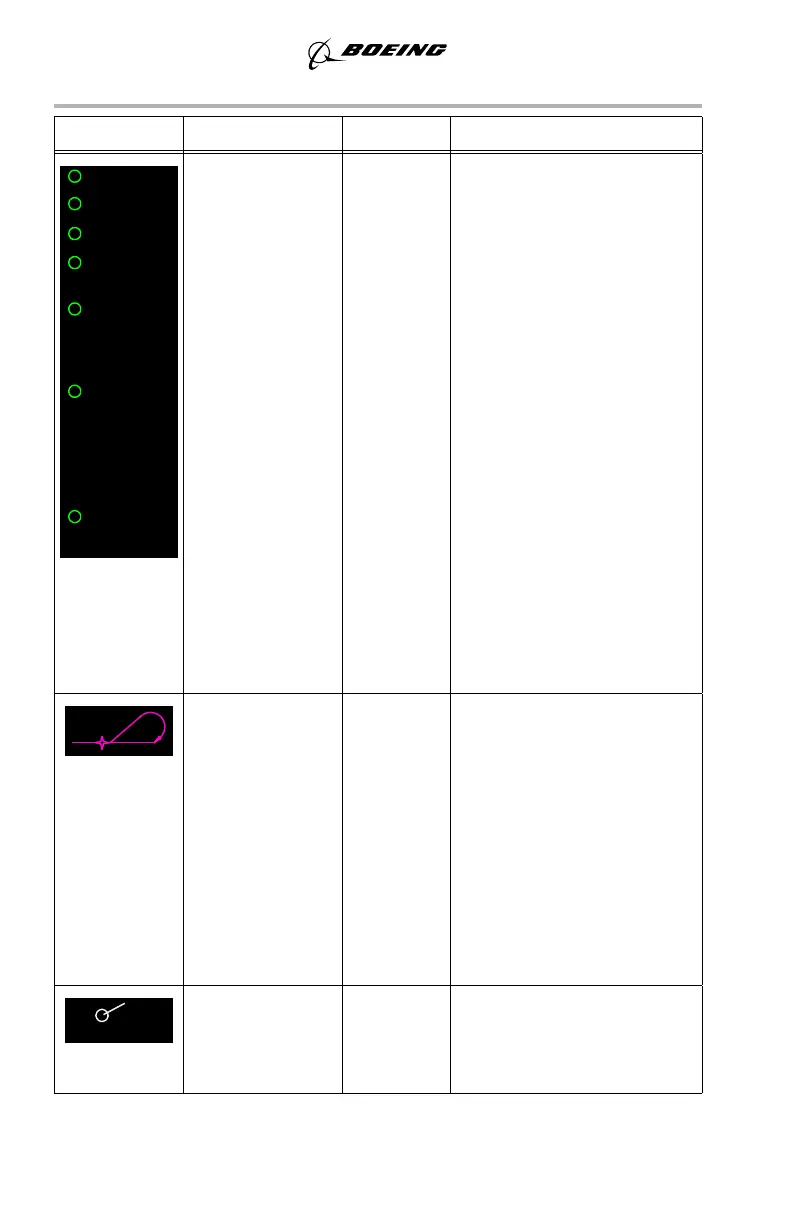

SYMBOL NAME MODE REMARKS
Altitude profile
point and
identifier (G)
MAP,
MAP CTR,
PLN
Indicates the approximate
map position of the FMC–
calculated T/C (top–of–
climb), T/D (top– of–
descent), S/C (step climb),
and E/D (end of descent)
points.
Indicates intermediate T/D
points for level flight path
segments during descent.
Level flight path segment
altitude is displayed.
Indicates the beginning of a
deceleration segment
resulting from deceleration to
a holding pattern, a waypoint
speed restriction or flaps up
maneuvering speed.
Indicates airport speed
restriction deceleration point
(no identifier).
Procedure turn:
active (M),
modified (W),
inactive (C)
MAP,
MAP CTR,
PLN
A procedure turn appears
when in the flight plan.
The procedure turn appears as
a fixed size if the selected
range is greater than 80 NM.
A scaled representation of the
procedure turn is displayed
when the selected range is 80
NM or less and the airplane is
within 3 minutes of the
procedure turn.
Airport and
runway (W)
MAP,
MAP CTR,
PLN
Displayed when selected as
the origin or destination and
selected range is 80, 160, 320,
or 640 NM.
T/D
T/C
S/C
E/D
T/D-XXXXX
DECEL
22L
KABC
