BST CCD CAM 100 User Manual

9
Operation
114/198 CCD CAM 100 – Installation and Operating Manual
9.3 Opening the Service Opening
In order to gain access to the operating and display elements on
the inside of the housing, you have to open the cover of the service
opening as described below.

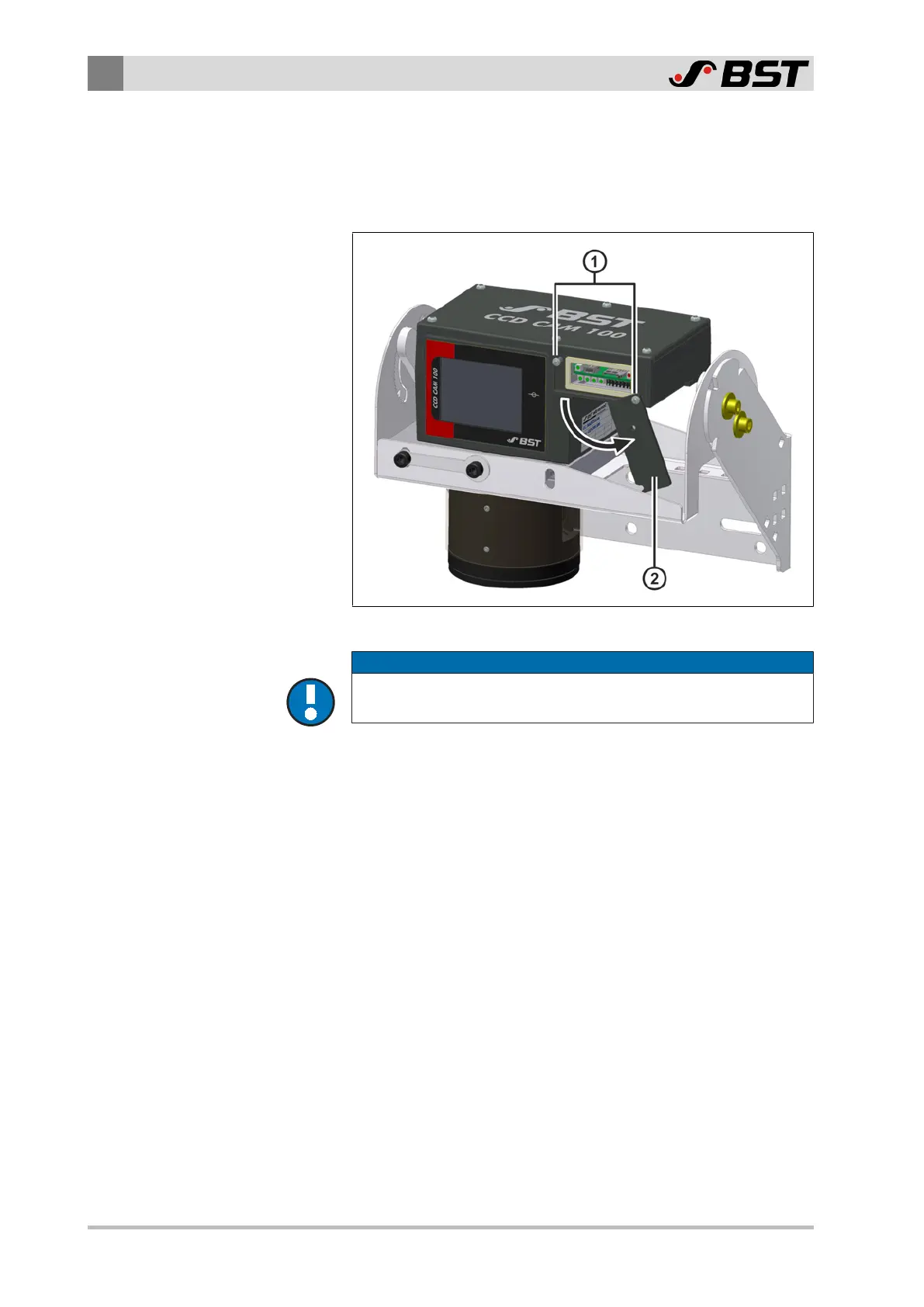

Fig.65: Opening the service opening cover
NOTICE
Damage to components when working on live parts.
►
Before opening the housing, switch off the power supply.
›› The power supply of the CCD camera is switched off.
1. Unscrew both fastening screws ① of the cover ② by approx.
4 mm. The screws do not have to be taken out completely to
open the cover!
2. Pull the cover ② slightly to the front from the housing and
pivot away downwards.
