9.10.4.3 Page 3 - Lens Settings and Measuring Range

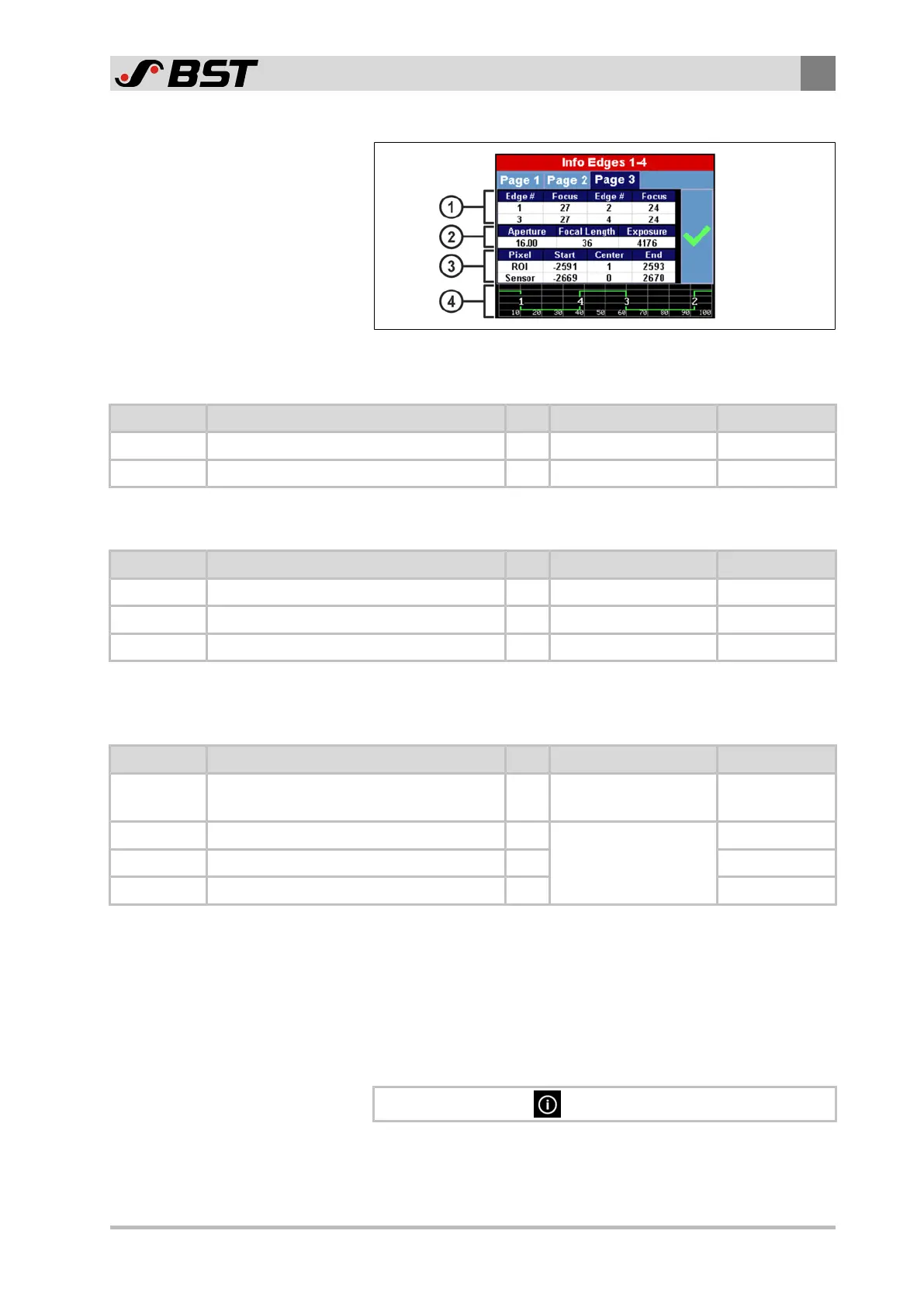

Fig.122: Page 3 of the Info Edges 1-4 menu
Area ① of the table displays the focus values set.
Column Display Function Unit Range of Values Example Value
Edge # Edge number — 1…4 1
Focus Focus value determined — 0…128 27
Area ② of the table displays the lens settings.
Column Display Function Unit Range of Values Example Value
Aperture Aperture value set — 3.50…36.00 16.00
Focal Length Focal length set mm 20…55 36
Exposure Exposure time set µs 2,000…60,000 4176
Area ③ of the table displays the evaluation range and the physical
measuring range.
Column Display Function Unit Range of Values Example Value
Pixel
ROI: Evaluation range
Sensor: Physical measuring range
— — —
Start Start pixel (beginning of range) pixel
depending on the
sensor resolution
-2669
Center Center pixel (center of range) pixel 0
End End pixel (end of range) pixel 2670
The evaluation range (ROI) is slightly smaller than the physical
measuring range (sensor) because the edge zones of the sensor
are hidden during the white balance.
Area ④ below the table displays the video curve with the numbers
of the edges detected.
9.10.5 Displaying Information for the Edges 5 - 8
\ Info Edges 5-8
The Info Edges 5-8 menu is used to display information for the
edges 5 to 8.
