Installation
46/198
CCD CAM 100 – Installation and Operating Manual
6.5.2
Attachment Alternatives
The
mounting
bracket
permits
different
attachment
alternatives
(see figure).
Delivered
version
Not allowed!
Not allowed!

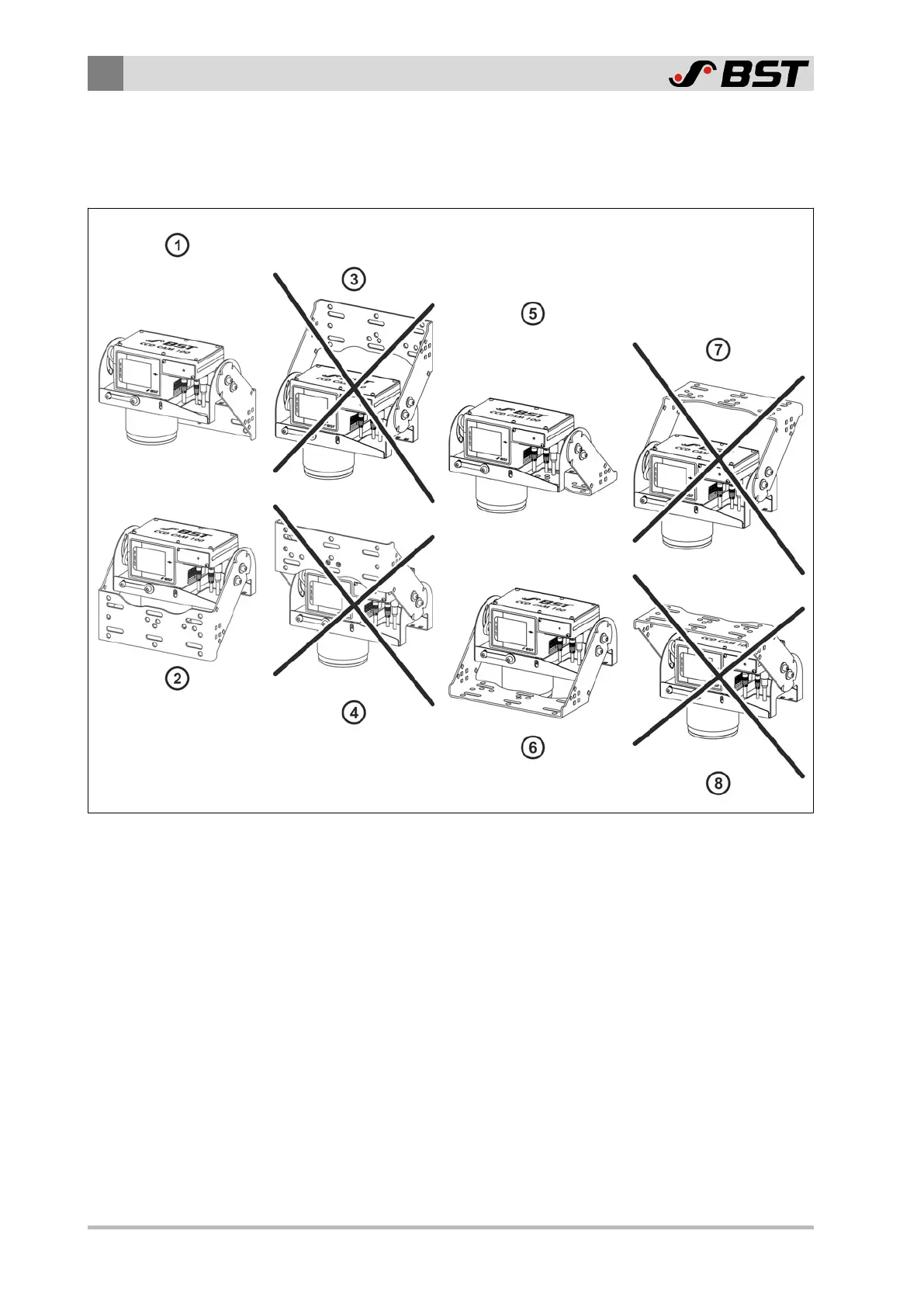

Fig.22: Possible attachment alternatives of the mounting bracket
When
supplied,
the
mounting
bracket
is
prepared
for
attachment
alternative ①.
45
47
