8.4 Camera Setup Menu
In the Camera Setup area, you will find menus that assist you with
the commissioning of the CCD camera.

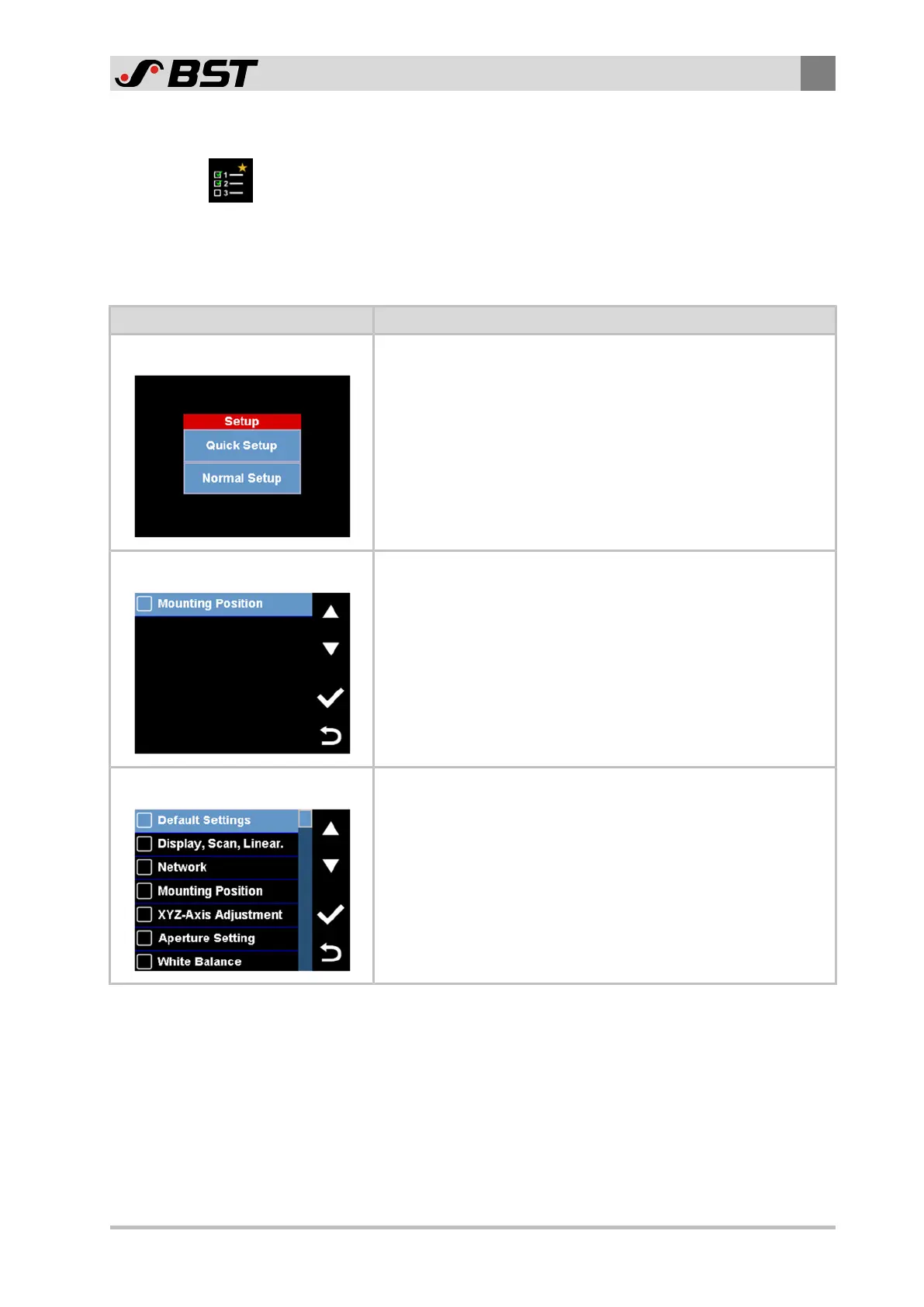

8.4.1 Quick Setup and Normal Setup
You can select from two different setup menus (Quick Setup or
Normal Setup).
Setup Menu Utilization
Setup Selection Menu
Selection of the desired setup menu
Quick Setup
The Quick Setup menu is used for the rough pre-alignment of the
CCD camera during the installation. It includes only one setting
(Mounting Position).
You can find a detailed description of the Mounting Position
menu in chapter Checking the Mounting Position of the CCD
Camera, page 85.
Normal Setup
The Normal Setup menu includes all settings that you need for
commissioning the CCD camera.
A setup wizard guides you through the commissioning process
step by step (see Setup Wizard, page 77).
