Electrical Connection
7
CCD CAM 100 – Installation and Operating Manual
69/198
7.5.3
Operation on CCD CAM 100
7.5.3.1
Connection of One Light Box
Light box type MLLA
M8, 3-pin
Y cable (243 332)
Connecting cable
0.6 m (144 716)
3.0 m (101 276)
CAN bus extension
0.4 m (146 970)
2.0 m (131 993)
5.0 m (131 994)
10.0 m (131 995)
or
spiral cable 0.5/2 m (168 176)
M8, 4-pin
Pin Assignment
Pin
1
2
3
4
X1
Power Supply
+ 24 V
idle
GND
idle
X2
Enable Signal
+ 24 V
(referred to X1 - pin 3)
Enable
(0 V = LED on)
idle

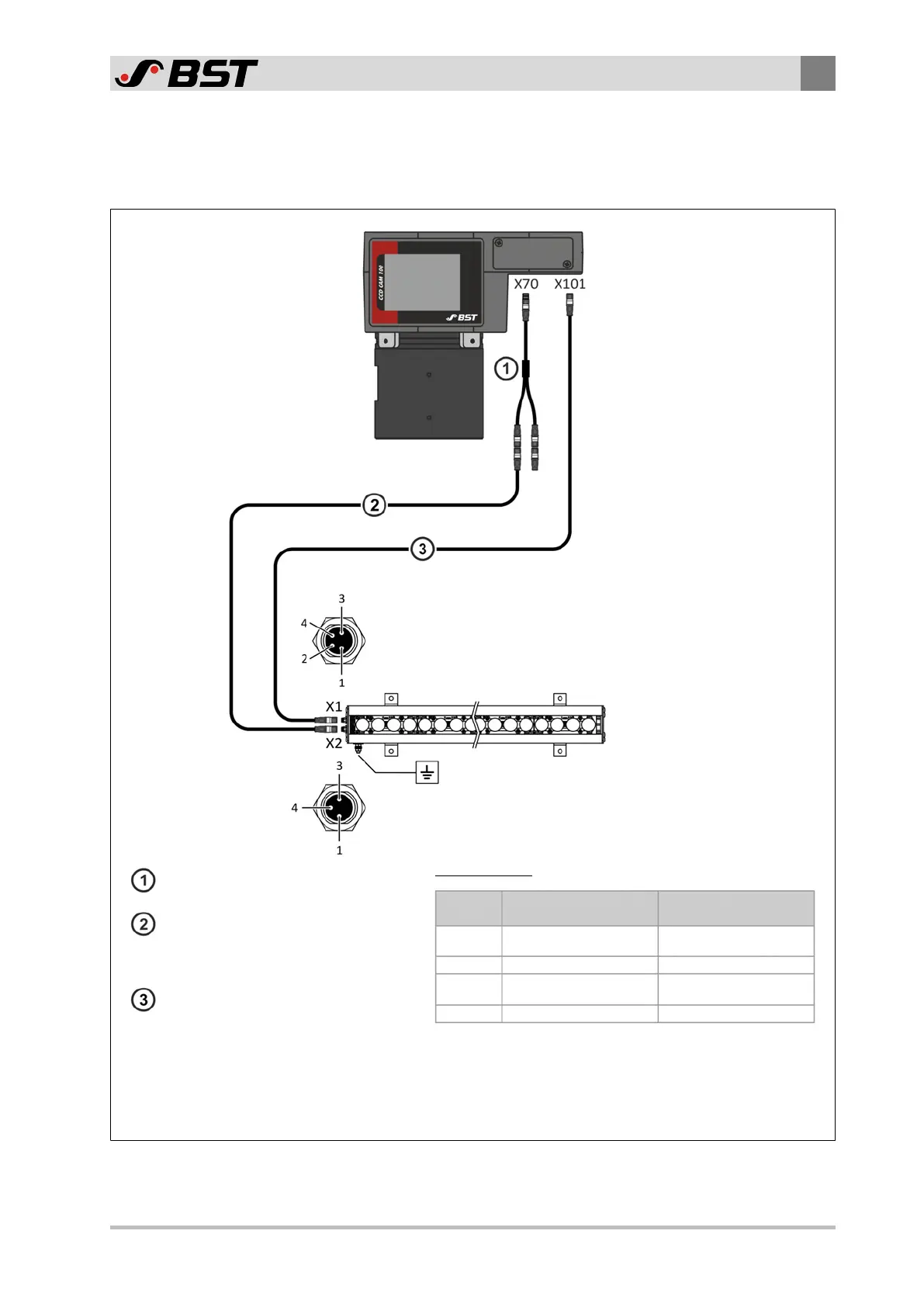

Fig.42: Connecting one light box to the CCD CAM 100
68
70
