9
Operation
180/198 CCD CAM 100 – Installation and Operating Manual

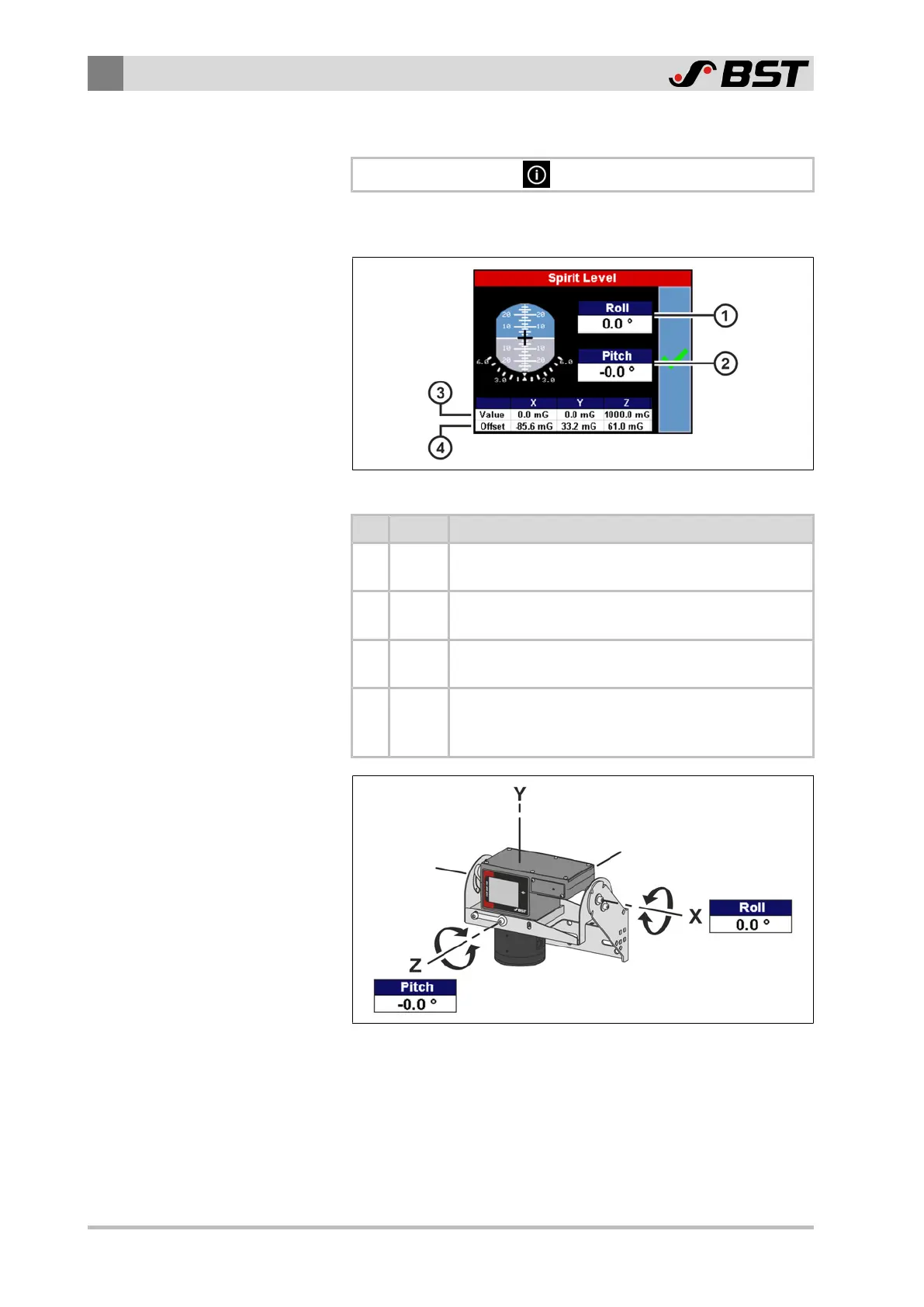

9.10.6 Displaying the Measured Values of the Electronic Spirit-Level
\ Spirit Level
The Spirit Level menu is used to display the measured values of
the electronic spirit-level (accelerometer) of the CCD camera.
Fig.123: Spirit Level menu
Pos. Field Description
① Roll
Angle of inclination of the CCD camera
relative to the X-axis
② Pitch
Angle of inclination of the CCD camera
relative to the Z-axis
③ Value
Current measured values for the three axes (X,Y,Z)
of the CCD camera
④ Offset
Offset values for the three axes (X,Y,Z) of the CCD
camera, determined during calibration of the
electronic spirit-level
Fig.124: Roll & Pitch angles of inclination
For calibration of the electronic spirit-level see Calibrating the
Electronic Spirit-Level, page 166.
