6
Installation
52/198 CCD CAM 100 – Installation and Operating Manual
6.6.2 Determining the Measuring Distance
The determination of the measuring distance D is carried out
depending on the required measuring range M and on the focal
length of the camera lens selected. It is sufficient enough to
define a rough approximate value for the measuring distance for
the installation of the CCD camera. The measuring range can be
adapted to the material width later on during commissioning by
changing the focal length on the zoom lens.
The following diagram helps you to determine the measuring
distance for the installation of the CCD camera. The dimension
specifications in the diagram are approximate values.
For determining the measuring distance for your application,
please use the detailed diagram on the following page. It contains
the necessary information for the different focal lengths of the
zoom lens.
Measuring range M [mm]
Measuring distance D [mm]
Focal length
20 mm
Focal length
28 mm
Focal length
50 mm

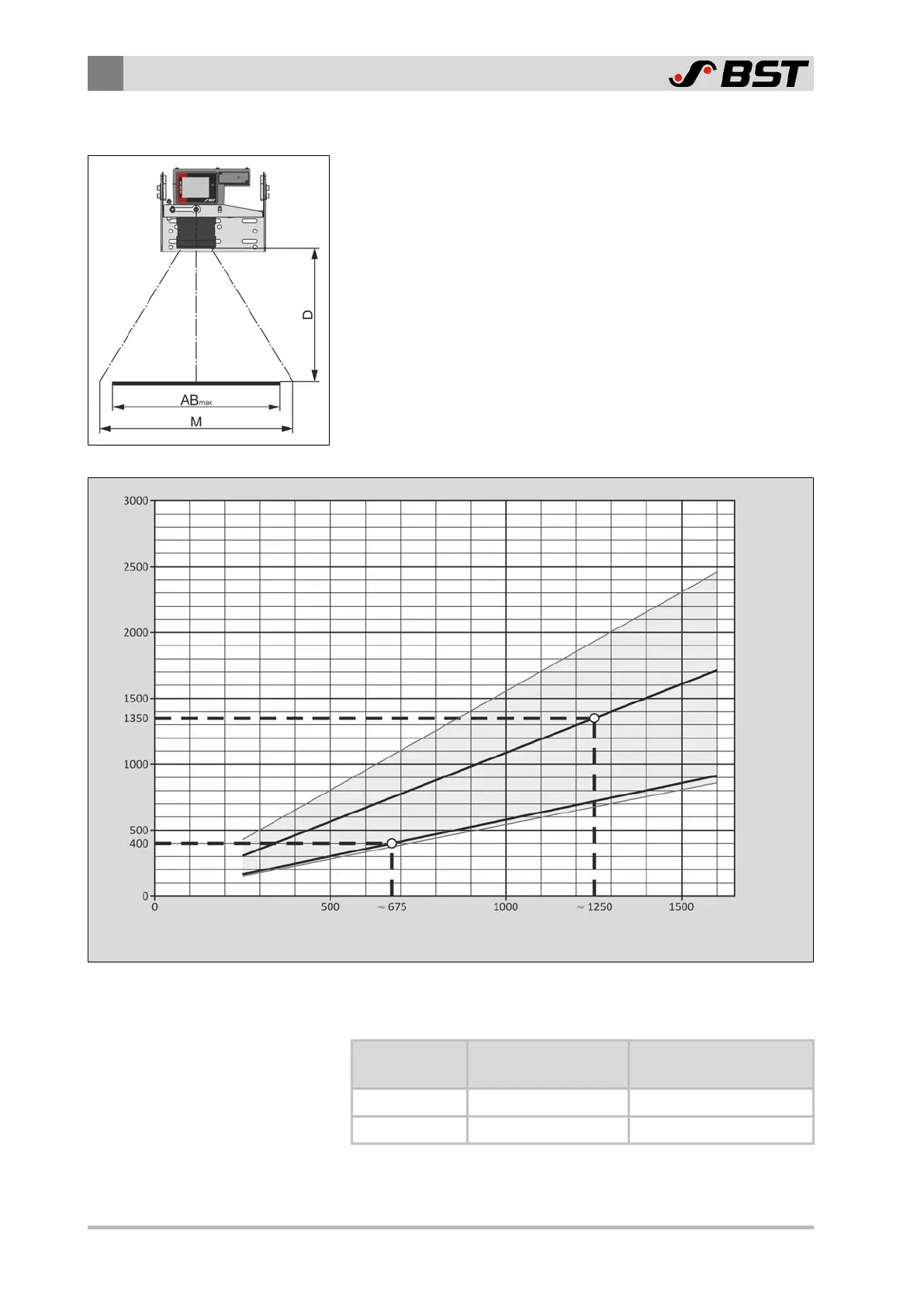

Fig.27: Determining the measuring distance (example)
Examples for determining the measuring distance:
Selected Focal
Length
Required Measuring
Range M
Measuring Distance D
(read from the diagram)
28 mm 1.350 mm ≈ 1,250 mm
50 mm 400 mm ≈ 675 mm
