Design and Function
3
CCD CAM 100 – Installation and Operating Manual 23/198
3.3 Overview of Components

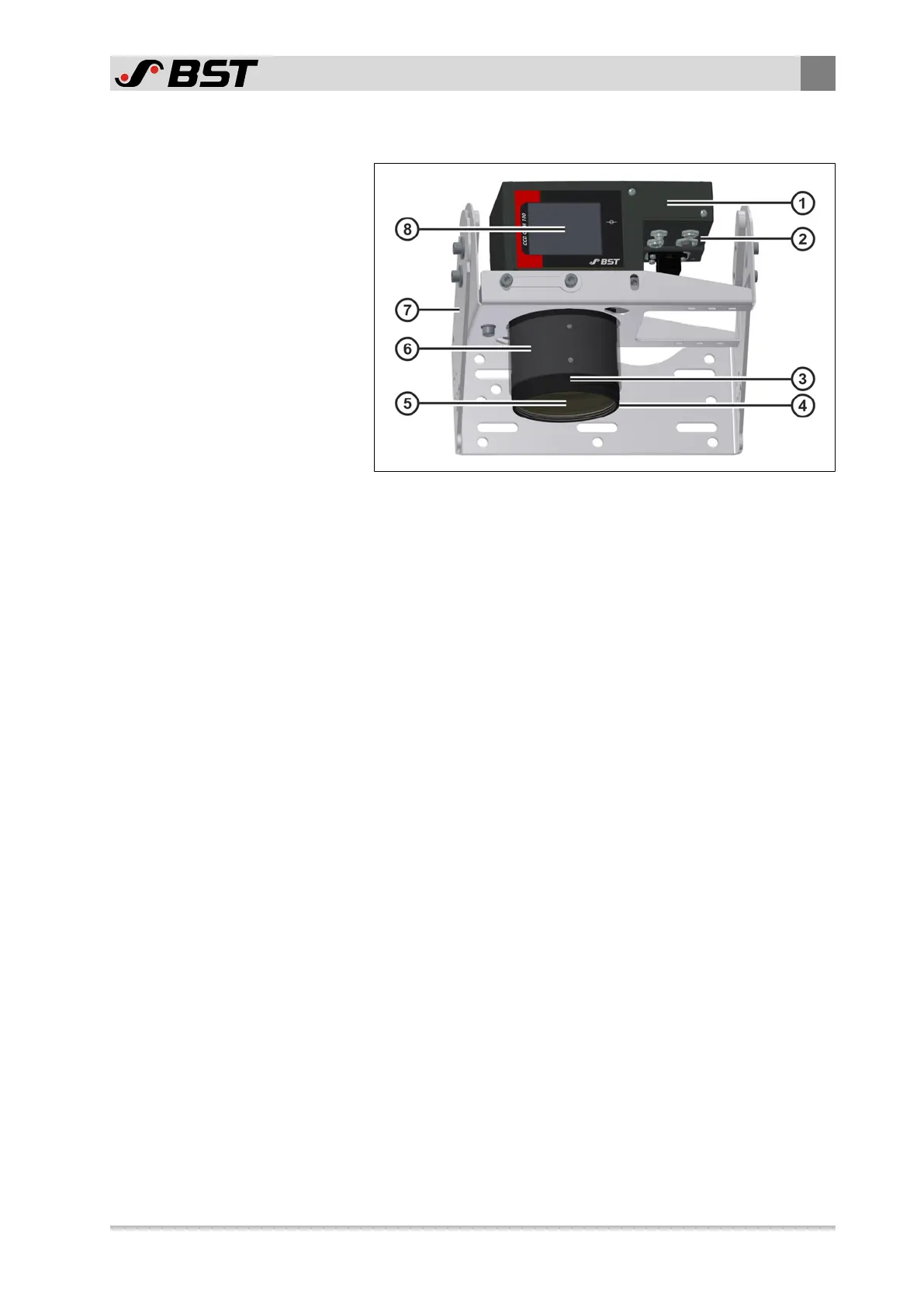

Fig.5: Components
① Service opening
The DIL switches for adapting the basic camera settings, a
slot for a microSD memory card, six service LEDs and a
programming interface (USB Mini B) are located behind the
cover of the service opening.
② Connections
2x CAN bus, 1x input / output, 1x Ethernet,
1x external lighting (light box)
③ Lens barrel
The lens barrel protects the camera lens. The position of the
zoom lens (zoom and focus) is fixed using both locking screws.
④ Protective filter
The protective filter protects the front lens of the zoom lens
against soiling or scratches and makes the cleaning easier.
⑤ Zoom lens
The zoom lens is used to adapt the measuring range of the
CCD camera to your application. Three LED projection points
make the setting and exact alignment of the camera easier.
⑥ Protective sleeve
The protective sleeve prevents dust and dirt from entering
the lens barrel.
