Electrical Connection
68/198 CCD CAM 100 – Installation and Operating Manual
7.5.2 Operation on External Power Supply
External
power supply
24 V=
M5, 4-pin
M8, 3-pin
M8, 3-pin
M8, 4-pin
Light box type XS
Light box type SL
Light box type XL
Light box type MLLA
Pin Assignment
Pin
1
2
3
4
Signal
+ 24 V
idle
GND
idle

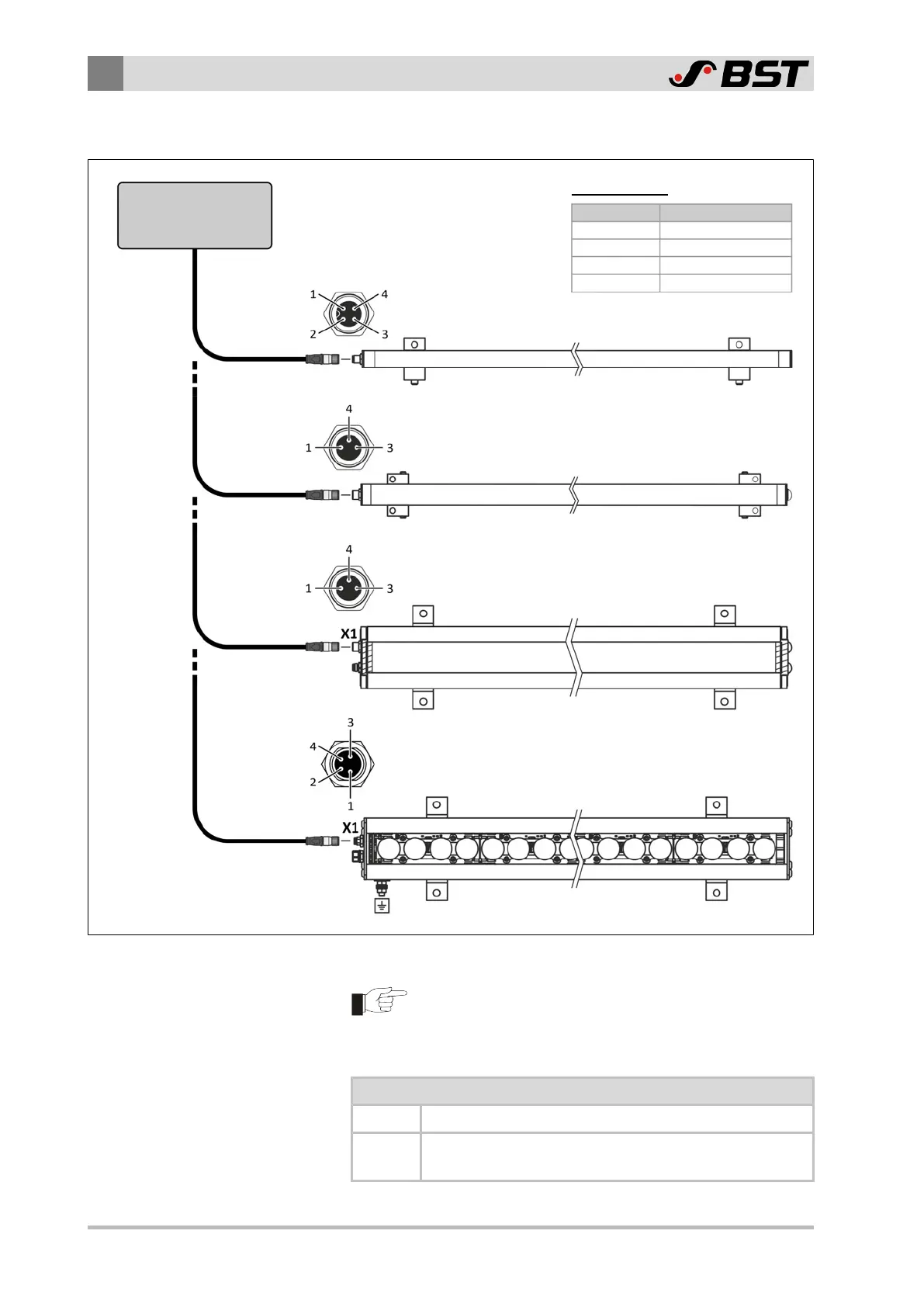

Fig.41: Operating the light box on an external power supply
Different connection cables are used depending on the
type and the light field length of the light box used. The
connection cables required for your application are de-
termined by BST during the project planning of your order.
Power Supply Specification
Voltage 24V⎓ ±10% (including ripple)
Current Depending on the light box type and light field length
(for details see Light Boxes, page 186)
