8.7 Defining the Network Settings
\ Normal Setup \ Network
The Network menu is used to define the network settings of the
CCD camera.
The menu consists of two pages.
8.7.1 Operation on the CAN Bus
The first page of the menu (CAN Open) is used to define the
network settings for operating the CCD camera on the CAN bus.

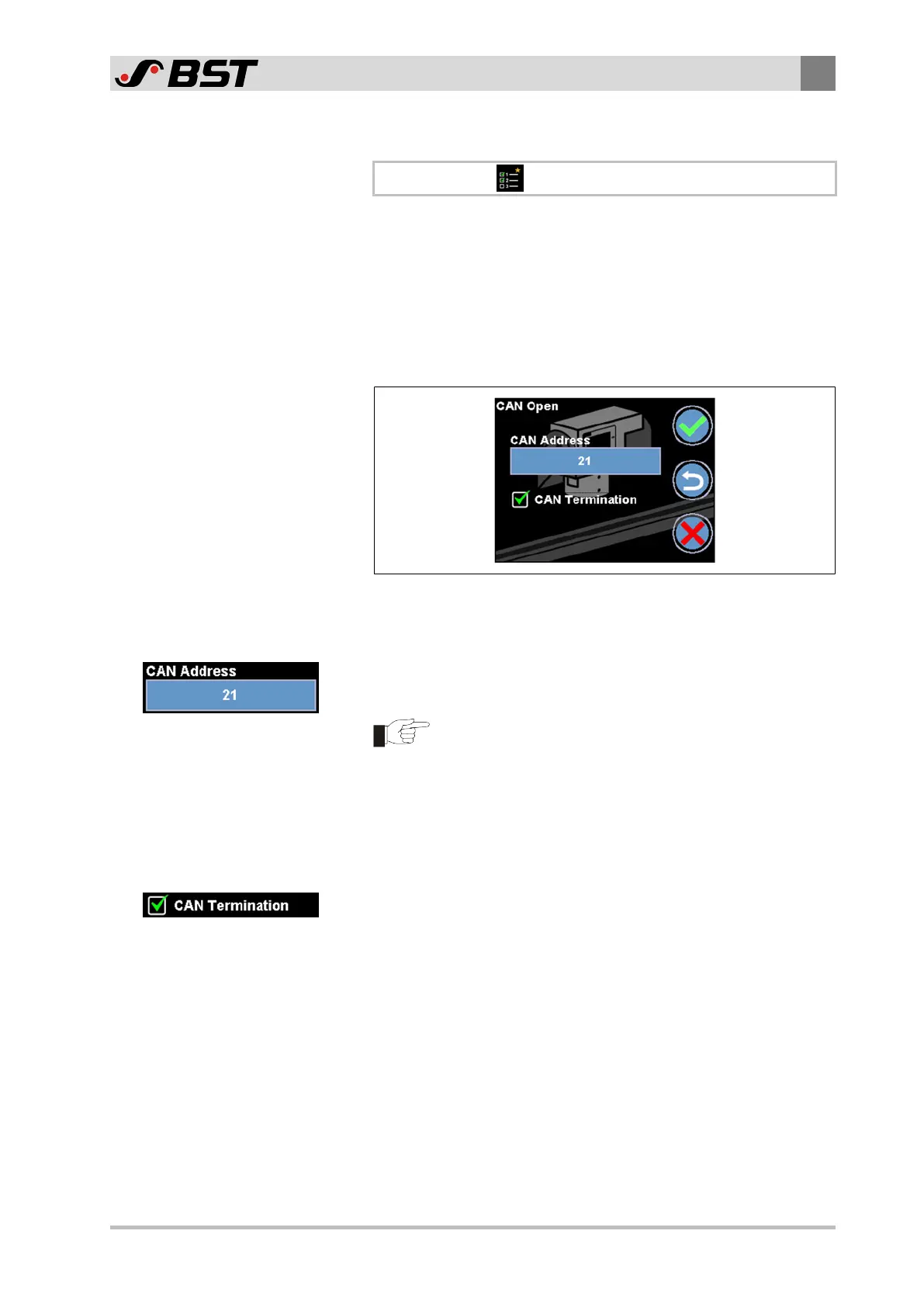

Fig.50: CAN Open menu
8.7.1.1 Setting the CAN Bus Address
The CAN Address input field is used to assign a CAN bus address
to the CCD camera according to your application.
If the device is a component of a system projected and
supplied by BST, the CAN bus address has been set
according to the application in the factory.
You can find a detailed description of the setting in chapter
Setting the CAN Bus Address, page 153.
8.7.1.2 Activating the CAN Bus Terminating Resistor
If you operate the CCD camera as first or last participant on the
CAN bus, you have to activate the internal terminating resistor of
the device using the CAN Termination checkbox.
You can find a detailed description of the setting in chapter
Activating the CAN Bus Terminating Resistor, page 155.
