8
Commissioning
86/198 CCD CAM 100 – Installation and Operating Manual
3. Move the mounting bracket across the web running direction
until the LED projection point in the middle is located in the
middle above the web of material.
4. Tighten all fixing screws of the mounting bracket.

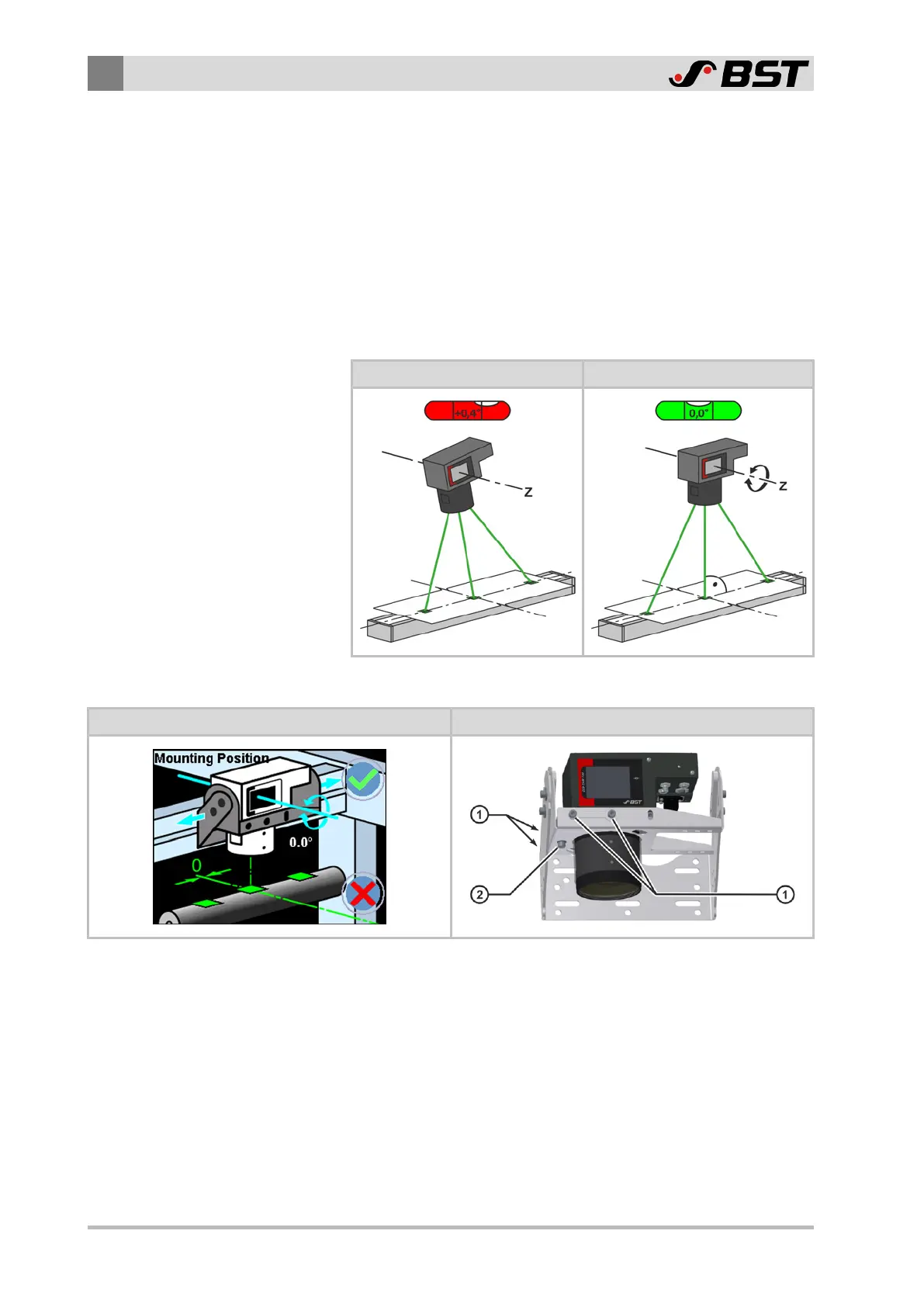

8.8.2 Checking the Perpendicular Alignment (only with horizontal web running direction)
Setting rule
The CCD camera must be aligned precisely perpendicular to the
web running level.
Incorrect Correct
Correcting the alignment of the CCD camera
Display Screen Mechanical Setting
1. Loosen the four locking screws ① of the mounting bracket.
Two screws are each located on the front and on the back side
of the mounting bracket.
2. Swivel the CCD camera around the Z-axis by turning the adjust-
ing screw ② until it is positioned precisely perpendicular to
the web running level. When aligned correctly, a rotation angle
of 0.0° is displayed on the screen next to the camera symbol.
3. Tighten the four locking screws ① of the mounting bracket.
