9.9.18 Loading a New FPGA File
\ Load/Store Settings \ Load New FPGA File
The Load New FPGA File menu is used to load a new configuration
file for the real time evaluation of the CCD RGB colour sensor of
the CCD camera.

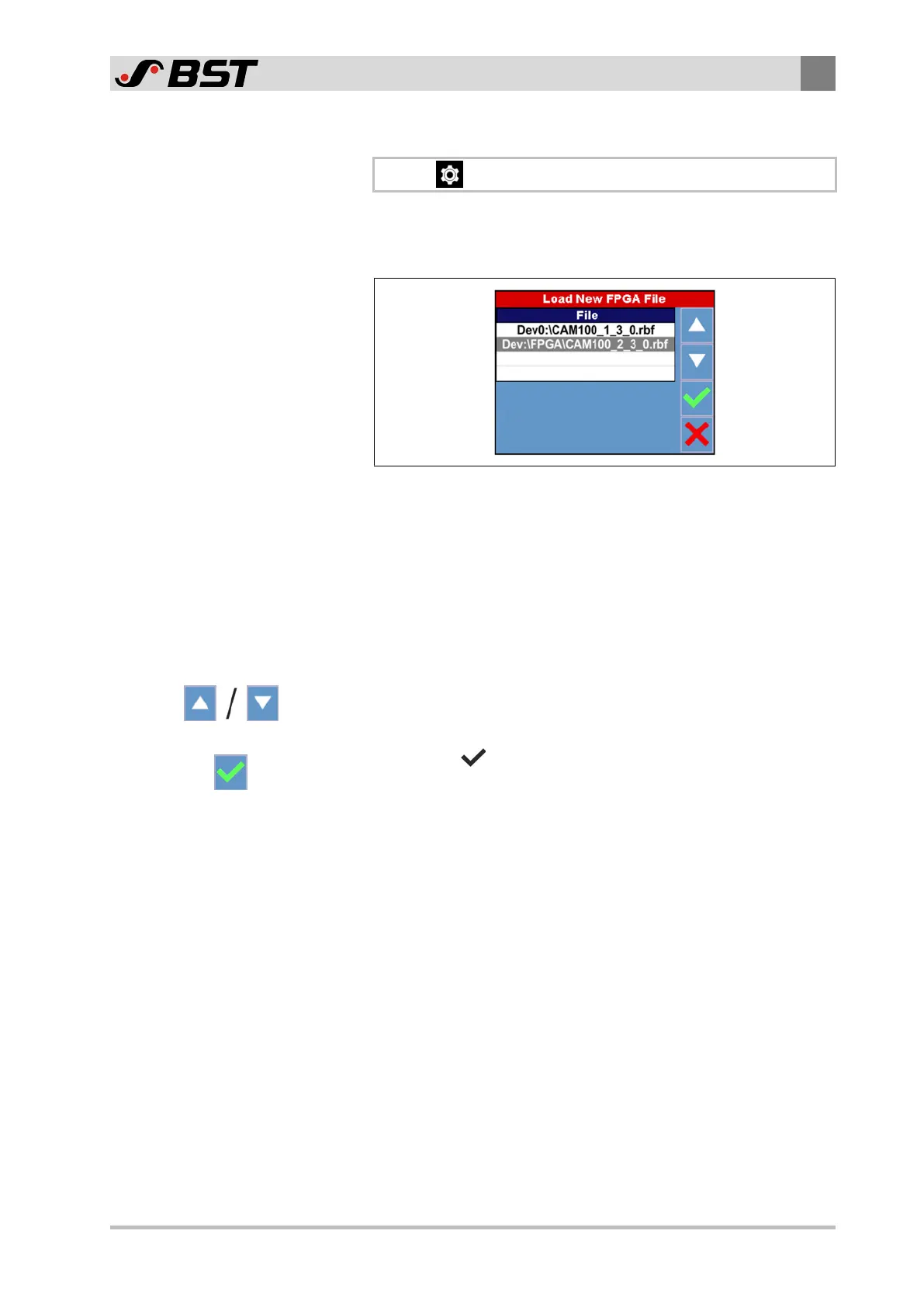

Fig.109: Load New FPGA File menu
The function is used for special applications where, e.g. only one
colour line of the CCD-RGB colour sensor should be evaluated.
Loading an FPGA file
›› There is a microSD memory card in the memory card slot of the
CCD camera on which an FPGA file is saved.
1. Call up the Load New FPGA File menu.
2. Using the arrow buttons, select the desired FPGA file from the
list.
The selected FPGA file is marked gray.
3. Press the button.
The selected FPGA file is loaded.
The operating system of the CCD camera is restarted.
