8
Commissioning
80/198 CCD CAM 100 – Installation and Operating Manual
8.6 Setting the Screen Display, Scan Direction and Calibration Method
\ Normal Setup \ Display, Scan, Linear.
The Display, Scan, Linear. menu is used to adapt the basic settings
for the screen display, the scan direction and the calibration
method to your application.
The menu consists of three pages.
8.6.1 Rotating the Screen Display
The first page of the menu (Display Rotation) is used to adapt the
screen display to the installation position of the CCD camera or
the viewing direction of the operator.

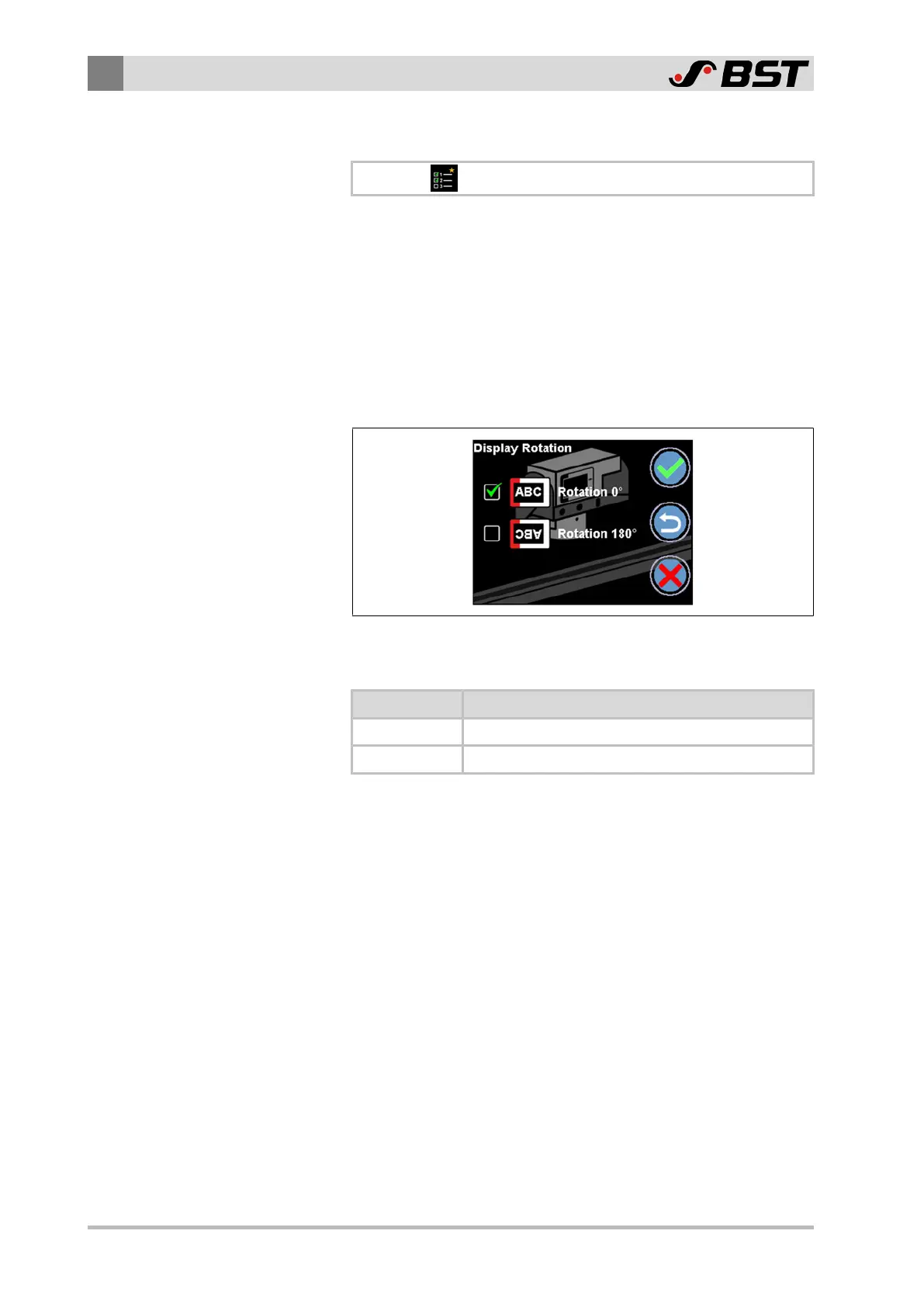

Fig.47: Display Rotation menu
You can select from the following settings:
Setting Description
Rotation 0° No rotation of the screen display (factory setting)
Rotation 180° Electronic 180° rotation of the screen display
You can find a detailed description of the settings in chapter
Rotating the Screen Display, page 158.
