9.6 Operation Display
9.6.1 Overview
During operation, the graphic display of the CCD camera shows the
video curve with the detected edge positions and the operating
status of the device. You can call up the different system menus
using the four buttons at the bottom edge of the operation display.
You will find the significances for the individual symbols in the
following illustration.

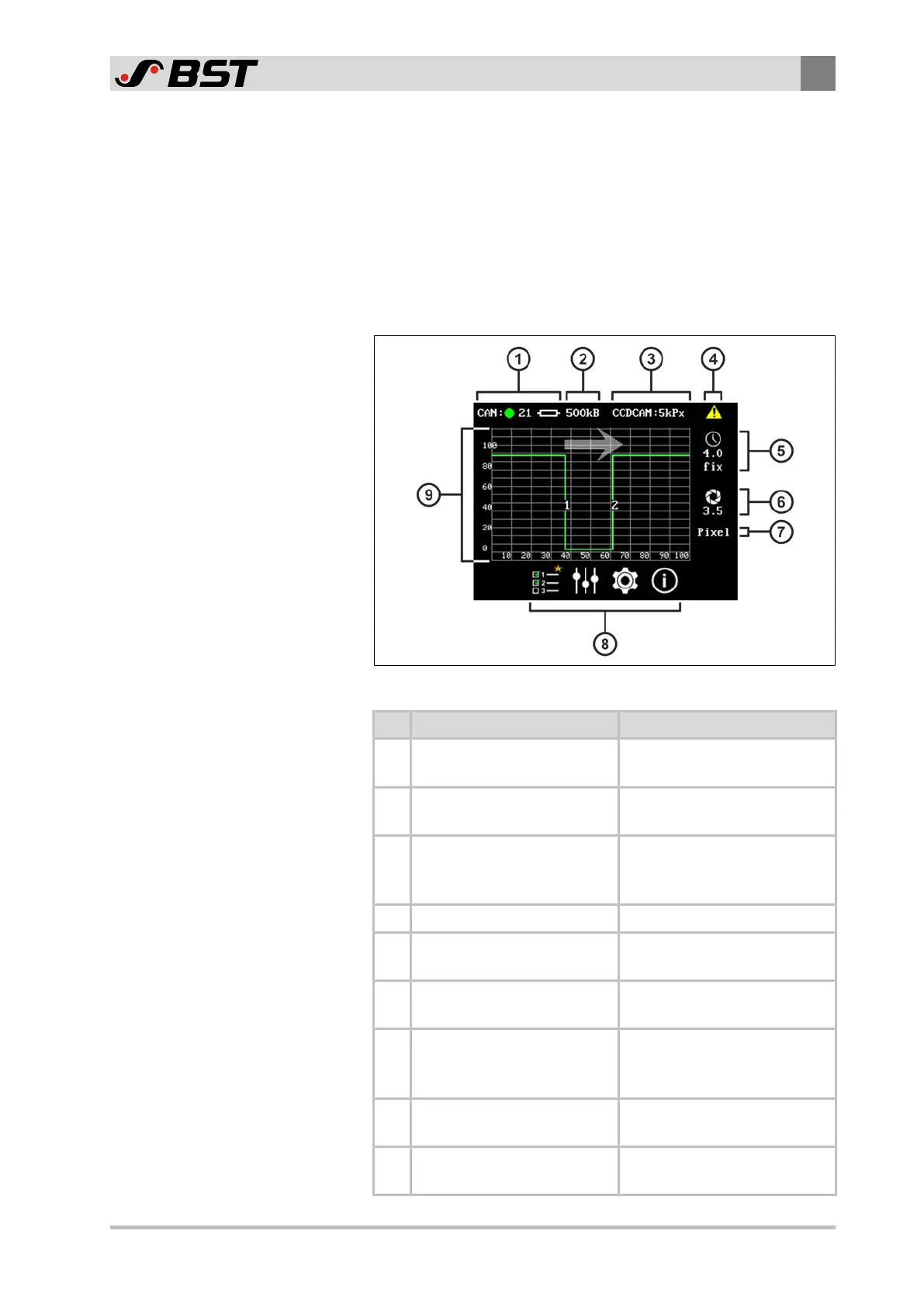

Fig.68: Operation display
Pos. Function Description
①
Display of CAN bus
information
See Display of CAN Bus
Information, page 120
②
Display of the
data transfer rate
See Display of the Data
Transfer Rate, page 121
③
Display of the operating
mode and sensor resolution
See Display of the Operating
Mode and Sensor Resolution,
page 121
④ Error display See Error Display, page 121
⑤
Display of the exposure
settings
See Display of the Exposure
Settings, page 121
⑥ Display of the aperture value
See Display of the Set
Aperture Value, page 122
⑦
Display of the unit for the
measured value output
See Display of the Unit for the
Output of the Measured
Values, page 122
⑧ Calling up the system menu
See Calling Up the System
Menus, page 122
⑨
Display of the video curve
with edge positions
See Display of the Video
Curve, page 123
