Installation
6
CCD CAM 100 – Installation and Operating Manual 43/198
6.3 Space Requirement
The dimensions of the CCD camera and the mounting bracket can
be obtained in chapter Technical Specifications, page 34.
The components of the CCD camera must be easily accessible for
all work to be carried out during the entire life cycle (see table).

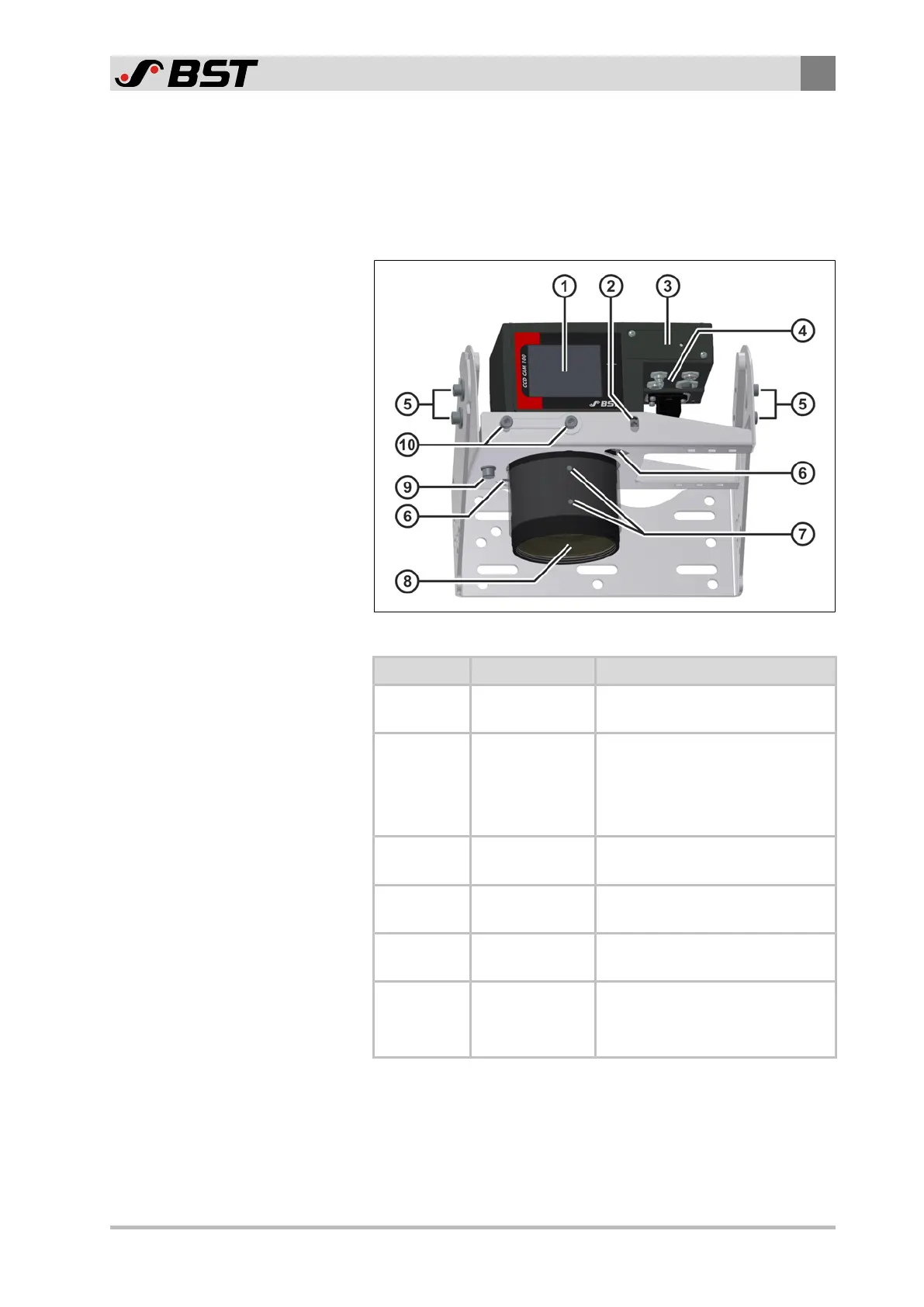

Fig.19: Space requirement
Pos. Component Work To Be Carried Out
①
Touchscreen
display
■ Camera operation
③ Service opening
■ Performing basic settings
■ Performing firmware updates
■ Inserting / removing memory
card
②, ⑤, ⑥,
⑨, ⑩
Locking screws,
adjusting screws
■ Camera adjustment
⑦ Locking screws
■ Fixing the position of the
zoom lens (zoom and focus)
④ Connections
■ Establishing the cable
connections
⑧ Zoom lens
■ Setting the measuring range
■ Cleaning the protective filter/
lens
