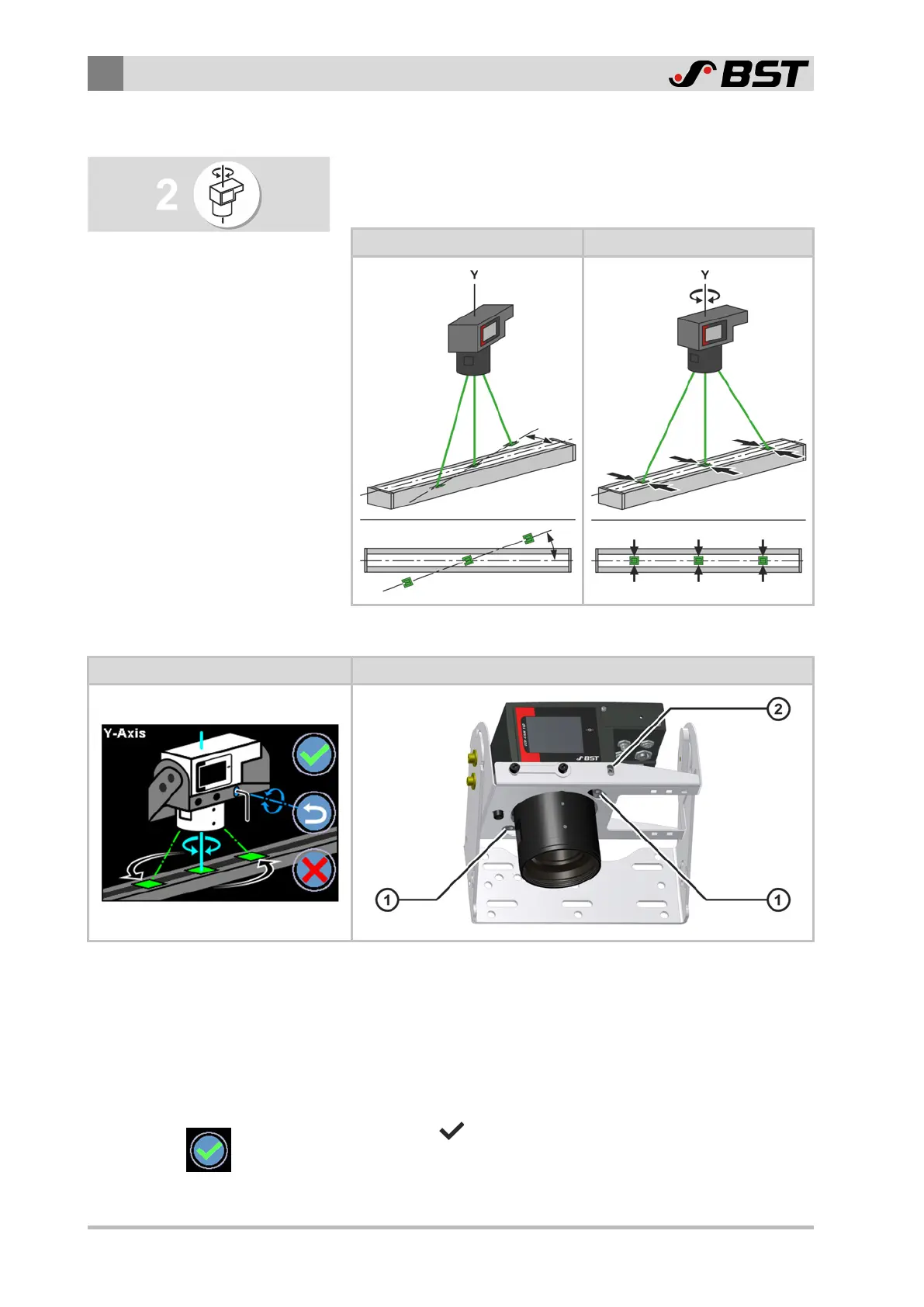

8.9.7 Y Axis Alignment
Setting rule
All three LED projection points must be located in the middle
above the lighting field of the light box.
Incorrect Correct
Alignment correction
Display Screen Mechanical Setting
›› The LED lighting of the light box is switched off.
1. Loosen both locking screws ① on the bottom side of the
mounting bracket.
2. Swivel the CCD camera around the Y axis by turning the adjust-
ing screw ② until all LED projection points are located in the
middle above the lighting field.
3. Tighten both locking screws ①.
4. Press the button to complete the adjustment step.
The screen display changes to the next step.
