9.4 Inserting/Removing the Memory Card
The CCD camera is equipped with a memory card slot ①. It is
located behind the cover of the service opening.

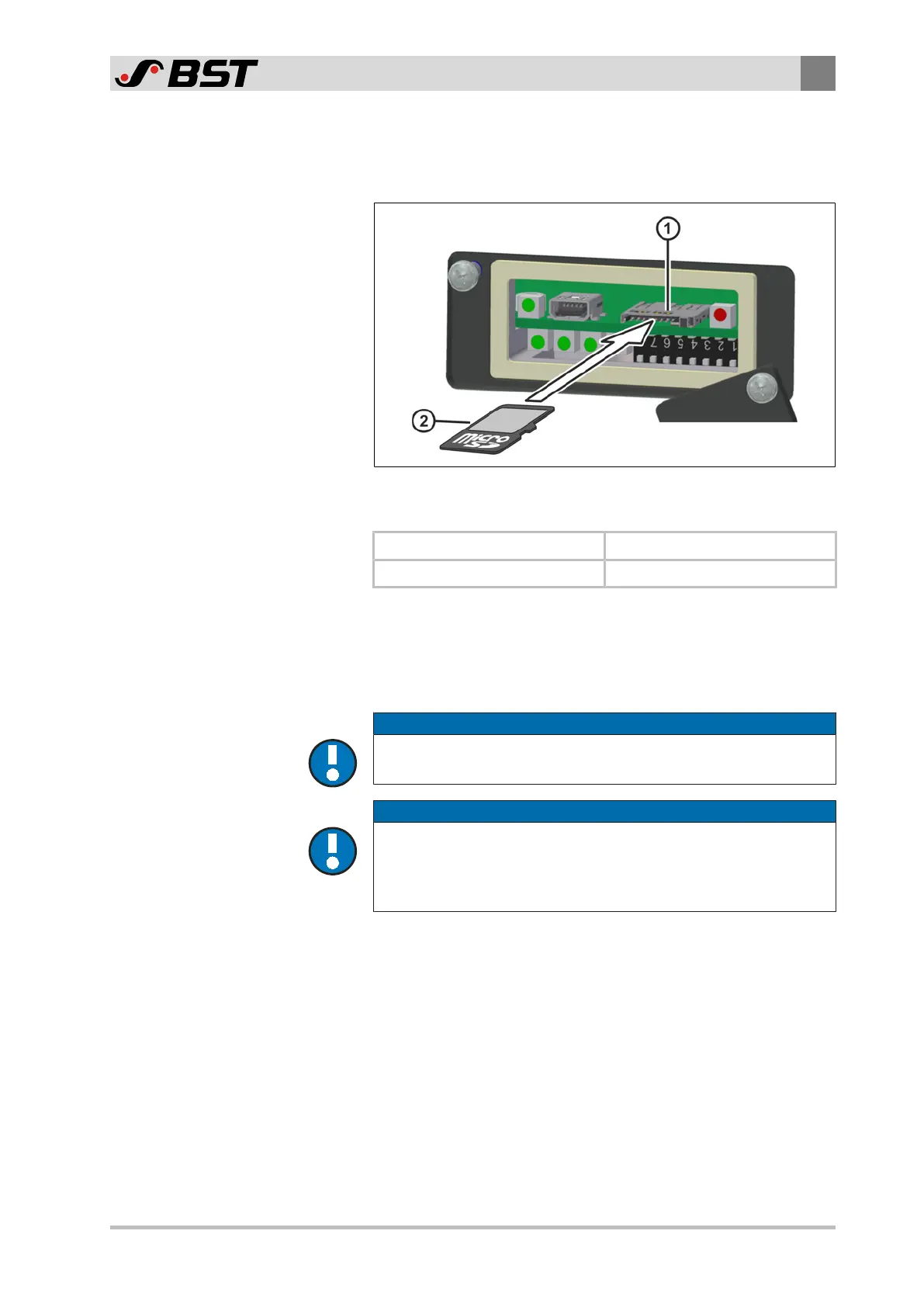

Fig.66: Memory card slot
The following memory cards are supported:
Memory card type microSD
Memory capacity 4…16GB
You can use the memory card ②,
■ to transfer the camera parameter to another CCD camera
■ to install firmware updates
Inserting the memory card
NOTICE
Damage to components when working on live parts.
►
Before opening the housing, switch off the power supply.
NOTICE
Damage to the memory card slot by inserting the memory card
incorrectly.
►
Always insert the memory card with the contacts pointing
downwards.
1. Open the service opening (see Opening the Service Opening,
page 114).
2. Hold the memory card so that the contacts are pointing downwards.
3. Carefully push the memory card into the slot until it engages.
4. Close the service opening again.
Removing the memory card
1. Open the service opening (see Opening the Service Opening,
page 114).
2. Press the memory card slightly in the slot and then let it go.
3. Carefully remove the memory card from the slot.
4. Close the service opening again.
