11.2.4 Light Boxes
Four standard light box types with LED lighting are available for
different lighting requirements.
11.2.4.1 Light Box Type XS
Type designation: LD-xxx-XS
xxx = Light box length [mm]
Application: Transmitted light method
variable

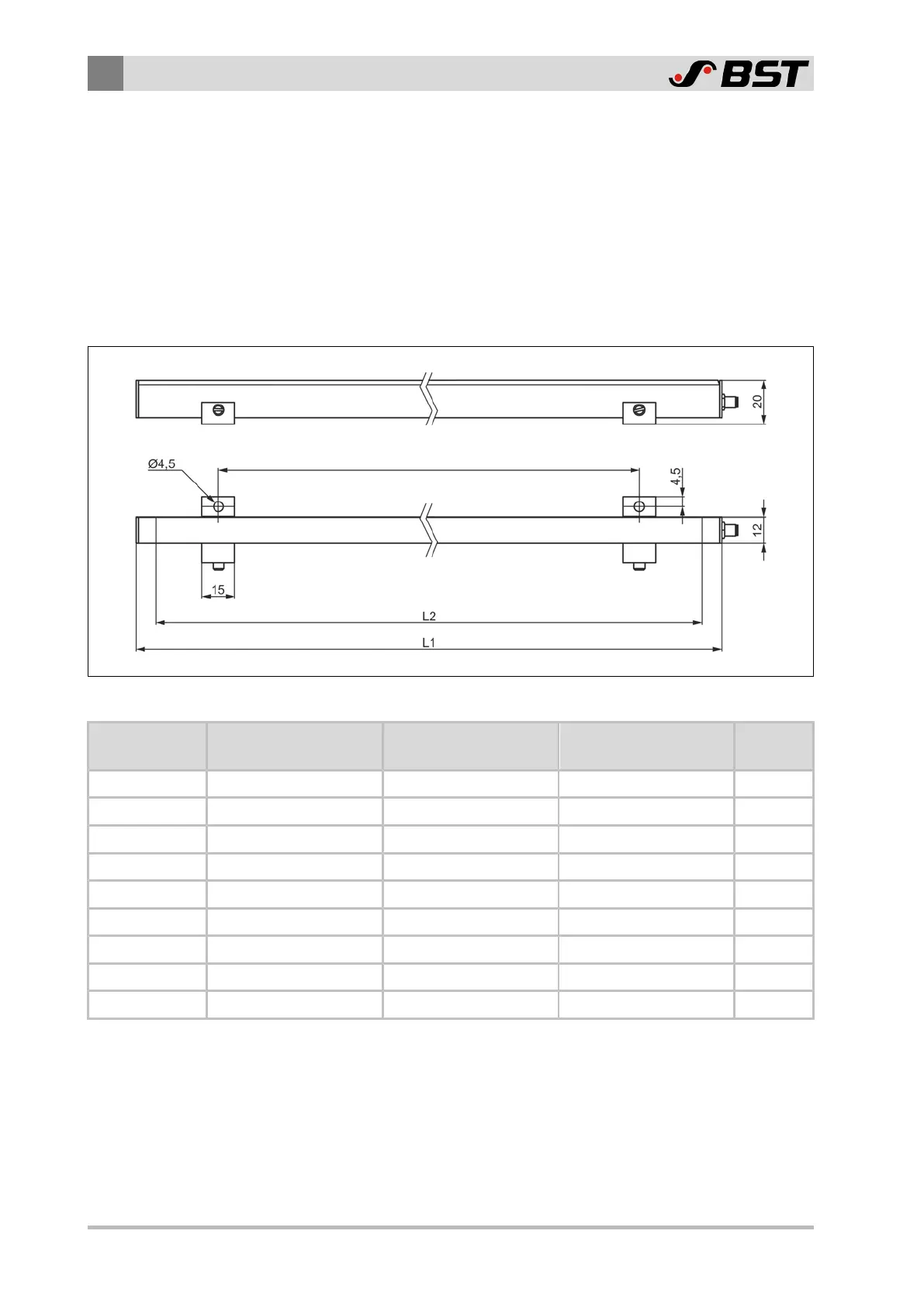

Fig.125: Dimensions light box type XS
Order Number Light Box Type Light Box Length L1
[mm]
Light Field Length L2
[mm]
Current I
[A]
450749 LD-125-XS 125 107 0.04
450760 LD-225-XS 225 207 0.07
147294 LD-325-XS 325 307 0.10
148394 LD-425-XS 425 407 0.13
148396 LD-525-XS 525 507 0.16
148398 LD-625-XS 625 607 0.19
148400 LD-725-XS 725 707 0.22
148403 LD-825-XS 825 807 0.25
148405 LD-925-XS 925 907 0.28
