11.2.4.2 Light Box Type SL
Type designation: LD-xxx-SL
xxx = Light field length [mm]
Application: Transmitted light method
variable

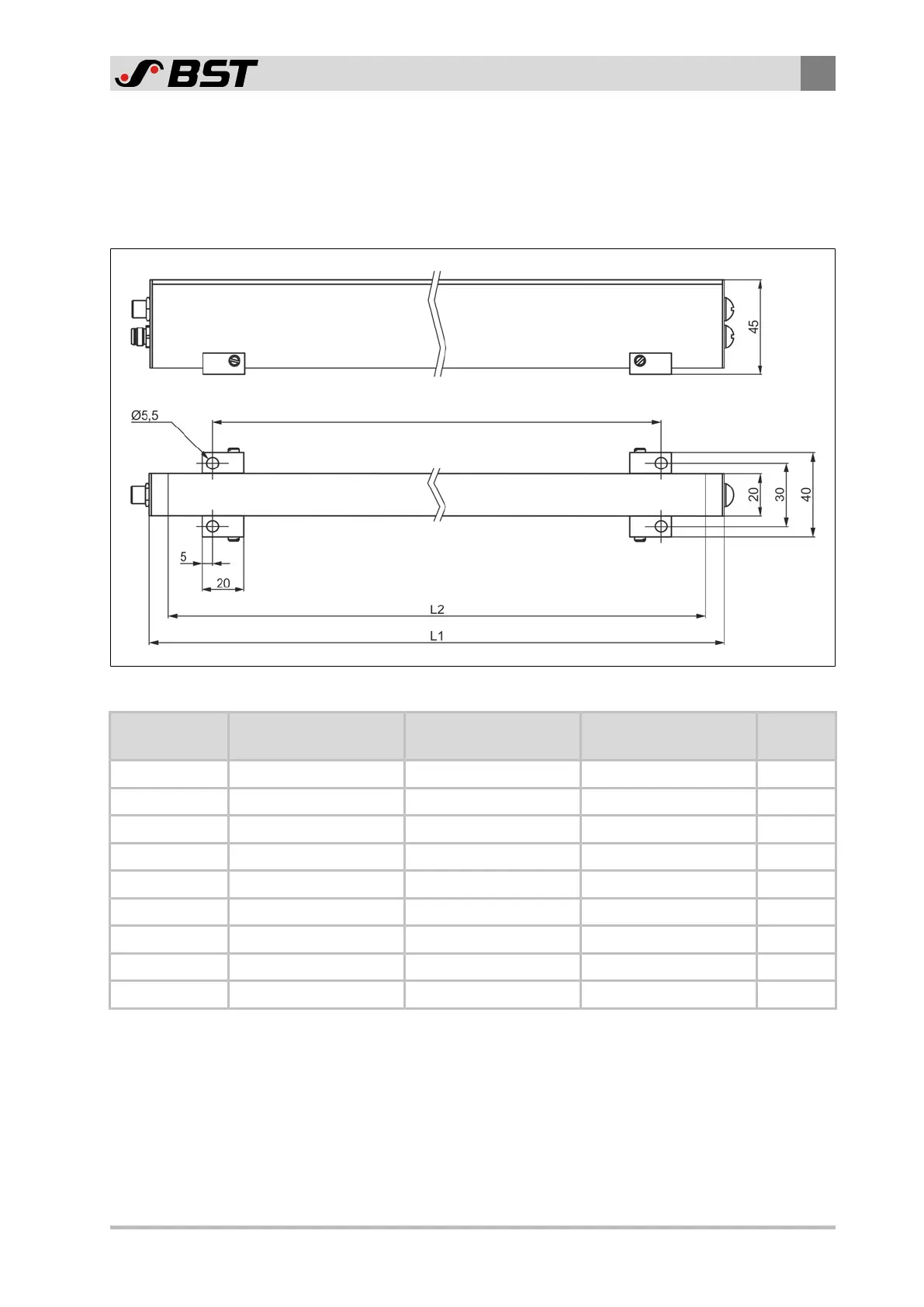

Fig.126: Dimensions light box type SL
Order Number Light Box Type Light Box Length L1
[mm]
Light field length L2
[mm]
Current I
[A]
148580 LD-100-SL 130 112 0.04
148578 LD-200-SL 230 212 0.07
148576 LD-300-SL 330 312 0.10
148574 LD-400-SL 430 412 0.13
148517 LD-500-SL 530 512 0.16
148506 LD-600-SL 630 612 0.19
147308 LD-700-SL 730 712 0.22
147322 LD-800-SL 830 812 0.25
146345 LD-900-SL 930 912 0.28
