11.2.4.3 Light Box Type XL
Type designation: LD-xxxx-y-XL
xxxx = Light field length [mm]
y = Number of LED rows
Application: Transmitted light method
variable

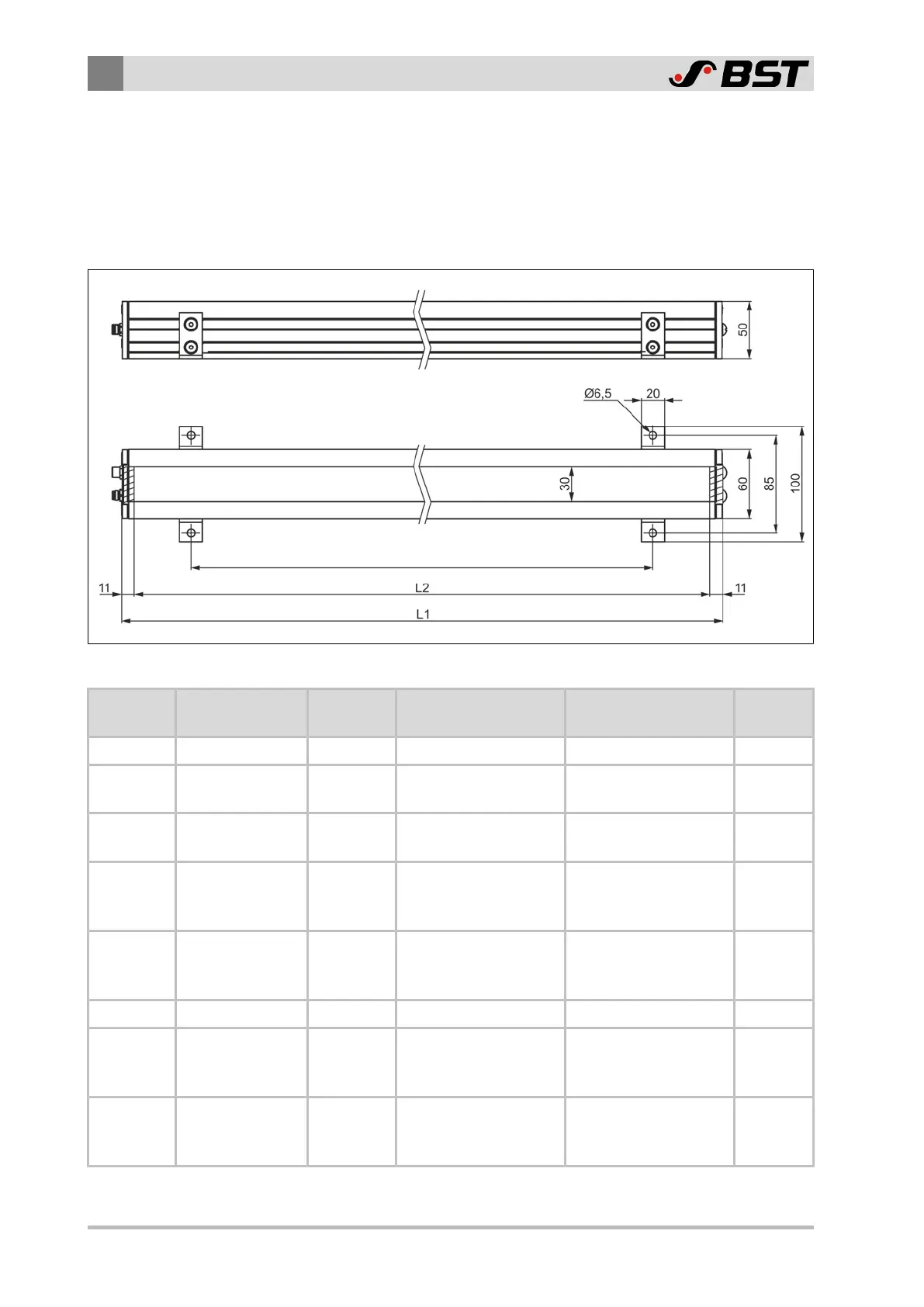

Fig.127: Dimensions light box type XL
Order
Number
Light Box Type
LED Rows
Light Box Length L1
[mm]
Light Field Length L2
[mm]
Current I
[A]
154347 LD-0100-3-XL 3 122 100 0.30
160211
230335
LD-0200-3-XL
LD-0200-1-XL
3
1
222 200
0.60
0.20
235250
244027
LD-0300-1-XL
LD-0300-1-XL
1
1
322 300
0.30
0.20
146014
146013
146011
LD-0400-3-XL
LD-0400-2-XL
LD-0400-1-XL
3
2
1
422 400
1.10
0.80
0.40
144928
144922
144772
LD-0500-3-XL
LD-0500-2-XL
LD-0500-1-XL
3
2
1
522 500
1.40
0.90
0.50
231052 LD-0550-3-XL 3 572 550 1.40
144929
144923
144775
LD-0600-3-XL
LD-0600-2-XL
LD-0600-1-XL
3
2
1
622 600
1.70
1.10
0.60
239099
248532
234885
LD-0700-3-XL
LD-0700-2-XL
LD-0700-1-XL
3
2
1
722 700
1.90
1.30
0.70
