8.6.2 Defining the Scan Direction
The second page of the menu (Scan Direction) is used to define
the scan direction of the CCD camera.

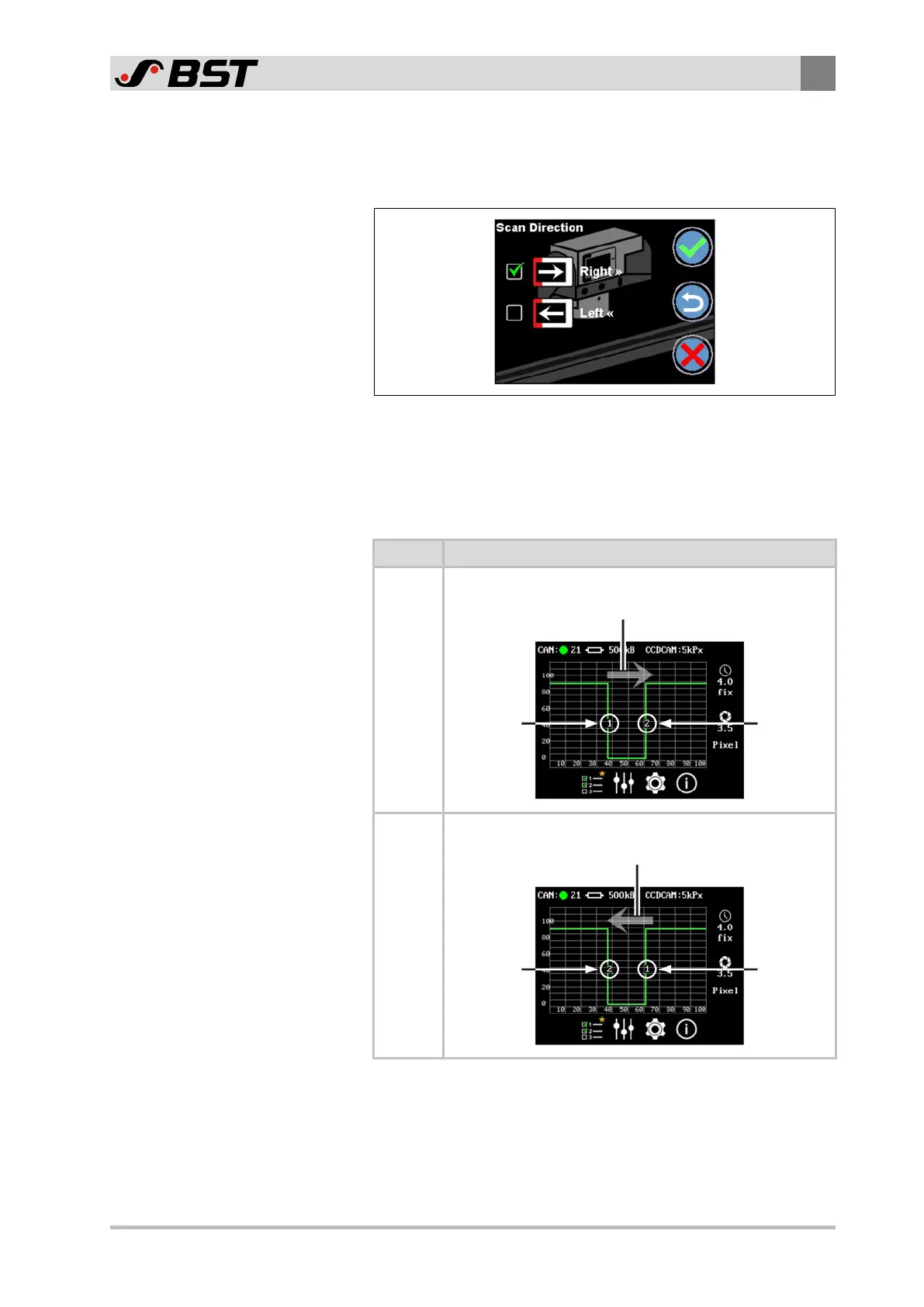

Fig.48: Scan Direction menu
The scan direction is the direction that is used for the evaluation
of the video signal. It is indicated with an arrow in the upper part
of the operation display.
You can select from the following settings:
Setting Description
Right >>
Evaluation of the video signal from left to right
Scan direction Right >>
Edge 1 Edge 2
Left <<
Evaluation of the video signal from right to left
Scan direction Left <<
Edge 2 Edge 1
You can find a detailed description of the settings in chapter
Defining the Scan Direction, page 145.
