BST CCD CAM 100 User Manual

Operation
9
CCD CAM 100 – Installation and Operating Manual 129/198
9.8.3 Defining the Exposure Settings
\ Lens Settings \ Exposure Setup
The menu Exposure Setup is used to define the basic exposure
settings.
Evaluation
area

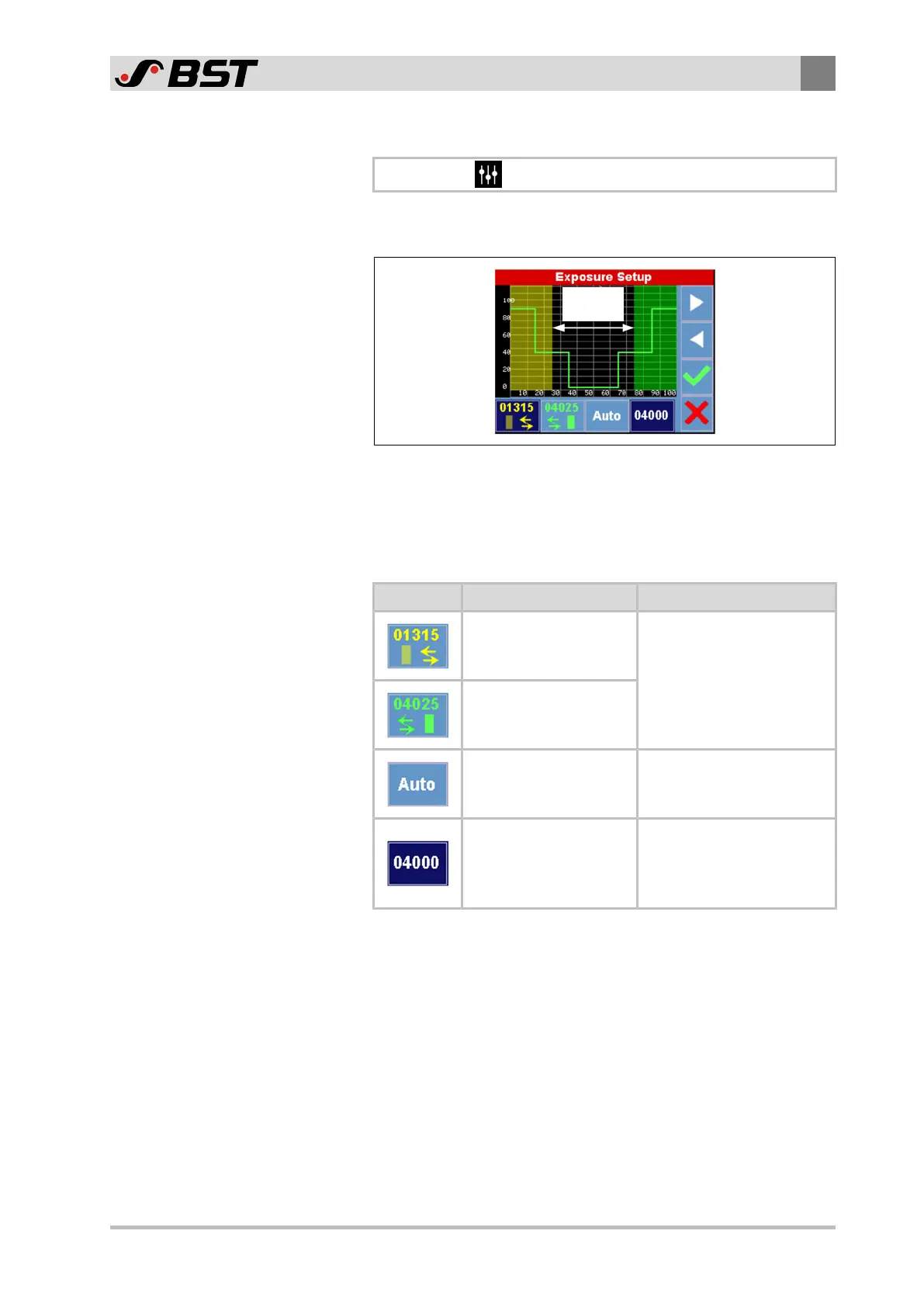

Fig.74: Exposure Setup menu
The menu is used to define the area of the video curve which is
evaluated for the setting of the exposure time.
Function of the buttons
Button Function Description
Defining the left limit of
the evaluation area
(yellow button symbol)
See Defining the Evaluation
Area, page 130
Defining the right limit
of the evaluation area
(green button symbol)
Selecting the exposure
mode (Auto/Fix)
See Selecting the Exposure
Mode, page 131
Setting/displaying
the exposure time,
display in [µs]
(Note: 1,000µs = 1ms)
See Setting the Exposure
Time, page 132
