Operation
9
CCD CAM 100 – Installation and Operating Manual 131/198

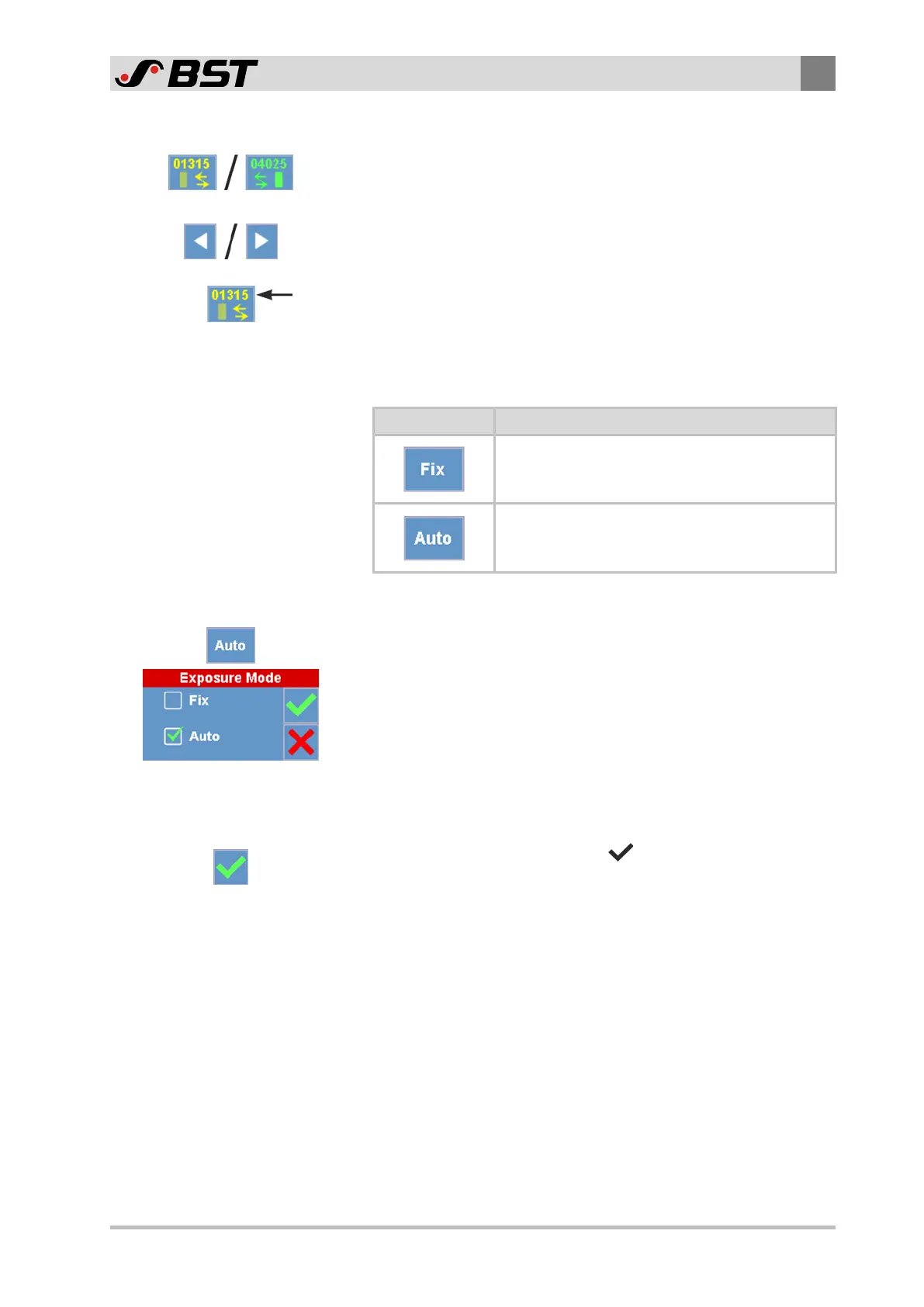

Defining the evaluation area
1. Select the desired limit by pressing the corresponding button.
The button selected is represented dark blue.
2. Move the limit selected to the desired position using the arrow
buttons.
The current position of the limit is displayed in the button
symbol.
9.8.3.2 Selecting the Exposure Mode
You can select between the following exposure modes:
Exposure Mode Description
Manual setting of the exposure time
Automatic adaption of the exposure time
to the existing light conditions
Selecting the exposure mode
1. Press the Auto or Fix button.
The Exposure Mode selection window the appears in the display.
2. Select the desired exposure mode by activating the Fix or Auto
checkbox.
3. Confirm the selection with the button.
The selection window is closed.
The exposure mode (Auto or Fix) selected is displayed in the
button symbol.
