8
Commissioning
74/198 CCD CAM 100 – Installation and Operating Manual
8.3.2 Setting DIL Switch S1
NOTICE
Damage to components when working on live parts.
►
Before opening the housing, switch off the power supply.
1. Disconnect the CCD camera from the power supply.
2. Open the cover of the service opening (see Opening the Service
Opening, page 114). The DIL switch S1 is accessible.
3. Set the DIL switches S1.1 to S1.8 according to the application.
4. Close the cover of the service opening.
5. Switch on the power supply.
The operating system of the CCD camera is restarted.

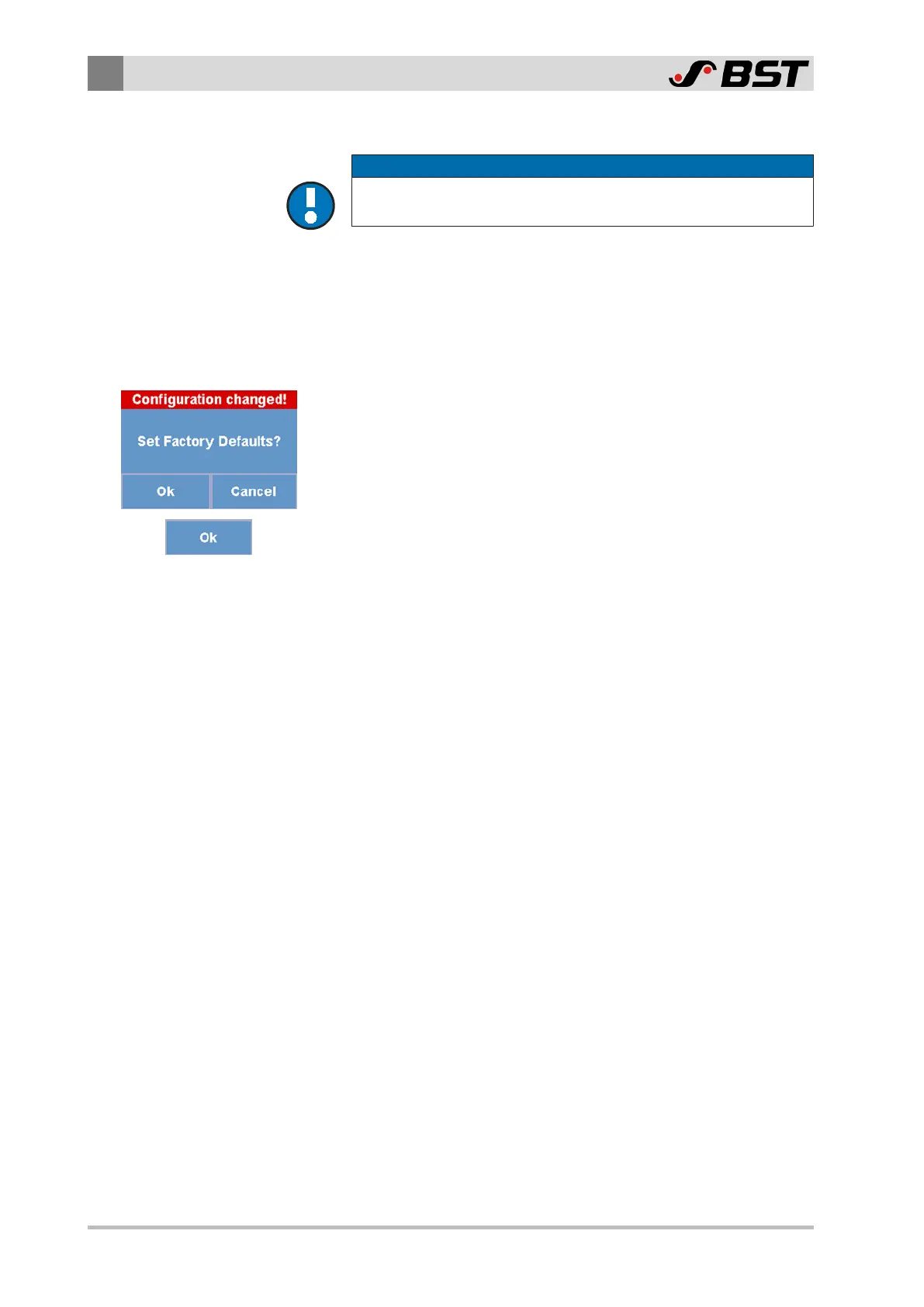

After a few seconds the Configuration changed! safety prompt
appears.
6. Press the Ok button in the window.
The operating system of the CCD camera is restarted.
The changed settings are active.
After a short waiting time, the operating display of the CCD
camera appears in the display.
