11.2.4.4 Light Box Type MLLA
Type designation: MLLA-xxxx-A-XL
xxxx = Light field length [mm]
Application: Reflected light method
variable

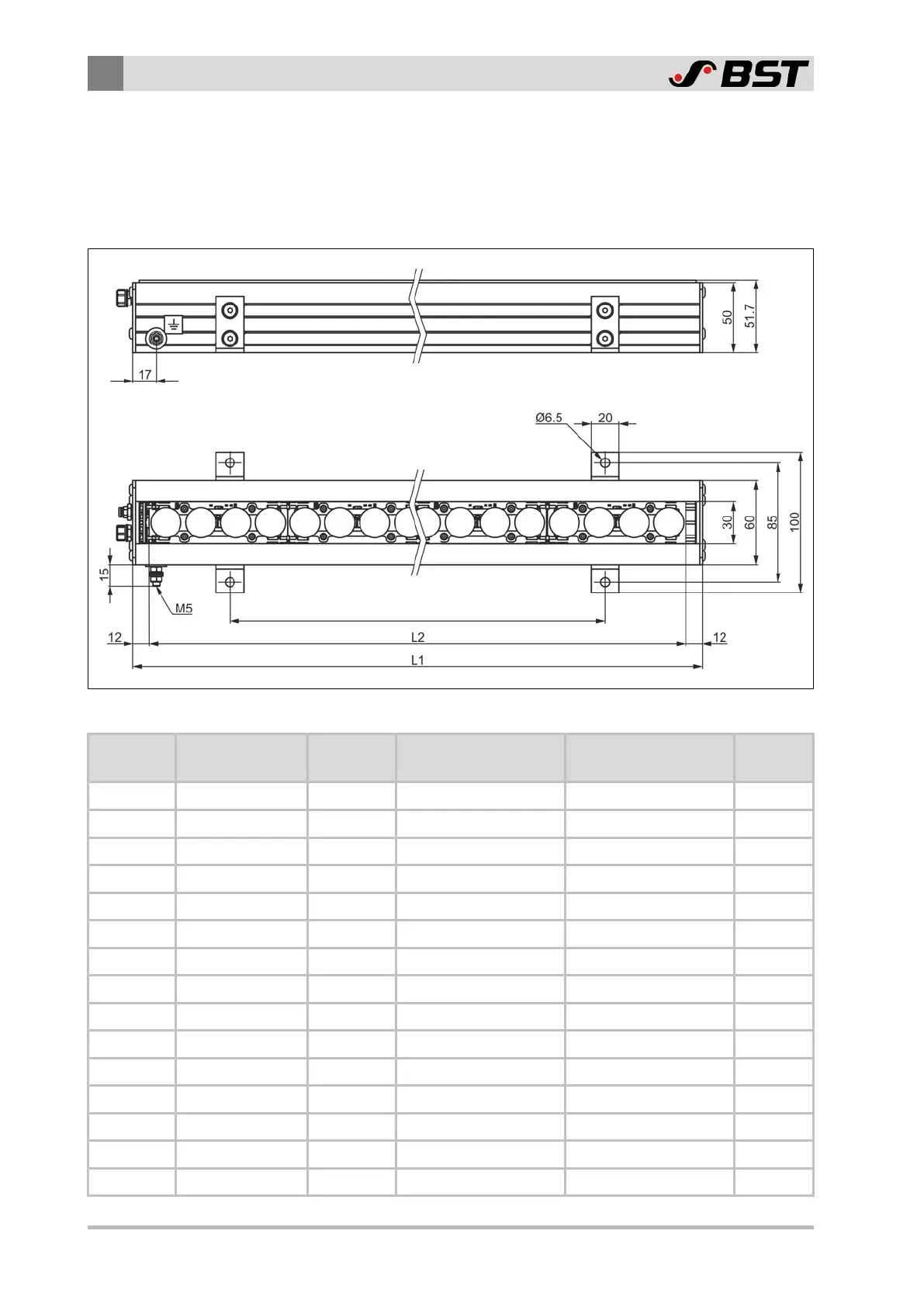

Fig.128: Dimensions light box type MLLA
Order
Number
Light Box Type LED Boards Light Box Length L1
[mm]
Light Field Length L2
[mm]
Current I
[A]
447560 MLLA-0100-A-XL 1 124 100 0.25
441073 MLLA-0200-A-XL 2 224 200 0.50
446748 MLLA-0300-A-XL 3 324 300 0.75
446749 MLLA-0400-A-XL 4 424 400 1.00
446750 MLLA-0500-A-XL 5 524 500 1.25
446751 MLLA-0600-A-XL 6 624 600 1.50
446752 MLLA-0700-A-XL 7 724 700 1.75
446753 MLLA-0800-A-XL 8 824 800 2.00
446754 MLLA-0900-A-XL 9 924 900 2.25
446755 MLLA-1000-A-XL 10 1,024 1,000 2.50
446756 MLLA-1100-A-XL 11 1,124 1,100 2.75
446757 MLLA-1200-A-XL 12 1,224 1,200 3.00
446758 MLLA-1300-A-XL 13 1,324 1,300 3.25
446759 MLLA-1400-A-XL 14 1,424 1,400 3.50
446760 MLLA-1500-A-XL 15 1,524 1,500 3.75
